Pro Comp 4 Inch Stage I Lift Kit with ES9000 Shocks – K3086B

Pro Comp Suspension

Shop Jeep Wrangler JK Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 4-inch stage 1 coil spring lift with ES9000 front and rear shocks
  • Front sway bar links and bump stop extensions
  • Two-door 2007–2018 Jeep Wrangler (JK) trims
  • Max tire size 35×12.50 on 18 to 20-inch wheels, 8 to 9-inch width

Description

Overview

The K3086B is a 4-inch stage 1 coil spring lift with ES9000 shocks for two-door 2007–2018 Jeep Wrangler (JK) models. It is built for the 70th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S and X trims.

Coil springs are fitted at the front and the rear, with front sway bar links and bump stop extensions. ES9000 shocks are fitted at both ends. The kit suits 18 to 20-inch wheels with an 8 to 9-inch width.

Key features

  • 4-inch stage 1 lift
  • Front coil springs and rear coil springs
  • Front sway bar links
  • Bump stop extensions
  • ES9000 front and rear shocks
  • Max tire size 35×12.50

Before you buy

Coil spring lifts raise the body by replacing the stock springs, and on a Wrangler JK that also changes the suspension geometry. A 4-inch stage 1 setup is often paired with larger tires, so the tire size and wheel width should be measured before the kit goes on. Wheel offset decides whether a wider wheel rubs at full lock, and that is worth checking before the tires are mounted.

Shock length matters with any lift, which is why ES9000 units are fitted at both ends of this kit. Brake hoses, bump stops and bushings all move when the ride height changes, so look them over during the install. Re-check the hardware and the alignment after the first drives, since new springs settle.

  • Measure tire rub at full steering lock
  • Inspect brake hoses for tension after install
  • Re-torque fasteners after the first drives

Specifications

Brand Pro Comp Suspension
Part number K3086B
UPC 614901123418
Lift 4 inches, stage 1
Lift height range 3 to 4.99 inches
Suspension type Coil spring kit
Front lift Coil springs
Rear lift Coil springs
Front shocks ES9000
Rear shocks ES9000
Max tire size 35×12.50
Wheel size range 18 to 20 inches
Wheel width range 8 to 9 inches

Vehicle fitment

It fits two-door 2007–2018 Jeep Wrangler (JK) models in the 70th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S and X trims. Confirm fit for your vehicle’s year, model and trim before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Coil spring lifts on the JK change the caster and the driveline angles, so an alignment and a driveline check are needed after the kit is fitted. The 18 to 20-inch wheel size range matters for clearance, so measure the wheel width before the tires are mounted.

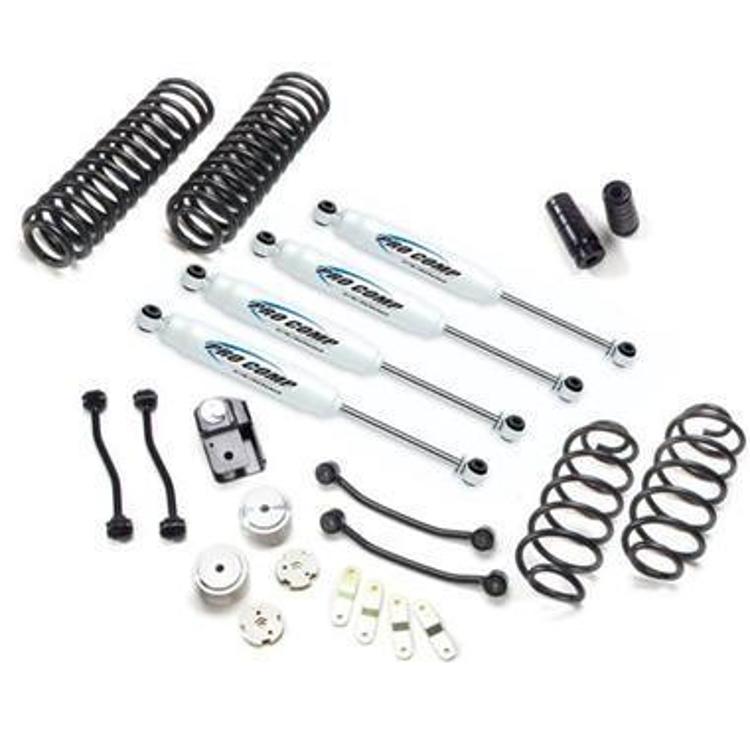

What’s included

The kit includes front and rear coil springs, front sway bar links, bump stop extensions and ES9000 front and rear shocks.

SKU: EXPK3086B Category:

Specification

Shipping weight 101.88 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2007–201870th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K3086B fit a 2012 Jeep Wrangler JK?

Yes. It fits 2007–2018 Jeep Wrangler (JK) models, which includes 2012. Confirm the trim is one of the two-door trims before ordering.

Does the K3086B fit a JK Unlimited?

The kit is built for two-door Wrangler JK models. If you drive a four-door Unlimited, confirm fit for your vehicle's year, model and trim before ordering.

Are shocks included with the K3086B?

Yes. ES9000 front and rear shocks are included with the coil spring lift kit, so separate shocks are not needed for the install.

How do I know when lift springs need replacing?

Sagging springs, uneven ride height from side to side, or a body that sits lower at one corner are the usual signs. Measure ride height at each corner and compare the sides. Replace coil springs in pairs so both sides match.

Should the sway bar links be replaced at the same time?

Usually they are replaced during the install, since this kit includes front sway bar links. Inspect the bushings on the remaining sway bar hardware at the same time.
