Overview

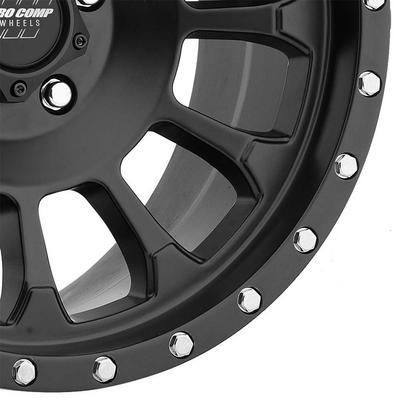

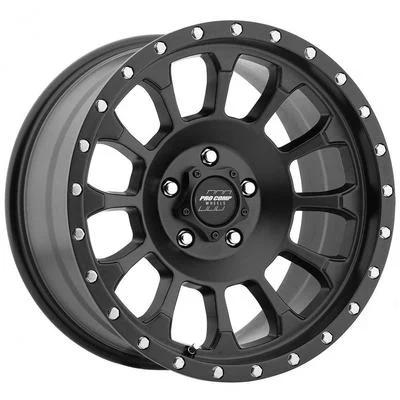

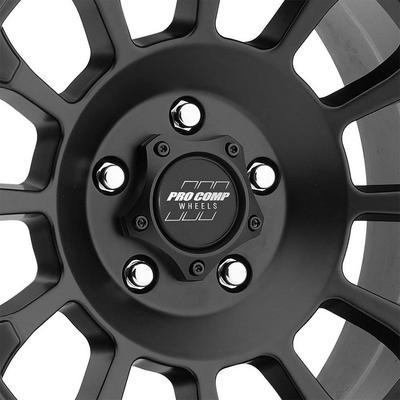

The Pro Comp 34 Series Rockwell 17×8.5 wheel, part number PXA5034-78573, is a 17-inch aluminum spoke wheel with a 5 on 5 bolt pattern. It is finished in satin black, which the series listing calls 34 Series Rockwell satin black.
The 34 Series Rockwell is one of Pro Comp’s spoke designs built with low-pressure cast aluminum. With a center bore of 83, a 0 offset and a 4.75 backspacing, the wheel is sized for a five-lug hub. Pro Comp classes it as universal fit, so it is chosen by hub measurements, not by vehicle name.
Key features
- Low-pressure cast aluminum
- 17-inch diameter, 8.5-inch width
- 5 on 5 bolt pattern
- Center bore 83
- Offset 0, backspacing 4.75
- Satin black spoke finish
Measuring a universal wheel
A universal wheel is chosen by measurement rather than by vehicle name. Start with the hub’s bolt pattern, then check the center bore against the hub’s pilot diameter. If the bore is larger than the pilot, hub-centric rings can fill the gap so the wheel centers on the hub instead of resting only on the lug studs.
Offset and backspacing decide how far the tire sits relative to the hub and the suspension. Compare both with the brake caliper, the control arms and the inner fender before choosing a tire, since a tire wider than the rim can rub at full steering lock. Check the lug seat type too, because a mismatched seat can seat poorly and loosen over time. Taking these readings before ordering saves a return trip.
- Confirm the bolt pattern first
- Check center bore against hub pilot
- Test-fit with the tire mounted
Specifications
| Brand | Pro Comp Alloy Wheels |
|---|---|
| Part number | PXA5034-78573 |
| Wheel diameter | 17 inches |
| Wheel width | 8.5 inches |
| Bolt pattern | 5 on 5 |
| Center bore | 83 |
| Offset | 0 |
| Backspacing | 4.75 |
| Style | Spoke |
| Finish | Satin black |
| Construction | Aluminum |
| Series | 34 Series Rockwell |
Vehicle fitment
This wheel is universal fit and is not matched to a specific vehicle. The 5 on 5 pattern, 83 center bore and 17-inch size decide whether it works on your hub.
Confirm your vehicle’s year, model and trim before ordering.
The satin black finish is part of the 34 Series Rockwell design and gives the spoke face a low-sheen look. The 17-inch diameter and 8.5-inch width are fixed in the specification, so a tire sized for those dimensions is the usual match for this wheel. Measure the hub and the caliper before you commit to a tire size.
What’s included
One 17×8.5 satin black wheel. Check the hardware needs, including lug nuts and center caps, before mounting.
