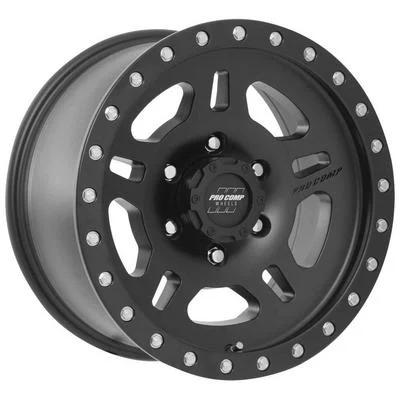

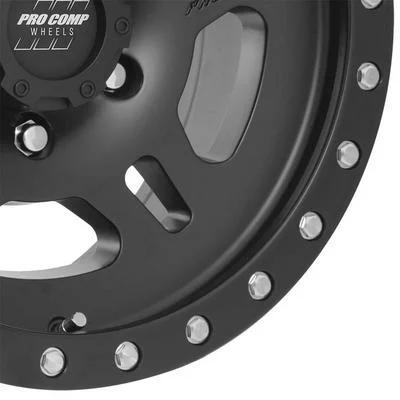

Pro Comp 29 Series La Paz, 17x8.5 Wheel with 6 on 5.5 Bolt Pattern – Satin Black – 5029-78583

Pro Comp Alloy Wheels

Shop Pro Comp Alloy Wheels 17x8.5 6x5.5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 17×8.5 aluminum windowed wheel in satin black, 29 Series La Paz
  • 6 on 5.5 bolt pattern, center bore 83
  • Offset 0; backspacing 4.75
  • Part number PXA5029-78583

Description

Overview

The Pro Comp PXA5029-78583 is a 17×8.5 aluminum wheel from the 29 Series La Paz line, with a windowed face and satin black finish. It uses a 6 on 5.5 bolt pattern with a center bore of 83, an offset of 0 and a backspacing of 4.75.

Of the La Paz 17-inch wheels, this is the 6 on 5.5 option with an 83 bore, so the bore is worth checking against the hub. Pro Comp describes its alloy wheels as low-pressure cast, and the windowed face is the design feature of the series.

The 6 on 5.5 pattern is the first measurement to match, with the 83 center bore and 0 offset following. The 83 bore is smaller than the 108 bore used by many 6 on 5.5 wheels, so the hub bore is the number to verify before buying.

The 4.75 backspacing and 8.5-inch width should be checked against the inner clearance and tire size before mounting.

Key features

  • Windowed design
  • Satin black aluminum finish
  • 6 on 5.5 bolt pattern
  • Center bore 83
  • Offset 0

Hub bore and centering

The center bore is the part of the wheel that sits over the hub, and a bore that does not match the hub can cause vibration even when the bolt pattern is right. Many 6 on 5.5 wheels use a larger bore, so a smaller bore like this one should be measured against the hub before ordering. Lug nuts clamp the wheel to the hub, but they do not center it.

If the bore is larger than the hub, hub-centric rings can fill the gap. Make sure any ring is sized for the measured bore and hub, and seats flush against the hub face. Clean the mounting surfaces before installation, and recheck lug torque after the first drive. Tire balance should also be checked after mounting.

  • Measure the hub before ordering
  • Use hub rings only when sized to fit
  • Recheck lug torque after the first drive

Specifications

Brand Pro Comp Alloy Wheels
Part number PXA5029-78583
Diameter 17 inches
Width 8.5 inches
Bolt pattern 6 on 5.5
Center bore 83
Offset 0
Backspacing 4.75
Style Windowed
Finish Satin black
Construction Aluminum
Series 29 Series La Paz

Vehicle fitment

Pro Comp’s fit field for this wheel is universal. A 6 on 5.5 wheel with an 83 bore needs a hub that matches both numbers, so check them before ordering.

Choose tires that suit a 17-inch rim that is 8.5 inches wide. Confirm your vehicle’s year, model and trim before ordering.

What’s included

One wheel. Check the package contents for a center cap before installing.

SKU: PXA5029-78583 Categories: ,

Questions & Answers

Will the PXA5029-78583 fit a 6 on 5.5 truck?

It has a 6 on 5.5 bolt pattern, so it fits trucks with that pattern. Check the 83 center bore against your hub before ordering.

What offset does this wheel have?

The offset is 0, and the backspacing is 4.75. The wheel is 17 inches in diameter and 8.5 inches wide.

Is a center cap included?

Check the box for a center cap before installing. Confirm the 6 on 5.5 pattern and 83 center bore on the vehicle first.

Are hub rings a good idea for a 6 on 5.5 wheel?

They can be, when the wheel bore is larger than the hub. Rings fill the gap so the wheel centers on the hub. Choose rings sized to the measured bore and hub, and confirm the fit before mounting.
