Overview

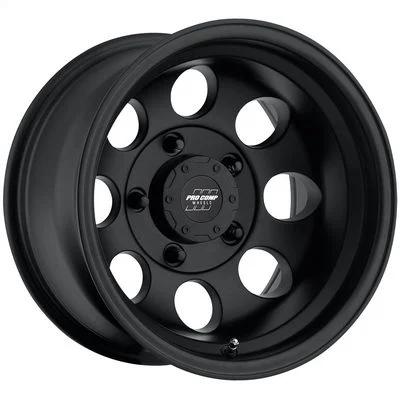

The Pro Comp PXA7069-5165 is a 15×10 flat black aluminum wheel from the Pro Comp 69 Series Vintage line, with a Holes style face and a 5 on 4.5 bolt pattern. It is sold as one wheel with a center bore of 83 and a deep -47 offset.
Pro Comp describes its aluminum alloys as made with low-pressure casting and as combining head-turning style with light weight. The brand says these wheels include a high offset for brake clearance on performance trucks and sport utility vehicles, and this 10-inch-wide wheel has a backspacing of 3.65.
Key features
- Low-pressure cast aluminum construction

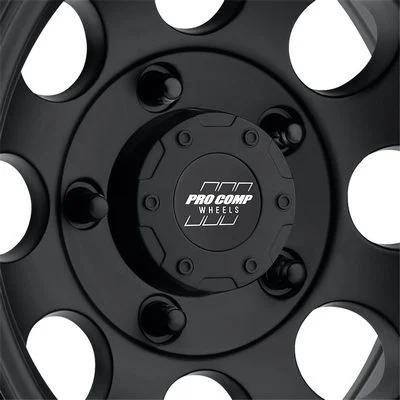

- Holes style face
- 15-inch diameter and 10-inch width
- 5 on 4.5 bolt pattern
- Center bore of 83
- Offset -47 with 3.65 backspacing
Deep offset and tire choice
A wheel with a deep negative offset pushes the tire outward, which changes how the tire clears the suspension arms, tie rod and brake parts. On a 10-inch-wide rim, tire sidewall and width decide how far the tread reaches past the fender. Many owners run a narrower tire to reduce rub, while others fit a larger tire and check that it still sits under the fender at full lock.
Before choosing a tire, measure the fender opening and check how far the tire sits at full lock. Wheel bearings and ball joints take more load when the tire sits farther out, so inspect those parts on the first few drives. Re-check clearance after any change to tire size, ride height or steering components.
- Measure the fender opening before buying tires
- Check tie rod and ball joint for wear
- Re-test clearance after lift or tire changes
Specifications
| Brand | Pro Comp Alloy Wheels |
|---|---|
| Part number | PXA7069-5165 |
| Series | 69 Series Vintage (Classic) |
| Style | Holes |
| Construction | Aluminum |
| Finish | Flat black |
| Diameter | 15 inches |
| Width | 10 inches |
| Bolt pattern | 5 on 4.5 |
| Center bore | 83 |
| Offset | -47 |
| Backspacing | 3.65 |
Vehicle fitment
No vehicle is named for this wheel. Universal fit on the specifications does not identify a model. The -47 offset moves the rim far outboard, so the 5 on 4.5 hub and clearance at the caliper and fender both need checking before the wheel is ordered.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Only a five-lug hub measuring 4.5 across the bolt holes accepts this wheel. The deep offset changes where the tire sits, so a test fit with the tire mounted is the reliable way to confirm clearance. A 10-inch-wide rim at -47 offset sits far outboard, so the tire position and brake caliper clearance deserve a careful check. The 83 center bore must seat on the hub pilot, and the five lug holes on a 4.5 spacing must line up exactly. Measure inner fender and steering room with the tire fitted, and recheck after any change to tire size or suspension height. The 3.65 backspacing sets how much room the inner lip has behind the mounting face, which is why caliper clearance is the first thing to test.
What’s included
One 15×10 aluminum wheel. Check the package contents against your installation before starting.
