Pro Comp 3.5″ Lift Kit with PRO-VST 2.5″ Coilovers and Shocks with Rear Coil Spacers and Upper Control Arms – K5101BXU

Pro Comp Suspension

Shop Toyota 4Runner Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 3 to 3.5-inch lift with PRO-VST 2.5-inch coilovers and PRO-VST shocks, front and rear
  • Coil springs for the rear lift
  • Built for 33-inch tires
  • Fits 2003-2024 Toyota 4Runner and 2007-2014 FJ Cruiser

Description

Overview

The Pro Comp 3.5-inch Lift Kit with PRO-VST 2.5-inch Coilovers and Shocks with Rear Coil Spacers and Upper Control Arms, part number K5101BXU (EXPK5101BXU), is a lift for the Toyota 4Runner and FJ Cruiser. It fits 2003 to 2024 4Runner models and 2007 to 2014 FJ Cruiser models, the same span as the K5098BXU kit.

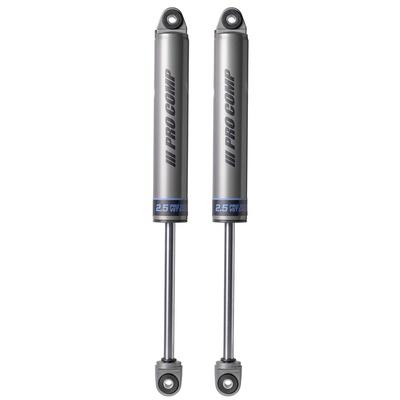

The kit has PRO-VST front and rear shocks, which are included, along with 2.5-inch PRO-VST coilovers and upper control arms. The rear lift uses coil springs. Confirm the rear parts before installing.

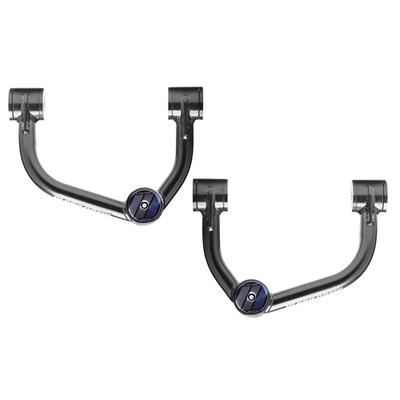

The PRO-VST system is tuned for 33-inch tires on 17-inch wheels. The lift height range is 0 to 3.5 inches, and the system improves travel and rebound while keeping geometry in line for larger tires. The upper control arms are American-made Pro Series parts with high-angle ball joints.

Key features

  • 3 to 3.5-inch lift
  • PRO-VST front and rear shocks, included
  • 2.5-inch PRO-VST coilovers
  • Coil springs serve as the rear lift method
  • Upper control arms.
  • Tuned for 33-inch tires on 17-inch wheels

Alignment and driveline after lifting

A suspension lift changes the angles that the steering, axles and driveshafts were designed around. A higher ride height and new control geometry can shift toe and camber, so an alignment soon after installation helps tire wear and steering feel. Driveline angles should also be checked, since a steeper joint angle can cause vibration at speed.

Lifts often lead to other parts being revisited, such as brake lines, sway bar links and steering components that were set for the stock height. Check that nothing is stretched or rubbing at full compression and full droop. A short test drive at low speed, followed by a look at the hardware, is a sensible first step after the install.

  • Re-torque fasteners after the first few drives
  • Watch for rubbing at full steering lock
  • Recheck alignment if tire wear looks uneven

Specifications

Brand Pro Comp Suspension
Part number EXPK5101BXU (title K5101BXU)
Suspension type Lift kit
Lift 3 to 3.5 inches
Lift height range 0 to 3.5 inches
Shocks PRO-VST, front and rear, included
Coilovers 2.5-inch PRO-VST
Rear lift method Coil springs
Tire size 33 inch
Fitment Direct fit

Vehicle fitment

It fits the 2003-2024 Toyota 4Runner and the 2007-2014 Toyota FJ Cruiser.

The FJ Cruiser list stops at 2014, and 4Runner years after 2022 are not covered. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The kit is a direct fit. Changes to ride height and suspension geometry mean the alignment should be checked and the driveline angles measured after installation.

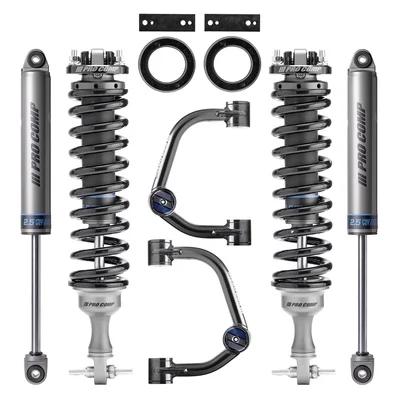

What’s included

The kit includes PRO-VST front and rear shocks, 2.5-inch PRO-VST coilovers, and rear lift parts. Confirm the rear components and hardware contents before installing the kit.

SKU: EXPK5101BXU Categories: ,

Fitment

VehicleYearsTrims
Toyota 4Runner2003–2024Limited, Nightshade, SR5, SR5 Premium, Sport, TRD Off-Road, TRD Off-Road Premium, TRD Sport, Trail, Venture
Toyota FJ Cruiser2007–2014Base, TRD Special Edition, Trail Teams Special Edition

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K5101BXU use rear coil springs or coil spacers?

The rear lift uses coil springs. Confirm which rear parts ship with the kit before installing it, including whether rear coil spacers are part of your setup.

Does the K5101BXU fit a 2014 FJ Cruiser?

Yes. The kit fits the 2007 to 2014 Toyota FJ Cruiser, so a 2014 model is in range. Years after 2014 are not covered for the FJ Cruiser.

Are the shocks included with the K5101BXU?

Yes. The kit includes PRO-VST front and rear shocks along with 2.5-inch PRO-VST coilovers, which together form the front and rear suspension setup.

What tire size is this lift designed for?

The kit is designed for 33-inch tires, and Pro Comp tunes the PRO-VST system for 17-inch wheels. The lift height range is 0 to 3.5 inches.

How often should the lift hardware be checked?

Check the bolts and brackets after the first few drives, then at regular intervals, especially after trail use. Loose hardware and worn bushings are easier to fix early than after a component has failed.

Do the shocks need attention after a coil-over change?

Yes. Shocks matched to the new ride height and spring rate should be inspected for leaks and smooth travel. Worn shocks can make a lift feel unstable even when the rest of the suspension is sound.
