Pro Comp Stage III 4-Link 8″ Suspension Kit with PRO-M Shocks – K4214M

Pro Comp Suspension

Shop Ford F-250 Super Duty Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Stage III 4-link 8-inch kit with PRO-M shocks for Ford Super Duty
  • Fits 2017–2022 F-250 and 2017–2018, 2020–2021 F-350
  • Lift of 8 inches and up with 40-inch tire clearance
  • PRO-M front and rear shocks included
  • Block and U-bolt rear lift component

Description

Overview

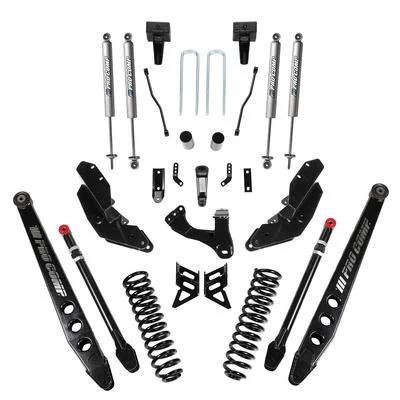

The Pro Comp K4214M is a Stage III 8-inch 4-link suspension kit with PRO-M shocks for Ford Super Duty trucks. It provides up to 8 inches of lift with a lift height range of 8 inches and up, and it is designed for 40-inch tires. It fits the 2017–2022 Ford F-250 Super Duty and the 2017–2018 and 2020–2021 Ford F-350 Super Duty.

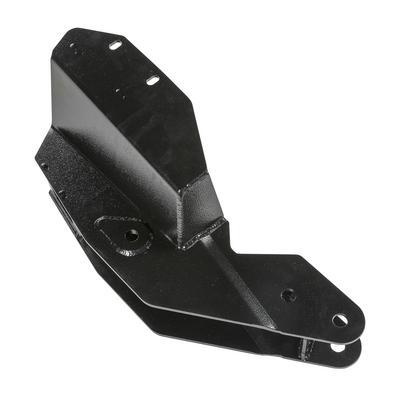

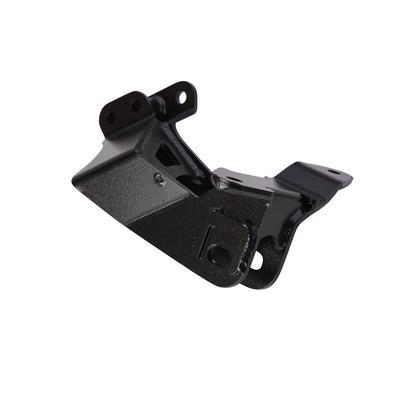

The kit uses extended-length control arms in a 4-link arrangement, with brackets that Pro Comp says keep the roll center in place and limit caster and pinion angle change. The upper control arms are tubular and can be adjusted on the vehicle for caster, and the lower arms are custom-stamped steel.

PRO-M shocks are included at the front and rear, and the rear lift uses a block and spacer method with a block and U-bolt component. The lower arms clear 40-inch tires at full steer.

Key features

  • Extended-length control arms in 4-link geometry

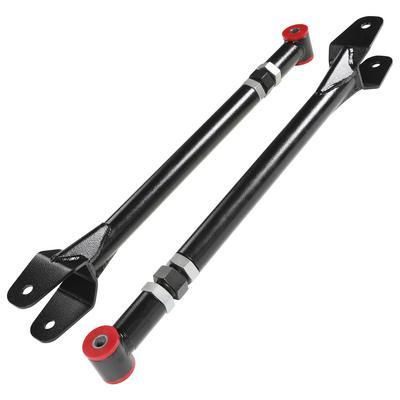

  • Tubular upper control arms adjustable for caster
  • Transfer case crossmember between the brackets

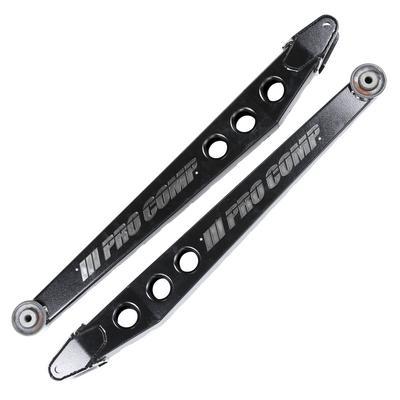

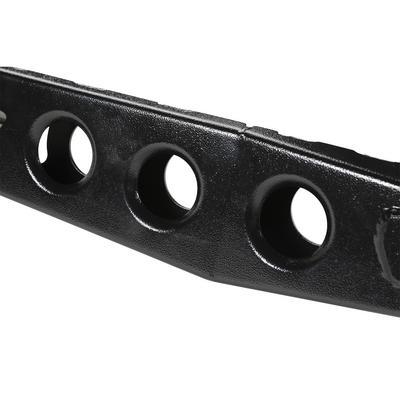

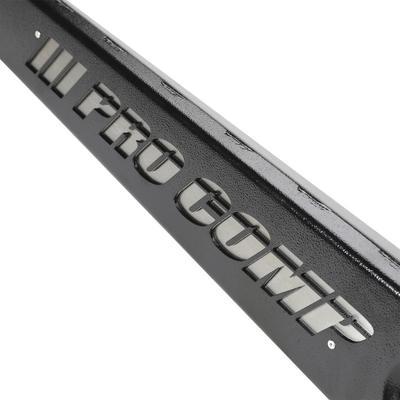

  • Custom-stamped steel lower arms

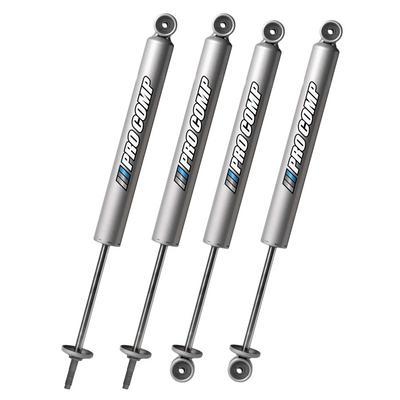

  • PRO-M front and rear shocks included

Shock packages and tire fit

Shocks have to match the height and tire size a truck runs, so the factory-installed PRO-M units should be checked against the final setup rather than assumed to suit every truck. Shock length, mounting eye style and travel all affect how the kit rides. Discuss any changes with the installer before the truck leaves the shop.

Larger tires put more load on the hubs, steering and driveline, so expect more frequent inspection. Check the steering centering after the first few drives and look for rubbing at full steer. Keep records of tire pressure and rotation so wear patterns are easy to read later. Carry a basic toolkit with a torque wrench and a spare set of nuts for the first few weeks.

Specifications

Brand Pro Comp Suspension
Part number K4214M
Suspension type 4-link suspension kit
Kit Stage III, 8 inches
Shock series PRO-M
Front shocks PRO-M
Rear shocks PRO-M
Shocks included Yes
Rear lift method Block and spacer

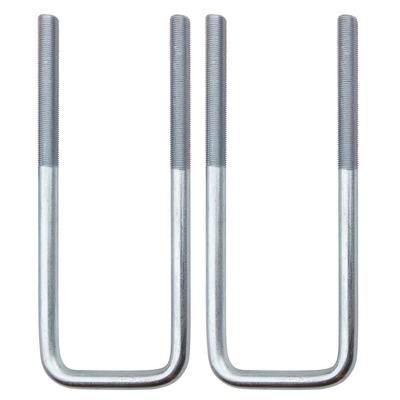

Rear lift component Block and U-bolt
Lift height range 8 in and up
Tire size 40 in

Vehicle fitment

It fits the 2017–2022 Ford F-250 Super Duty in the King Ranch, Lariat, Limited, Platinum, XL and XLT trims, and the 2017–2018 and 2020–2021 Ford F-350 Super Duty in the same trims.

The 2019 F-350 Super Duty and models from 2023 onward are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

At 8 inches of lift and a 40-inch tire size, this kit needs a professional alignment, a driveline angle check and a clearance check at full steer. Set the caster on the upper control arms during the alignment.

What’s included

PRO-M front and rear shocks, included with the kit.

Not included: tires and wheels.

SKU: EXPK4214M Categories: ,

Fitment

VehicleYearsTrims
Ford F-250 Super Duty2017–2022King Ranch, Lariat, Limited, Platinum, XL, XLT
Ford F-350 Super Duty2017–2018, 2020–2021King Ranch, Lariat, Limited, Platinum, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K4214M include shocks?

Yes. The specifications list PRO-M front and rear shocks as included, so separate shocks are not needed. Confirm the shock package on the packing list before installation.

Does the K4214M fit a 2022 Ford F-250 Super Duty?

Yes. It fits the 2017–2022 F-250 Super Duty in several trims, so a 2022 model year is covered. Confirm your trim is covered before ordering.

What tire size does the K4214M use?

It is designed for 40-inch tires, and the lower arms clear 40-inch tires at full steer. Confirm the fit on your truck before ordering.

Do larger tires change how the steering feels?

Yes, usually. Bigger tires add weight and change steering effort, and they can rub without proper clearance. Check steering centering and tire rub after the first drives, and recheck stop-to-stop travel once the tires are mounted.
