Pro Comp 6 Inch Lift Kit with ES9000 Shocks – K2084B

Pro Comp Suspension

Shop Ram 1500 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 6-inch knuckle lift with CNC machined knuckles and redesigned crossmembers
  • Rear ES9000 shocks and extended stainless braided brake lines
  • Driveline spacer and extended sway bar links
  • Part number K2084B

Description

Overview

The Pro Comp 6 Inch Lift Kit with ES9000 Shocks, part number K2084B, is a 6-inch knuckle lift for the 2012-2013 Ram 1500 in 4WD form. It is a 6-inch stage 1 lift with a lift height range of 5 to 6.99 inches.

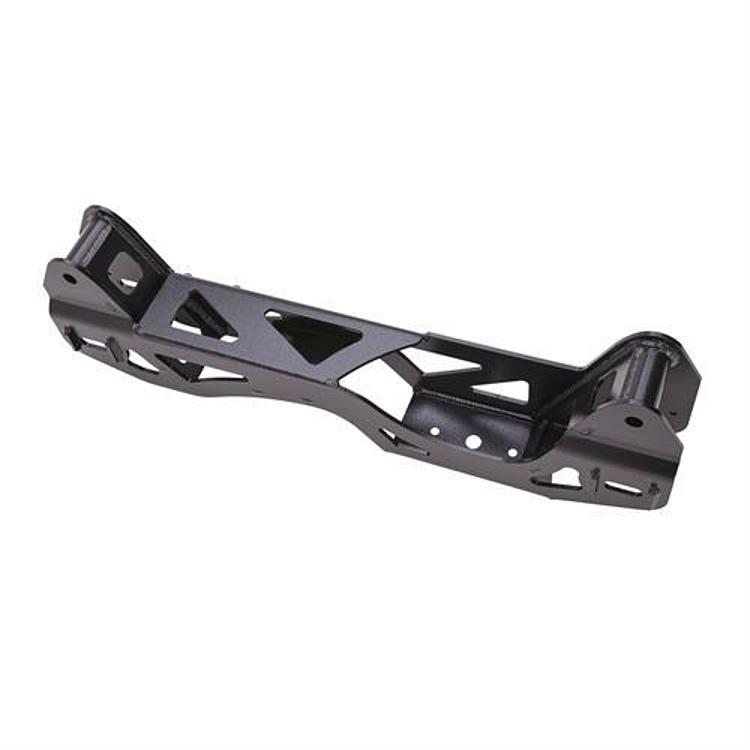

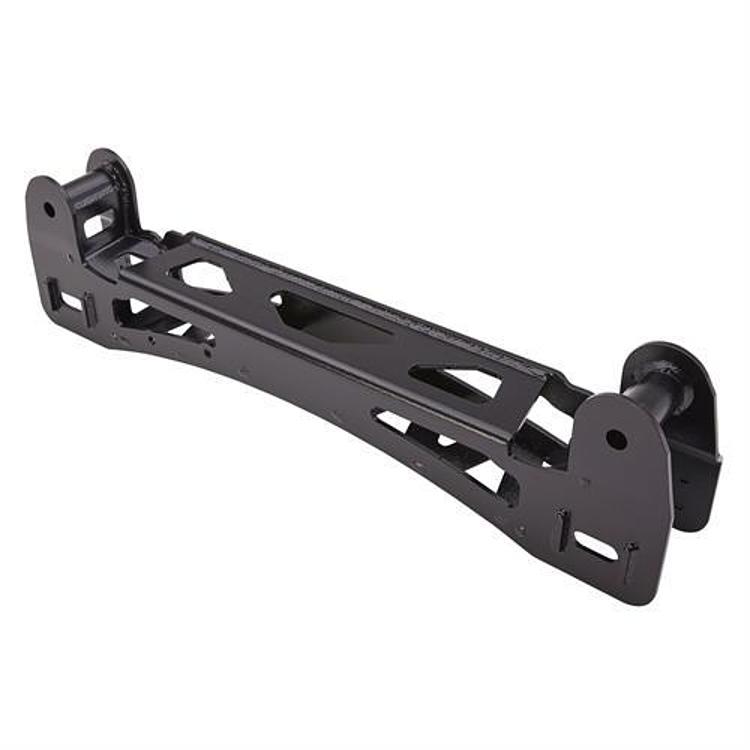

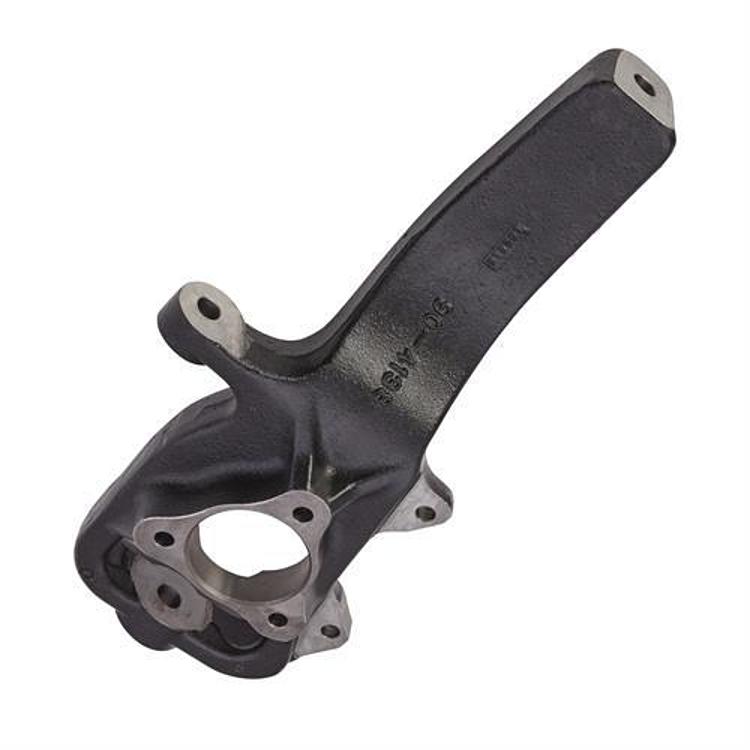

The kit uses CNC machined knuckles and redesigned crossmembers, which are designed for minimal toe change during suspension travel. The system is designed to work with the factory electronic stability program. The rear lift is made with spacers, and the front shocks are reused from the truck while ES9000 shocks are fitted at the rear.

Key features

  • 6-inch stage 1 knuckle lift
  • CNC machined knuckles
  • Redesigned crossmembers
  • Crossmember drop brackets
  • Extended sway bar links

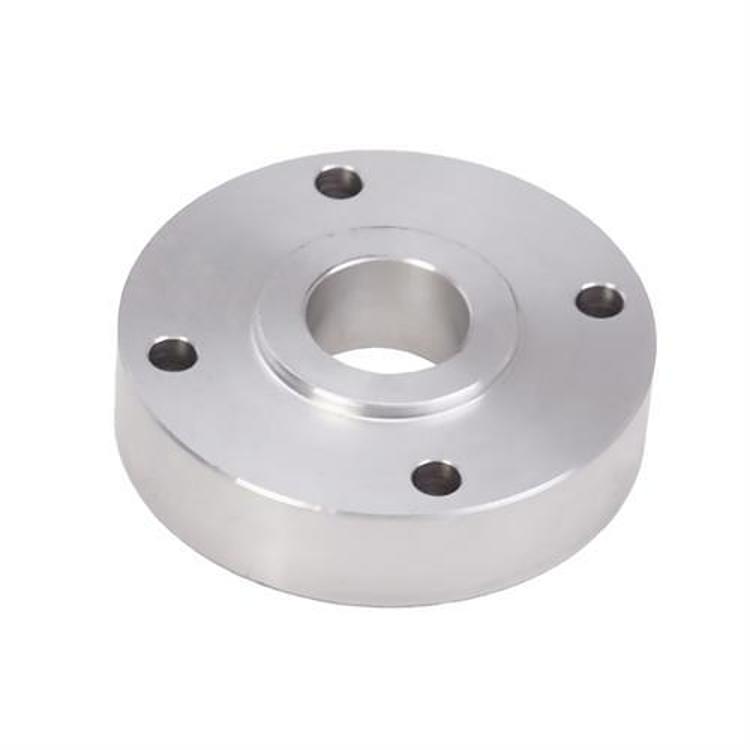

  • Driveline spacer
  • Stainless steel braided brake lines
  • Rear ES9000 shocks

Knuckle lift geometry

A knuckle lift replaces the front spindle geometry instead of raising the truck with spacers, so steering and driveline are affected in a different way than with a coil or block lift. Toe, camber and caster should be checked against the new knuckles, and the tie rod and steering linkage should be inspected for play.

Off-road use puts extra stress on crossmember bolts, knuckle fasteners and sway bar link ends. After rough trails, look for loosened hardware, cracked bushings and fluid leaks from the braided lines. Keep a torque wrench and the installation sequence handy for follow-up checks.

  • Recheck crossmember bolts after the first off-road trip
  • Inspect braided brake lines for chafing near the knuckle
  • Look for uneven tire wear that suggests a toe issue

Specifications

Brand Pro Comp Suspension
Part number K2084B
UPC 70000676689
Lift height 6 inches, stage 1
Lift height range 5 to 6.99 inches
Suspension type Knuckle
Steering correction Knuckles
Rear lift Spacers
Rear shocks ES9000
Front shocks Reuse OEM
Finish Black
Drivetrain 4WD

Vehicle fitment

It fits the 2012 and 2013 Ram 1500 in 4WD form. Confirm the trim levels of your truck before ordering.

Two-wheel-drive Ram 1500 trucks and model years outside 2012-2013 are not covered by this kit. Check the year, model and trim against your vehicle before ordering.

Installation notes

New knuckles and redesigned crossmembers replace factory front components, so have the alignment and driveline angles checked after installation. The system is designed to work with factory stability control.

What’s included

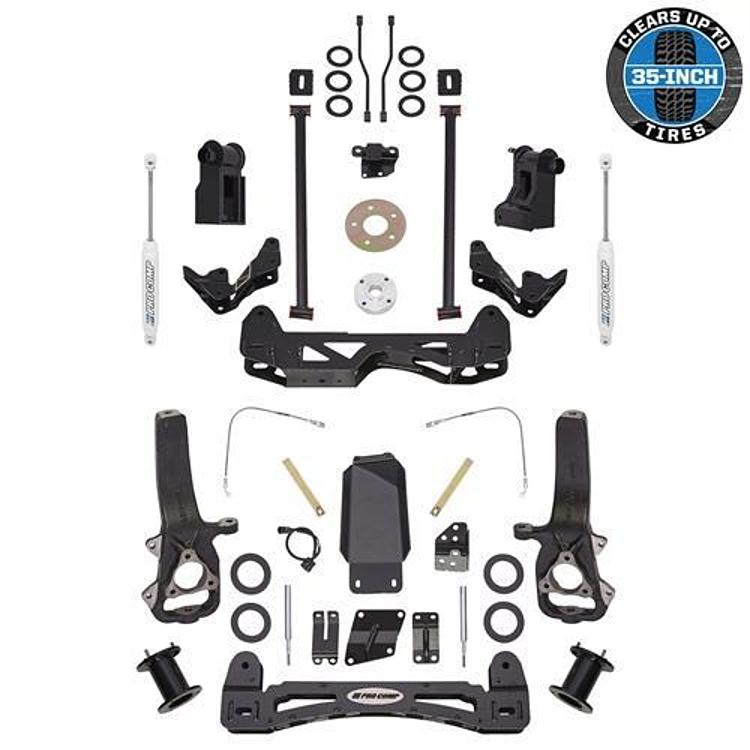

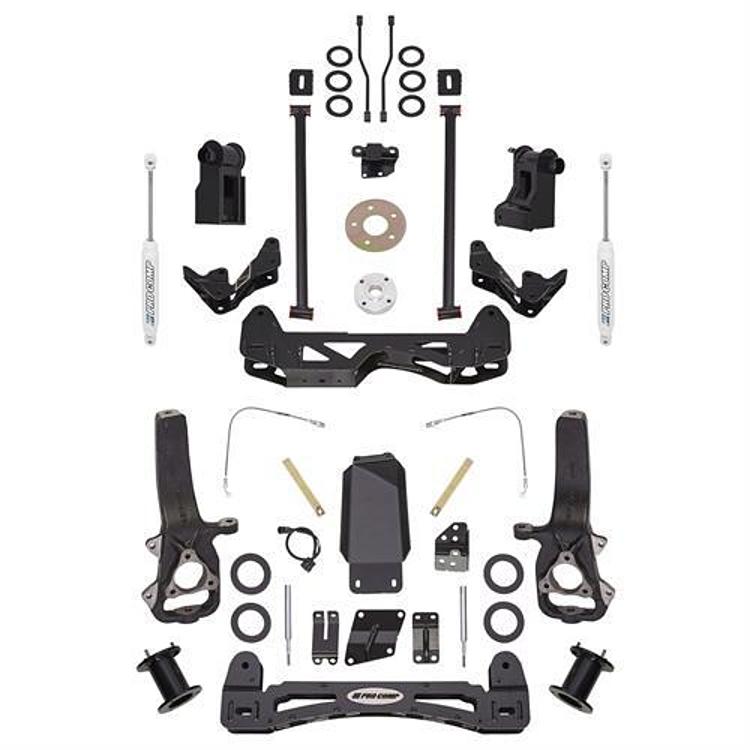

The kit includes CNC machined knuckles, redesigned crossmembers, crossmember drop brackets, extended sway bar links, a driveline spacer, stainless steel braided brake lines, rear spacers, and rear ES9000 shocks.

SKU: EXPK2084B Category:

Specification

Shipping weight 305.90 lbs
Package dimensions 48.00 × 48.00 × 48.00 in
brands

Fitment

VehicleYearsTrims
Ram 1500 likely fits2012–2013All

Vehicles marked "likely fits" are inferred from the product description rather than a manufacturer fitment list. Please confirm fitment with the manufacturer before ordering.

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K2084B fit a 2013 Ram 1500?

Yes. The kit fits the 2012 and 2013 Ram 1500 in 4WD form, so a 2013 4WD truck is covered. Confirm your vehicle's year, model and trim before ordering.

Is the K2084B for 4WD trucks only?

Yes, it is for 4WD trucks. Two-wheel-drive Ram 1500 models are not covered by this kit, so confirm the drivetrain of your truck before ordering.

Does the K2084B work with factory stability control?

Yes. The system is designed to work with the factory electronic stability program, so the system is intended to keep working after installation. Have the alignment and driveline angles checked after the work is done.

How should a knuckle lift be inspected over time?

Check the knuckle bolts, control arm bushings and sway bar link ends at regular service intervals and after rough off-road use. Look for play in the steering, uneven tire wear or squeaks at the crossmembers, since those are early signs that a fastener needs tightening or a bushing needs replacing.
