Pro Comp 4 Inch Lift Kit with ES9000 Shocks – K2091B

Pro Comp Suspension

Shop Ram 3500 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 4-inch stage 2 radius arm lift for Ram 3500 trucks
  • Coil springs with replacement radius arms at the front
  • Pitman arm steering correction and ES9000 shocks
  • Fits 2013-2018 Ram 3500 trucks

Description

Overview

The Pro Comp 4 Inch Lift Kit with ES9000 Shocks, part number K2091B, is a 4-inch stage 2 radius arm lift for 2013-2018 Ram 3500 trucks. The front uses coil springs with replacement radius arms, and the rear uses lift blocks and U-bolts.

A pitman arm provides steering correction, and the kit includes front sway bar links, bump stop extensions and brake line extension brackets. ES9000 shocks are included with the kit. Confirm the shock setup before installing. The lift height range is 3 to 4.99 inches.

Key features

  • 4-inch stage 2 lift
  • Radius arm suspension type
  • Coil springs with replacement radius arms
  • Pitman arm steering correction
  • Front sway bar links and bump stop extensions
  • Brake line extension brackets
  • Rear lift blocks and U-bolts

Stage 2 radius arm lifts

Stage 2 lifts usually involve more parts than a basic lift, including replacement radius arms and related hardware. The additional components mean more joints to inspect and more geometry to set, so installation takes longer and benefits from a careful check of every bolt. A stage 2 package makes the most sense when the truck already uses matching shock and steering components.

Replacement radius arms should match the rest of the front end, so avoid mixing them with worn or incompatible arms from another kit. Keep an eye on the coil springs for sag over the first few months, and recheck torque on the arm mounts. A reliable alignment after installation reduces tire wear and keeps the truck tracking straight on the highway.

Specifications

Brand Pro Comp Suspension
Part number K2091B
UPC 700006823741
Lift height 4 inches, stage 2
Lift height range 3 to 4.99 inches
Suspension type Radius arm or radius arm brackets
Front lift Coil springs and replacement radius arms
Steering correction Pitman arm
Rear lift Lift blocks and U-bolts
Shocks ES9000, included
Fitment Direct fit

Vehicle fitment

Fits the 2013-2018 Ram 3500 in the Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Limited, Lone Star, SLT, ST and Tradesman versions.

Ram 2500 and 1500 trucks, and 2012 and earlier or 2019 and later Ram 3500 models, are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Replacement radius arms change alignment and steering geometry, so have the alignment and steering checked after installation.

What’s included

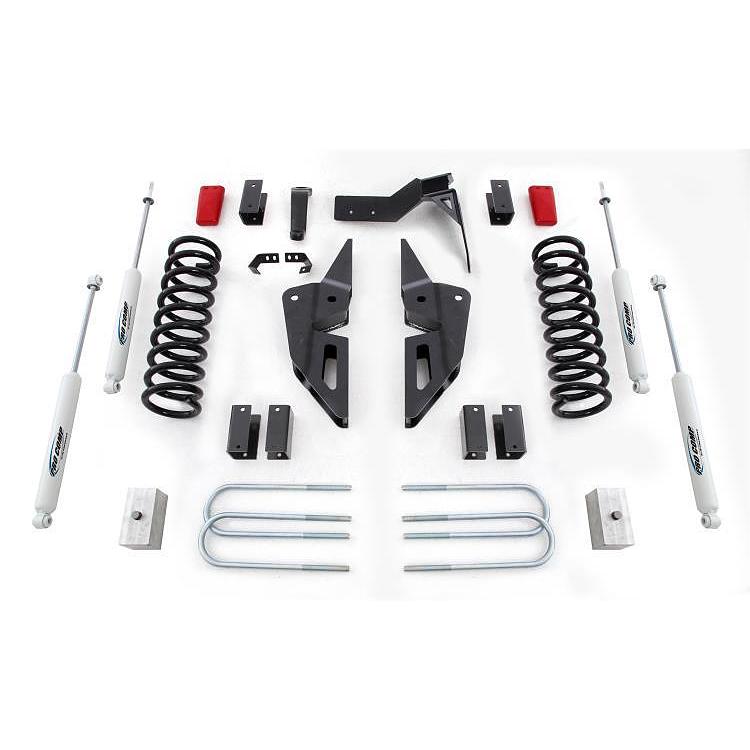

Front coil springs, replacement radius arms, front sway bar links, bump stop extensions, a pitman arm steering correction, brake line extension brackets and rear lift blocks with U-bolts are supplied, with ES9000 shocks included.

SKU: EXPK2091B Category:

Specification

Shipping weight 242.30 lbs
Package dimensions 48.00 × 48.00 × 48.00 in
brands

Fitment

VehicleYearsTrims
Ram 35002013–2018Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Limited, Lone Star, SLT, ST, Tradesman

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Is the K2091B a stage 1 or stage 2 kit?

It is a 4-inch stage 2 kit. The stage 2 designation applies to this radius arm package with replacement radius arms at the front.

Will the K2091B fit a 2016 Ram 3500?

Yes. 2016 falls within the 2013-2018 Ram 3500 range. Confirm your truck's trim matches one of the covered versions before ordering.

Does the K2091B need a steering correction?

Yes. A pitman arm provides the steering correction. Front sway bar links and bump stop extensions come with the kit.

Do replacement radius arms need an alignment?

Yes. Replacement radius arms change the front geometry, so the alignment should be set after installation. Check the arm mounts for proper torque and confirm the steering tracks straight afterward.
