Pro Comp 6″ Lift Kit with PRO-X Shocks – K5080T

Pro Comp Suspension

Shop Toyota Tacoma Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 6-inch stage 1 lift for 2012–2015 Toyota Tacoma Base, Pre Runner, TRD Pro and X-Runner models

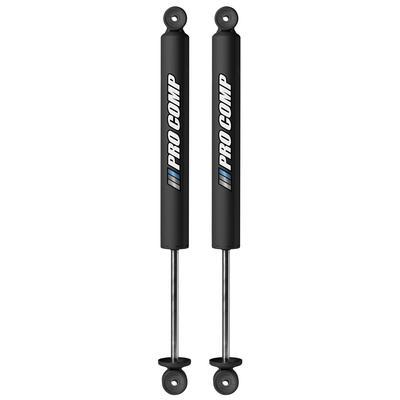

  • PRO-X front and rear shocks, included
  • Block and U-bolt rear lift with add-a-leaf hardware; lift height range 6–7 inches
  • Fits the TRD Pro version of the 2012–2015 Tacoma

Description

Overview

The Pro Comp K5080T is a 6-inch stage 1 suspension lift for the 2012–2015 Toyota Tacoma. PRO-X front and rear shocks are part of the kit, and the lift height range is 6 to 7 inches.

The rear uses a block/spacer method with block and U-bolt components and add-a-leaf hardware. It is built for the Base, Pre Runner, TRD Pro and X-Runner versions of the 2012–2015 Tacoma, which sits between the 2005–2011 and 2016–2022 Tacoma generations.

Key features

  • 6-inch stage 1 lift for the 2012–2015 Tacoma
  • PRO-X front shocks and PRO-X rear shocks, both included
  • Block and U-bolt rear lift with add-a-leaf hardware
  • Lift height range of 6 to 7 inches
  • It fits the TRD Pro version of the 2012–2015 Tacoma.

Brakes and wiring after a lift

Raising a truck’s suspension moves the wheels and axle relative to the frame, and that stretches or rotates the components that connect them. Flexible brake hoses can come under tension at full droop, and the wiring that runs to the ABS sensors can be pulled tight. Both are worth inspecting after the lift is complete, with the truck at full suspension extension.

Parking brake cables and the lines that run along the frame are also affected in some setups. Look for kinks, rubbing on the frame or axle, and cracking at the rubber sections. Replacing worn brake hoses while the suspension is apart is a common step, since access is easier at that point.

  • Check flex hoses at full droop
  • Inspect ABS sensor wire routing and clips
  • Look for rub points on the frame and axle
  • Test the parking brake after reconnecting cables

Specifications

Brand Pro Comp Suspension
Part number K5080T
Suspension type Lift kit, stage 1
Lift height 6 inches, listed range 6–7 inches
Front shocks PRO-X
Rear shocks PRO-X, included
Rear lift method Block/spacer with block and U-bolt and add-a-leaf
Shocks included Yes

Vehicle fitment

It fits the 2012–2015 Toyota Tacoma in the Base, Pre Runner, TRD Pro and X-Runner versions.

Fit falls within 2012–2015 Tacoma models, outside the 2005–2011 and 2016 and newer Tacoma, the 4Runner and the Tundra. Verify your truck’s year, model and trim before you order.

Installation notes

Changing the Tacoma’s ride height changes the driveline angles and the front alignment, so have both checked after the lift is installed and the truck is back on its wheels.

What’s included

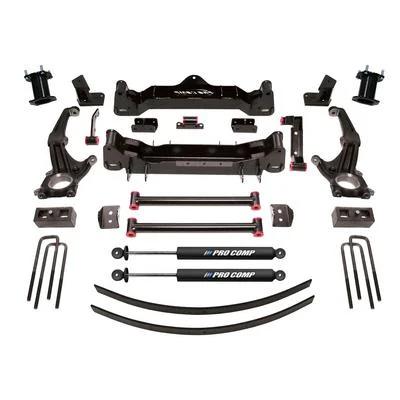

PRO-X front and rear shocks, and the block and U-bolt rear lift components with add-a-leaf hardware.

SKU: EXPK5080T Categories: ,

Fitment

VehicleYearsTrims
Toyota Tacoma2012–2015Base, Pre Runner, TRD Pro, X-Runner

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Pro Comp K5080T fit a 2015 Toyota Tacoma TRD Pro?

Yes. The 2012–2015 Tacoma is in the listed fitment, and the TRD Pro version is named. Match the model year on your own truck to the list before buying.

Does the K5080T fit a 2016 Toyota Tacoma?

No. It is built for 2012–2015 Tacoma models, so 2016 and newer trucks fall outside its fit. Verify your truck's year, model and trim before you order.

What lift height is the K5080T?

It is a 6-inch stage 1 lift with a listed lift height range of 6 to 7 inches. PRO-X front and rear shocks are included with it.

Should brake lines be checked after a lift?

Yes. Raising the suspension can stretch flexible brake hoses and pull on the ABS sensor wiring, so inspect both after installation. Look for kinks, rubbing and tension when the suspension is at full droop.
