Overview

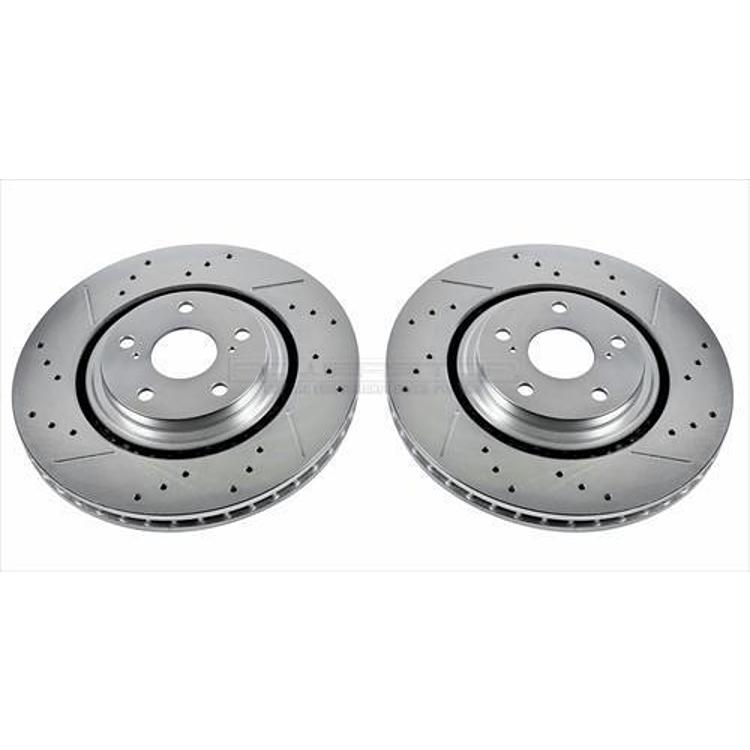

The Power Stop JBR1310XPR is a front slotted and cross-drilled brake rotor for the 2008–2017 Toyota Highlander and Lexus NX, RX models. Power Stop positions drilled and slotted rotors as a performance upgrade over a plain replacement disc.
It suits owners of the 2008–2017 Toyota Highlander and Lexus NX and RX models who want a front rotor with a slotted and cross-drilled face rather than a plain disc.
Rotors are wear parts: the pad surface thins and can warp or score over time. Replacing them restores a flat, true surface for the pads.
Key features
- Slotted and cross-drilled front rotor
- Direct fit for the listed vehicles
- G3000 grade cast
- Slots keep a clear contact patch between pad and rotor
- Rotor run-out within 0.0015 and DTV tolerance within 0.005
- Coated rotor
- Rounded slots that sweep water, gas and dust from the pad contact patch
- Silver zinc plated to shield against rust during normal operation
- Cross-drilled holes that Power Stop says keep rotors up to 180°F cooler
Rotor wear and replacement
Rotors are wear parts. Over time the pad surface can thin, the face can warp or score, and the rotor may no longer give a flat, true contact area for the pads. Replacing a worn rotor restores that surface and helps the brakes respond as they should. Rotors that are not replaced in time can damage the pads and lengthen stopping distances.
When the rotor is off, inspect the caliper, brake hoses and wheel bearing for play. A new rotor can only perform as well as the parts it runs against. Clean the hub face and remove any rust before mounting, and tighten the wheel nuts evenly, following the service manual’s sequence.
- Inspect the caliper slides and hoses
- Clean rust off the hub face
- Check rotor thickness before reuse
- Re-check wheel nuts after the first drive
Specifications
| Brand | Power Stop |
|---|---|
| Part number | JBR1310XPR |
| UPC | 792088926876 |
| Product type | Slotted and cross-drilled disc brake rotor |
| Position | Front |
| Fit type | Direct fit |
| Coating | Rotors coated |
| Casting | G3000 grade cast |
| Plating | Silver zinc |
| Machining | Tru-Cast precision machined |
| Rotor run-out | Within 0.0015 |
| DTV tolerance | Within 0.005 |
| Balance | Mill balanced |
Vehicle fitment
It is a direct fit for the 2015 and 2017 Lexus NX200t (Base, F Sport); the 2015 and 2017 Lexus NX300h (Base); the 2010–2015 Lexus RX350 (Base, F Sport); the 2010–2014 Lexus RX450h (Base); and the 2008–2015 and 2017 Toyota Highlander (Base, Hybrid, Hybrid LE, Hybrid Limited, Hybrid XLE, LE, LE Plus, Limited, Plus, SE, Sport, XLE).
Measure the rotor being replaced for diameter, thickness, bolt pattern and weight, and compare those figures before ordering.
Year and trim matter for this rotor, so check both against your vehicle before buying. The NX covers 2015 and 2017, the RX350 2010–2015, the RX450h 2010–2014 and the Highlander 2008–2015 and 2017.
Installation notes
Inspect the caliper and brake hoses while the rotor is off, and replace worn parts before reassembly.
What’s included
The JBR1310XPR is a single rotor and includes no other parts.
Not included: Pads, hardware and any brake fluid are separate items and are not part of the rotor listing.
