Overview

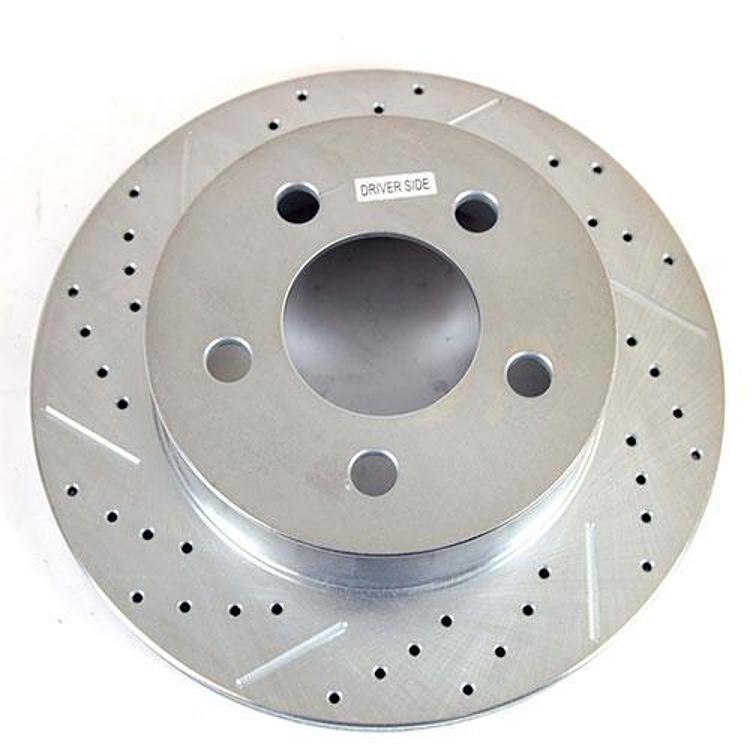

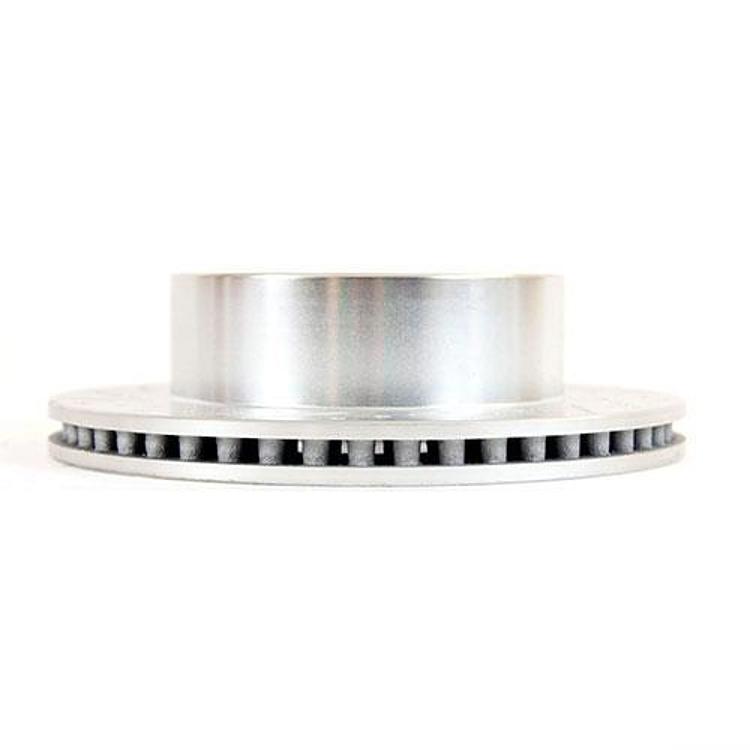

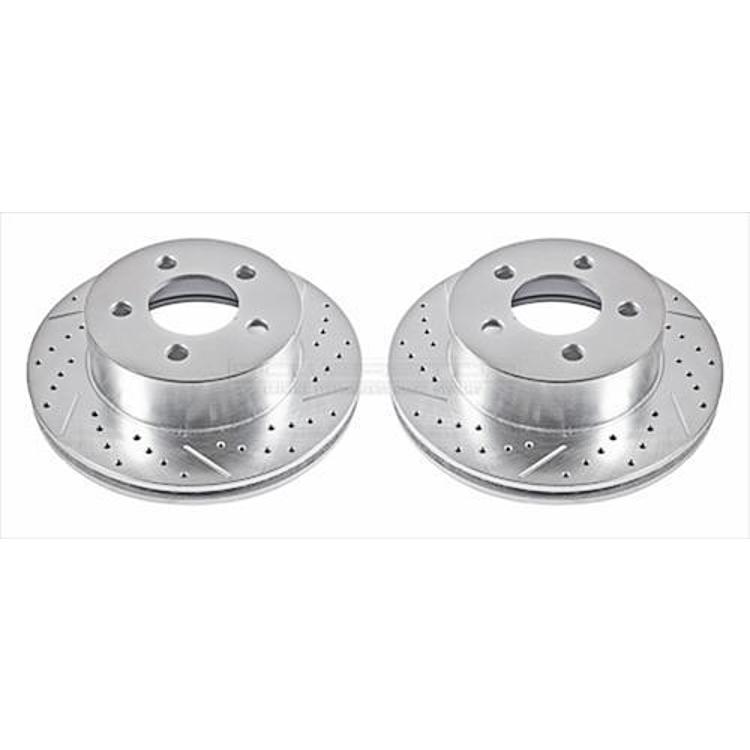

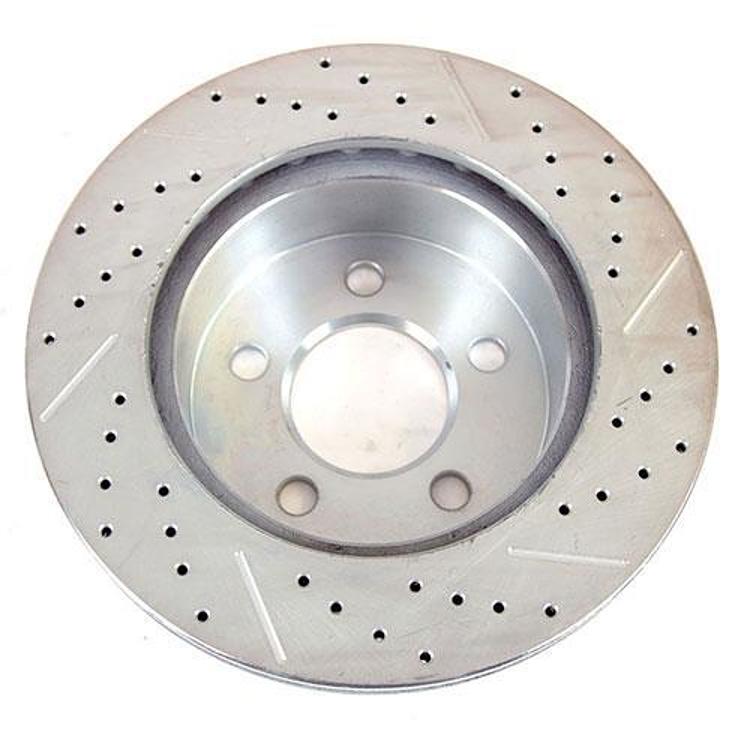

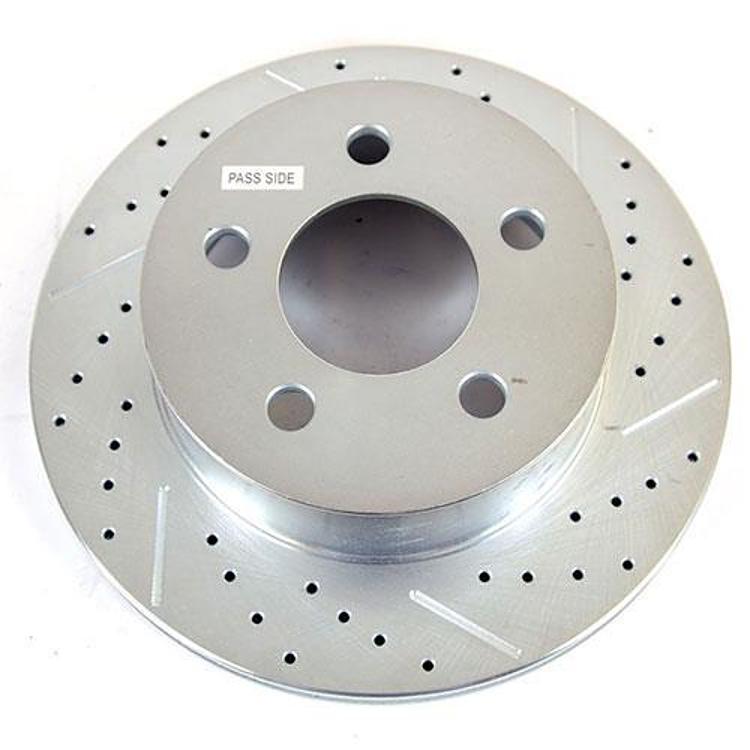

The Power Stop AR8745XPR is a front slotted and cross drilled brake rotor for the 1999–2001 Jeep Cherokee (XJ), 2004–2006 Jeep Wrangler (LJ) and 1999–2006 Jeep Wrangler (TJ). It is direct fit, with beveled, precision drilled holes that help hold temperatures down during extreme braking.
It suits owners of these Jeep models who want a front rotor with a slotted and cross drilled face rather than a plain disc. Your vehicle’s year, model and trim should be checked before you order.
Front and rear rotors are different parts, so the axle position matters as much as the vehicle when choosing one.
Key features
- Slotted and cross-drilled front rotor
- Direct fit for the listed vehicles
- Cross-drilled holes that Power Stop says keep rotors up to 180°F cooler
- Mill balanced
- Looks good behind custom or factory wheels
- Tru-Cast precision machining
- Designed to reduce brake fade

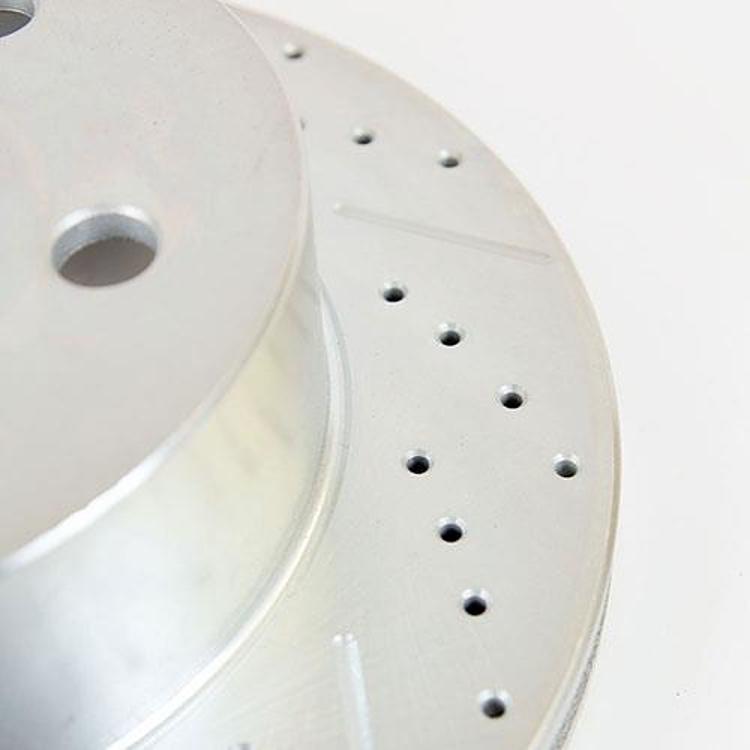

- Beveled, precision-drilled holes to help hold temperatures down in extreme braking
- G3000 grade cast
Front rotors and axle position
Front and rear rotors look similar but are built for different axle positions, so choosing by vehicle alone is not enough. Confirm the front position first, then match the model year and trim to your Jeep.
Cross drilled holes and beveled edges can help the rotor shed heat during long descents or hard stops, but the benefit depends on the brake pads, the caliper and how the vehicle is used. Off-road use with heavy loads can add heat and debris, so inspect the rotor after rough trips.
Installing a new front rotor usually means new pads on the same axle, and the caliper slide pins should be cleaned and lubricated during service. Keep grease off the friction surface and test the brakes at low speed before heavier use.
- Verify front position before buying
- Clean and lubricate caliper slide pins
- Inspect the rotor after off-road trips
- Replace pads on the same axle
Specifications
| Brand | Power Stop |
|---|---|
| Part number | AR8745XPR |
| UPC | 792088554109 |
| Product type | Slotted and cross-drilled disc brake rotor |
| Position | Front |
| Fit type | Direct fit |
| Coating | Rotors coated |
| Casting | G3000 grade cast |
| Plating | Silver zinc |
| Machining | Tru-Cast precision machined |
| Rotor run-out | Within 0.0015 |
| DTV tolerance | Within 0.005 |
| Balance | Mill balanced |
Vehicle fitment
It fits the 1999–2001 Jeep Cherokee (XJ) in Classic, Limited, SE and Sport trims, the 2004–2006 Wrangler (LJ) in Unlimited and Unlimited Rubicon trims, and the 1999–2006 Wrangler (TJ) in 65th Anniversary Edition, Rubicon, SE, Sahara, Sport and X trims.
Rotor diameter, thickness, bolt pattern and weight should be checked against the rotor being replaced before installation.
The fit covers XJ Cherokee years 1999–2001, LJ years 2004–2006 and TJ years 1999–2006 only. Earlier Cherokees, the YJ Wrangler and the JK Wrangler fall outside that range. Verify your vehicle’s year, model and trim before buying.
Installation notes
After installation, test the brakes at low speed in a safe area before returning to normal driving.
What’s included
The AR8745XPR is a single rotor, and no additional parts come with it.
Not included: Nothing besides the rotor is listed, so pads, hardware and tools are separate.
