Overview

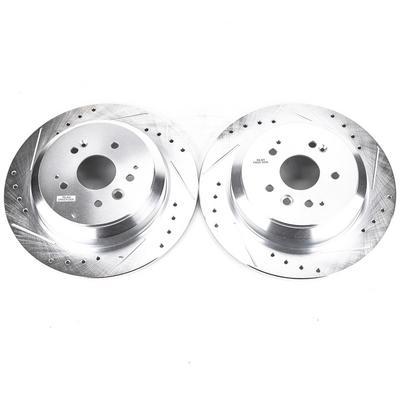

The Power Stop Evolution JBR1587XPR (part number PSTJBR1587XPR) is a pair of rear drilled and slotted brake rotors for the 2014–2016 Acura MDX.
Tru-Cast machining is used in the build. The cross-drilled holes are designed to keep rotors up to 180F cooler, and the rounded slots sweep water, gas and dust away so the pad keeps a clear contact patch.
Mill balancing and a zinc plating finish complete the rotor.
Run-out is the side-to-side wobble of a spinning rotor, while DTV is the difference in thickness across the disc. Power Stop gives this rotor a run-out within 0.0015 and a DTV tolerance within 0.005, which are the limits the rotor is held to.
The fitment is limited to the 2014 through 2016 MDX years, and the part is intended for the rear axle only, so the front brakes need their own rotors.
Key features
- Cross-drilled holes are designed to keep rotors up to 180F cooler.
- Precision machined using Tru-Cast technology
- Rotor run-out within 0.0015 and DTV tolerance within 0.005
- All Evolution rotors are mill balanced
- Rounded slots keep a clear contact patch by sweeping away water, gas and dust
- Silver zinc plated to shield against rust during normal operation
- Reduces fade; G3000 grade cast
- Supplied as a pair
Rear brake service
Rear brakes on a midsize SUV often handle a larger share of the work during downhill driving and when towing. Drilled and slotted rotors help manage heat and clear debris, but they still need periodic inspection. Look for cracks around the drilled holes, which are common stress points, and for grooves that deepen across the friction face.
Consider pad material when pairing with these rotors. Aggressive compounds wear rotors faster, while balanced compounds suit daily driving. Replace pads and rotors together so wear stays even, and avoid mixing new pads on a rotor that is already grooved.
- Inspect the caliper slide pins during each pad change
- Keep the hub face clean and free of rust
- Check that the parking brake engages fully after the job
Specifications
| Brand | Power Stop |
|---|---|
| Part number | PSTJBR1587XPR |
| Product type | Rear brake rotors, drilled and slotted |
| Position | Rear |
| Disc material | Cast iron (G3000 grade) |
| Coating | Silver zinc plated |
| Run-out | Within 0.0015 |
| DTV tolerance | Within 0.005 |
| Quantity | Pair |
| Fit | Direct fit |
Vehicle fitment
It fits the 2014–2016 Acura MDX in Base and SH-AWD versions. One part number covers all three model years.
The MDX before 2014 and after 2016 is not in the list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Replace both rear rotors together and fit new rear pads; the MDX rear rotor is a separate part from the front, so the front axle is not covered by this part number.
What’s included
Two rear rotors.
Not included: Brake pads and mounting hardware.
