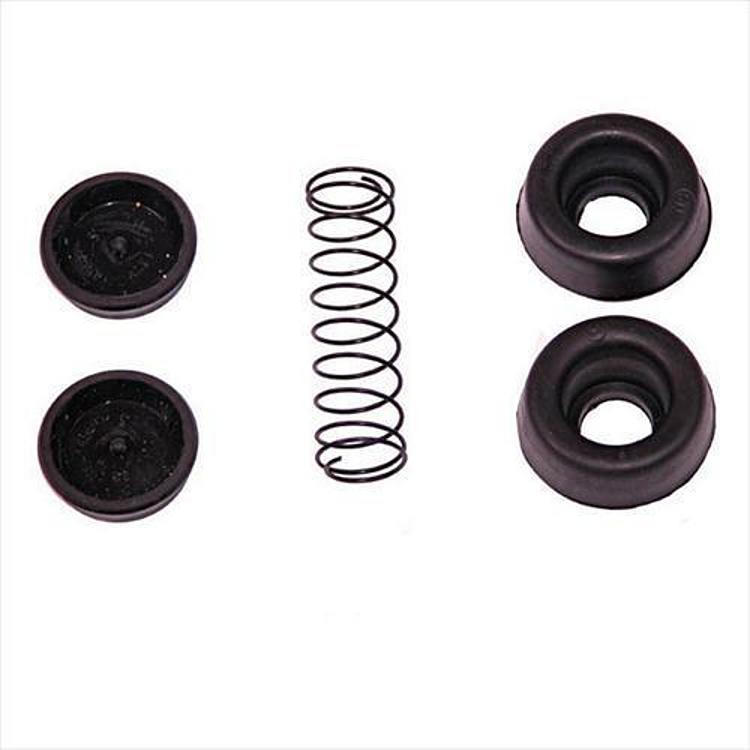

Omix-ADA Wheel Cylinder Repair Kit – 16724.05

Omix-Ada

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Repair kit for 1-1/8 inch bore wheel cylinders
  • Fits 1959–1978 CJ5, CJ6, CJ7 and Wagoneer (SJ), plus Jeepster
  • Direct fit from Omix-ADA

Description

Overview

The Omix-ADA 16724.05 is a wheel cylinder repair kit for Jeep drum brakes that use 1-1/8 inch bore wheel cylinders. It fits the 1959 to 1978 CJ5, the 1959 to 1975 CJ6, the 1976 to 1978 CJ7, the 1966 to 1971 Jeepster (including the Commando) and the 1963 to 1978 Wagoneer (SJ).

A repair kit lets an owner service an existing wheel cylinder rather than replace it, and Omix-ADA presents the part as a direct OE-style replacement kit.

Key features

  • Wheel cylinder repair kit for drum brakes
  • Made for 1-1/8 inch bore wheel cylinders
  • Fits CJ5, CJ6, CJ7, Jeepster and Wagoneer (SJ)
  • Direct fit for the vehicles and years shown

Rebuilding a wheel cylinder

A worn wheel cylinder usually shows itself as brake fluid on the inside of the backing plate or around the dust boot, or as a brake shoe that does not pull back evenly after a stop. Pull the drum and inspect the bore for scoring, pitting or rust before assembling anything. A badly pitted bore will chew through new cups quickly, so the cylinder should be replaced rather than repaired in that case.

When rebuilding, clean the bore with brake fluid rather than solvent, and replace the cups, boot and spring as a set. Lubricate the pistons with brake fluid or assembly lube made for hydraulic parts, and keep the bleeder screw clean so air can be purged cleanly afterward. Bleed each cylinder from the farthest point back toward the master cylinder until fluid runs clear of bubbles.

  • Check the drum for scoring that could damage new cups
  • Replace the rubber parts together rather than one at a time
  • Use fresh brake fluid from a sealed container

Specifications

Brand Omix-ADA
Part number 16724.05
UPC 804314014063
Part type Wheel cylinder repair kit
Wheel cylinder bore 1-1/8 inch
Fit type Direct fit
Warranty Limited five year warranty

Vehicle fitment

It fits the 1959–1978 CJ5, the 1959–1975 CJ6, the 1976–1978 CJ7, the 1966–1971 Jeepster (including the Commando) and the 1963–1978 Wagoneer (SJ).

Fit is confirmed only for the years shown above. Match the 1-1/8 inch bore to your wheel cylinders, then confirm your vehicle’s year, model and trim before ordering.

SKU: OAI16724.05 Category:

Specification

Shipping weight 2.18 lbs
Package dimensions 5.50 × 4.00 × 1.00 in
brands

Fitment

VehicleYearsTrims
Jeep CJ51959–1978Base, Golden Eagle, Renegade
Jeep CJ61959–1975Base
Jeep CJ71976–1978Base, Golden Eagle, Renegade
Jeep Jeepster1966–1971Base, Commando
Jeep Wagoneer (SJ)1963–1978Base, Custom

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What bore size does the Omix-ADA 16724.05 kit fit?

It is made for wheel cylinders with a 1-1/8 inch bore, and it fits the CJ5, CJ6, CJ7, Jeepster and Wagoneer (SJ) in the years shown above.

Which Jeep models does the 16724.05 fit?

It fits the CJ5 from 1959 to 1978, the CJ6 from 1959 to 1975, the CJ7 from 1976 to 1978, the Jeepster from 1966 to 1971 and the Wagoneer (SJ) from 1963 to 1978.

Is the 16724.05 a full wheel cylinder?

No. It is a repair kit, meant to renew an existing wheel cylinder. A complete cylinder is a different part, such as the Omix-ADA 16723 series wheel cylinders.
