Overview

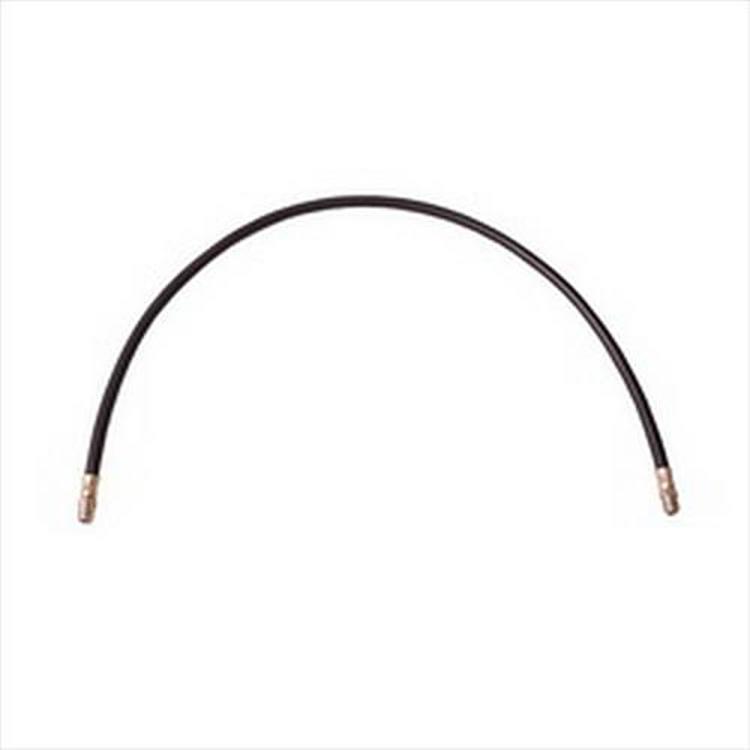

The Omix-ADA long oil line (inlet), part number 17470.09, is a 30.5 inch long oil line made for the 4 cylinder 134 engine with an F-head. It fits Jeep CJ3, CJ5 and CJ6 models from 1959–1960 and 1968–1971, and Willys CJ-3, CJ-5 and CJ-6 models from 1954–1958.
The line is built to original specifications and carries a limited five year warranty from Omix-ADA. It is an OE-style replacement for these older CJ models. Compare the line with the one being replaced for fittings and routing before installing it.
Key features
- Built to original specifications
- Long inlet line, 30.5 inch long
- Limited five year warranty
- Direct fit for the CJ models named below
Inlet lines on older CJ engines
An inlet oil line carries oil from the sump toward the pump, so any leak or kink at this point can starve the engine of oil. On older CJ models the line often runs close to exhaust heat and moving linkage, which can harden the rubber and crack fittings over time. Look for seepage at both ends, cracked hose sections, and clamps that have loosened.
A replacement should match the original length and bend pattern. Check that the end fittings thread in by hand before tightening, and avoid forcing the line into place. Because the inlet side works under vacuum rather than pressure, a small air leak can cause hard starting, so re-check the connections after the first run.
- Compare routing with the old line before removing it
- Check for oil seepage after the first run
- Replace the gasket or sealing washers if the fittings used them
Specifications
| Brand | Omix-Ada |
|---|---|
| Part number | 17470.09 |
| UPC | 804314011024 |
| Length | 30.5 inch long |
| Engine | 4 cylinder 134 F-head |
| Warranty | Limited five year warranty |
Vehicle fitment
It fits CJ3 (Base), CJ5 (Base) and CJ6 (Base) models from 1959–1960 and 1968–1971, and Willys CJ-3 (1954–1958), CJ-5 (1955–1958) and CJ-6 (1956–1958).
Models outside those years, including later CJ7 and Wrangler vehicles, are not on this list. Confirm your vehicle’s year, model and trim before ordering.
What’s included
The package is one long oil line (inlet). Check fittings, clips and hardware against your installation before starting.
