Overview

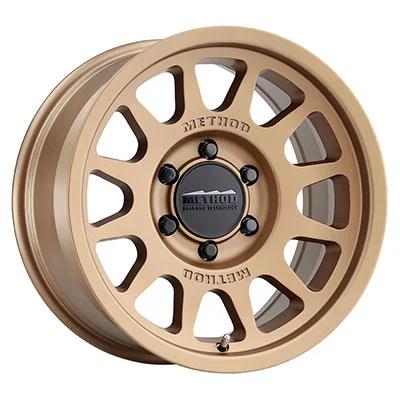

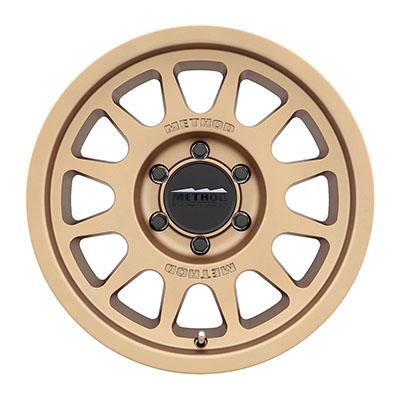

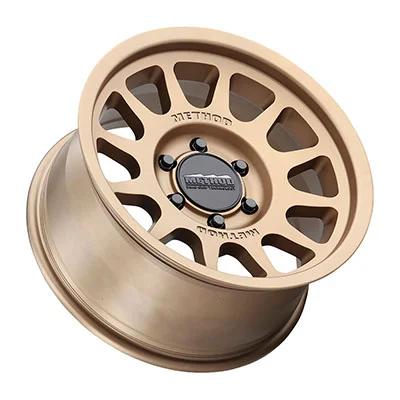

The Method Race Wheels MR703 17×7.5 in Bronze, part number MRWMR70377563950, is a 17-inch aluminum off-road wheel, 7.5 inches wide, with a 6 on 130 bolt pattern and a 50 offset. Method Race Wheels gives it as universal fit with no vehicle named.
The windowed MR703 belongs to the Bead Grip series and was developed for off-road racers. Each design is tested through finite element analysis and field work. The 84 center bore and 6.25 backspacing are the figures to compare with a hub. A 50 offset places the mounting face toward the outside of the wheel, which tucks it further into the fender than a zero-offset design, so measure clearance before choosing a tire.
Key features
- 17-inch by 7.5-inch aluminum wheel
- Bronze finish with a windowed style
- 6 on 130 bolt pattern
- 50 offset and 6.25 backspacing as given
- 84 center bore
- MR703 Bead Grip series
Reading offset and backspacing
Offset and backspacing describe where the mounting face sits relative to the wheel’s centerline. A positive offset moves the wheel inward toward the suspension, while a lower number moves it outward. Backspacing measures from the mounting face to the back edge, which is the number to watch for caliper and suspension clearance.
Changing either figure changes the wheel’s position in the wheel well. Even a small shift can cause tire rub on the inner fender or interference with brake parts. Measuring clearance with the tire in place, at full steering lock and full suspension travel, gives the most reliable answer before any drive. Hub-centric rings can help keep the wheel centered on the hub.
- Measure caliper clearance before mounting
- Check inner fender clearance at full lock
- Recheck clearance after a lift or leveling kit
- Keep tire size within a sensible range of the original
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR70377563950 |
| Wheel diameter | 17 inches |
| Wheel width | 7.5 inches |
| Offset | 50 |
| Center bore | 84 |
| Backspacing | 6.25 |
| Bolt pattern | 6 on 130 |
| Finish | Bronze |
| Style | Windowed |
| Series | MR703 Bead Grip |
| Construction | Aluminum |
Vehicle fitment
No vehicle is named. Universal fit means the bolt pattern, center bore, offset and backspacing decide suitability for a hub, not a model name. Measure the 6.25 backspacing against caliper and suspension clearance before buying.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Measure the 6.25 backspacing against caliper and suspension clearance before mounting. Lug seat type, load rating and hardware need checking before installation.
What’s included
The wheel is the only item described.
Not included: Tires and lug nuts are sold separately from this wheel.
