Method Race Wheels MR605 NV, 20x10 with 6x135 Bolt Pattern – Bronze – MR60521016924N

Method Race Wheels

Shop Method Race Wheels 20x10 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Method Race Wheels MR605 NV 20×10 wheel, part number MRWMR60521016924N
  • 6 on 135 bolt pattern, 87 center bore, offset -24
  • Bronze aluminum windowed style with Street-Loc lip
  • Rated at 2650 lbs for 5 and 6 lug applications
  • Labeled universal fit, so verify the hub before mounting

Description

Overview

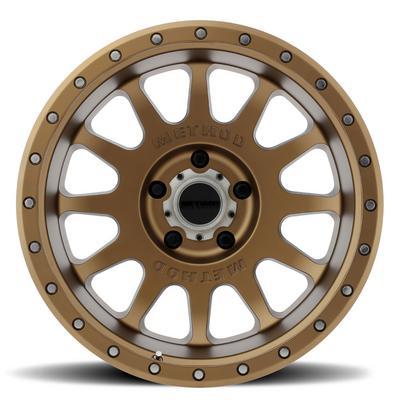

Method’s MR605 NV in a 20×10 size with a 6 on 135 bolt pattern, part number MRWMR60521016924N, is a bronze aluminum wheel in the 600 Series. Its 20-inch diameter, 10-inch width and windowed style give it a bold, deep face that suits six-lug trucks, Jeeps and SUVs.

The MR605 NV is an evolution of the MR305 NV, with dimensions pushed further and offered in 20×10 and 20×12. It is rated at 2650 lbs for 5 and 6 lug applications, which includes this 6-lug version. Because the wheel is universal fit, the 6-on-135 pattern and 87 center bore decide whether it mounts on a given hub.

Key features

  • Street-Loc lip is built into the one-piece wheel, with removable stainless steel bolts around the lip.
  • The 20×10 size has a 3-inch lip.
  • A snap-in cap with a raised Method logo is used on 5 and 6 lug versions.
  • Two debossed Method logos are placed on the face near the bolt ring.
  • Deep-dish offset of -24 with 4.55 backspacing.
  • Rated for 2650 lbs in 6 lug use.

Six-lug mounting basics

Six-lug hubs rely on the bolt circle and center bore working together. A wheel with the right pattern but a mismatched bore can still sit unevenly, so the center bore should be checked before the tire is mounted. Six-lug versions use the snap-in center cap, which should seat fully so it does not rattle on rough trails.

Because the offset is -24, the tire sits further outward and the steering geometry changes slightly. Lift height, tire width and fender trim all affect how close the tire comes to the body. Torque the lug nuts in a star pattern and recheck them after the first drives.

  • Confirm the 6 on 135 pattern before anything else
  • Seat the snap-in cap fully and check it for rattle
  • Watch tire rub at full steering lock

Specifications

Brand Method Race Wheels
Part number MRWMR60521016924N
Series MR605 NV (600 Series)
Wheel diameter 20 inches
Wheel width 10 inches
Lip 3 inches (20×10)
Offset -24
Backspacing 4.55
Center bore 87
Bolt pattern 6 on 135
Style Windowed
Finish Bronze
Construction Aluminum
Load rating 2650 lbs (5 and 6 lug applications)
Fitment Universal Fit (as labeled)

Vehicle fitment

Labeled universal fit, this wheel is not built for one model. Use the 6 on 135 bolt count and 87 center bore to check your hub before you choose it, and compare the -24 offset with your fender and suspension setup.

A 6-on-135 wheel is not a match for 5-lug or 8-lug hubs. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Six lug versions take the snap-in center cap, and the bolt-on cap belongs to the 8 lug version. Match the 87 center bore to the hub, and on lifted vehicles check clearance against the -24 offset before the first drive.

What’s included

This product is the wheel with its aluminum center ring, snap-in cap and stainless steel lip bolts.

Not included: Tires and lug nuts must be bought separately from this wheel.

SKU: MRWMR60521016924N Categories: ,

Questions & Answers

Is the Method MR605 NV 20x10 with 6x135 bolt pattern a universal fit wheel?

Yes. Method labels it universal fit, which means it is not tied to one vehicle. The 6 on 135 pattern and 87 center bore must match the hub before you choose it.

What is the part number of this bronze 6x135 MR605 NV?

Part number MRWMR60521016924N. It is a 20x10 aluminum wheel with a 6 on 135 pattern, 87 center bore, -24 offset, 4.55 backspacing and a windowed style.

What load rating does it carry?

The wheel is rated at 2650 lbs for 5 and 6 lug applications. Tire size and vehicle weight limits are not covered, so check those before mounting.

Are tires or lug nuts included?

No. The wheel, center ring, snap-in cap and removable lip bolts come together. Tires and lug nuts are not among them, so get those separately.

Why does a six-lug wheel need the center bore checked separately?

The center bore centers the wheel on the hub, and the lug nuts only clamp it in place. If the bore does not match, the wheel can sit slightly off center and cause vibration even when the bolt pattern lines up.
