Overview

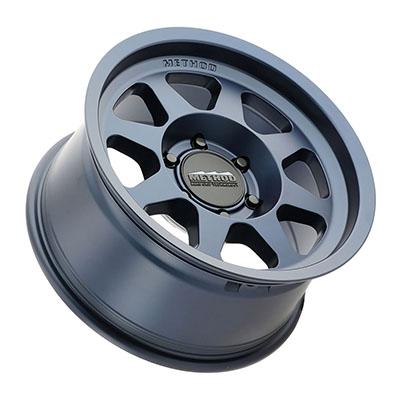

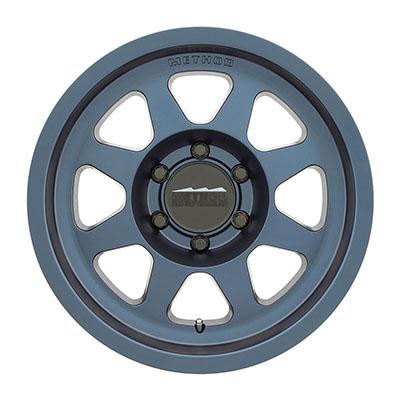

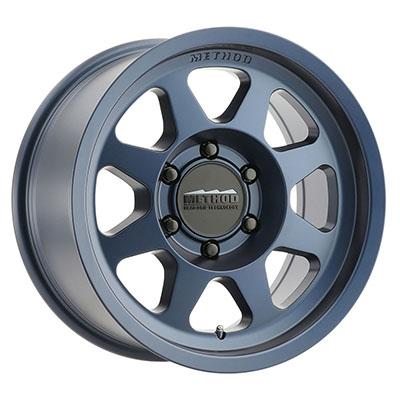

The Method Race Wheels MR701 in 16×8 with a 6 on 5.5 bolt pattern is finished in Bahia Blue, part number MRWMR70168060600. It belongs to the MR701 Bead Grip series, an aluminum windowed wheel from Method, a brand that focuses its line on wheels made for off road racing.
Method Race Wheels builds its line for off-road racing. Each wheel is engineered for its intended use, with finite element analysis and field tests guiding the design. The aim is to reduce weight while increasing strength.
Key features
- 16 inch diameter and 8 inch width
- Windowed style in a Bahia Blue finish
- 6 on 5.5 bolt pattern with a 106 center bore
- Aluminum construction
- Engineered with finite element analysis and field testing
- Offset 0 and backspacing 4.5
Off-road use and clearance
A 16 inch wheel gives a shorter sidewall than a larger wheel with the same tire, which changes ride feel and how the tire flexes over rocks. Off-road, the wheel’s lip takes impacts from ledges and rock edges, so inspect it after hard trail use. Check the wheel for bends, cracks and loose lug holes before each trip.
Tire selection and brake clearance go together. The offset and backspacing decide how far the wheel sits from the caliper, and a tire with a larger overall diameter can reduce clearance on the steering arms. Confirm the bolt pattern and center bore first, then test the setup at full steering lock. Lug nuts should be retorqued after the first few trail runs.
- Check the lip after rock or ledge contact
- Verify brake caliper clearance with the tire
- Confirm bolt pattern and center bore before mounting
- Inspect lug holes for elongation or cracks
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR70168060600 |
| Series | MR701 Bead Grip |
| Wheel diameter | 16 Inches |
| Wheel width | 8 Inches |
| Offset | 0 |
| Center bore | 106 |
| Backspacing | 4.5 |
| Bolt pattern | 6 on 5.5 |
| Style | Windowed |
| Finish | Blue (Bahia Blue) |
| Construction | Aluminum |
| Fitment | Universal Fit |
Vehicle fitment
The wheel carries Universal Fit, so no year, make or model is named. Compare the 6 on 5.5 pattern, 106 center bore, 0 offset and 4.5 backspacing with your hub and brake clearance. Offset is the distance from the mounting face to the wheel centerline, so zero offset puts the mounting face on the centerline.
The 17×8.5 MR701 in this series uses a different size and bolt pattern, so it is not a stand-in for this wheel. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check tire clearance at full steering lock and through suspension travel before the first drive, since a 16 inch wheel changes sidewall height and clearance.
What’s included
Check the package contents against your installation before starting, including any center cap or lug hardware you need.
Not included: tires.
