Method Race Wheels 315, 17x8.5 Wheel 5 on 150 Bolt Pattern – Matte Black – MR31578558500

Method Race Wheels

Shop Method Race Wheels 17x8.5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Method Race Wheels 315 17×8.5 aluminum wheel, part MRWMR31578558500

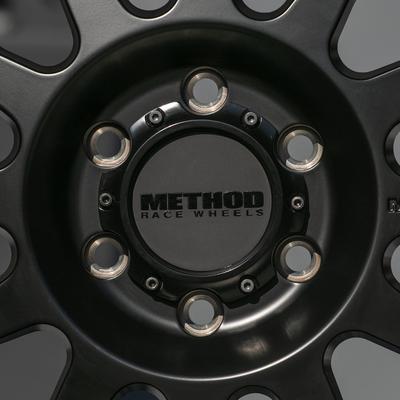

  • 5 on 150 bolt pattern with a 111 center bore

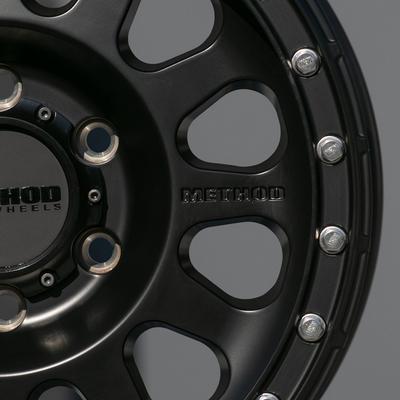

  • Windowed style with a matte black finish
  • Offset 0 and backspacing 4.75
  • Universal fit design, not tied to one vehicle

Description

Overview

The Method Race Wheels 315 17×8.5 wheel in 5 on 150 bolt pattern, part number MRWMR31578558500, is a 17-inch aluminum off-road wheel with a windowed face and matte black finish. It belongs to the MR315 series and is a universal fit design, so it is not tied to one make, model or year.

Method says each wheel was developed with finite element analysis and field testing to reduce weight and add strength. Fit depends on bolt pattern, center bore, offset and backspacing, so compare those measurements with your hub and axle first.

Key features

  • 17-inch diameter and 8.5-inch width
  • Windowed style with a matte black finish
  • Aluminum construction in the MR315 series
  • 5 on 150 bolt pattern with a 111 center bore
  • Offset 0 and backspacing 4.75

Lug hardware and seats

Lug nuts and studs work together with the wheel’s seat, and the seat style has to match the nut or the wheel will not clamp evenly. Common seat styles include conical, ball and flat, and mixing them can cause the nut to sit crooked or loosen under load. Because the wheel’s seat is part of the fit, check the seat style before buying hardware, not after the first trail run.

Lug hardware also needs to be checked for thread size, length and condition. Stud threads should be clean, and nuts should turn smoothly by hand before any torque is applied. Replace any stud that is bent, stretched or damaged, and avoid reusing nuts that have been over-tightened or cross-threaded. Re-check torque after the first drive, since the wheel can settle against the hub.

  • Match the nut seat to the wheel seat style
  • Check thread size and length before fitting
  • Replace bent or damaged studs

Specifications

Brand Method Race Wheels
Part number MRWMR31578558500
Series MR315
Wheel diameter 17 Inches
Wheel width 8.5 Inches
Bolt pattern 5 on 150
Center bore 111
Offset 0
Backspacing 4.75
Style Windowed
Finish Matte Black
Construction Aluminum
Fitment Universal Fit

Vehicle fitment

It is a universal fit design, so no particular make, model or year applies. The bolt pattern and center bore decide whether it suits a given application.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Match the 5 on 150 bolt pattern and 111 center bore to your hub before mounting. Confirm the lug nut type and seat style against your lug hardware before fitting.

What’s included

This entry covers one wheel. Tires, lug nuts and center caps are not included.

SKU: MRWMR31578558500 Categories: ,

Questions & Answers

What bolt pattern and center bore does this Method wheel have?

The bolt pattern is 5 on 150 and the center bore is 111. Both measurements must match your hub for the wheel to mount correctly. The offset is 0 and the backspacing is 4.75.

Is this Method Race Wheels 315 vehicle-specific?

No. It is a universal fit design, so no particular make, model or year applies. Check the bolt pattern, center bore, offset and backspacing against your vehicle before mounting.

Are tires, lug nuts or center caps included with this wheel?

No. Tires, lug nuts and center caps are not included with this wheel. The item covers one wheel only, so confirm any extra hardware before mounting.

Can I use aftermarket lug nuts with this wheel?

Only if the seat type matches the wheel's lug seat, and the thread size and length suit the studs. A mismatched seat can loosen over time. Check the nut seat and thread against your hub's studs before ordering.
