Overview

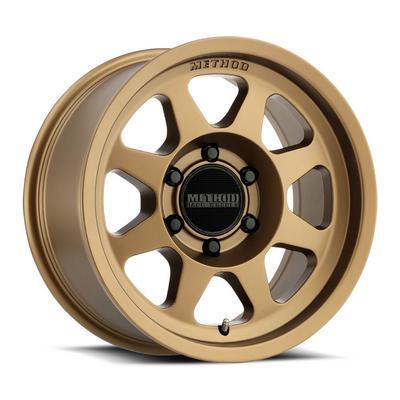

The Method Race Wheels 701 Trail Series 17×7.5 wheel in Bronze, part number MRWMR70177563950, is an off-road aluminum wheel with a 6 on 130 bolt pattern, an offset of 50, a center bore of 84 and backspacing of 6.2. It has a windowed design and is cast in one piece.

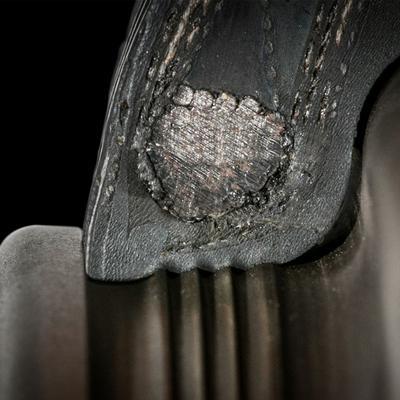

The wheel is made from 356 aluminum and heat treated to T6. Method’s patent-pending Bead Grip technology is meant to hold the tire bead seat for extra traction when pressures are lowered. A race-derived inner lip adds reinforcement, and humps on both bead seats are there to help keep the tire from de-beading. Method credits finite element analysis and field trials for the final shape.
Key features
- Cast in one piece from 356 aluminum and T6 heat treated

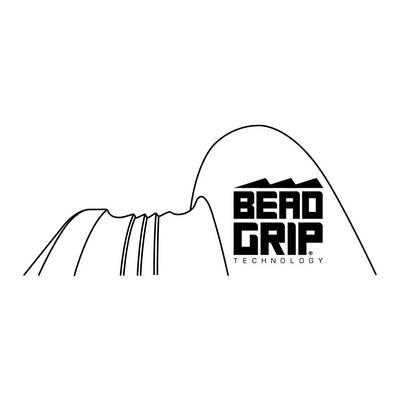

- Patent-pending Bead Grip design for grip at reduced tire pressures
- Inner lip reinforced with race wheel engineering
- Safety humps on the inner and outer bead seat
- Shaped with finite element analysis and field testing.
- Windowed style with a Bronze finish
Hub-centric rings and lug seats
The center bore has to clear the hub, and where the hub is larger than the bore the wheel is held only by the lug studs. A hub-centric ring fills that gap so the weight of the vehicle sits on the hub rather than the studs, which reduces vibration. Lug seat type matters too: a cone seat and a ball seat look similar but will not seat correctly if swapped.
Before mounting, measure the hub and compare it with the wheel’s bore. Check the lug seat shape against the nuts in your kit, and clean any rust or paint from the mating face. After the first drive, retorque and look at the nuts again, since new seats settle in. Taking those few minutes now saves a trip home with a vibrating wheel.
- Measure the hub before fitting
- Match the lug seat type to the nuts
- Keep the mating face clean
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR70177563950 |
| Series | 701 Trail Series, MR701 Bead Grip |
| Wheel diameter | 17 Inches |
| Wheel width | 7.5 Inches |
| Offset | 50 |
| Center bore | 84 |
| Backspacing | 6.2 |
| Bolt pattern | 6 on 130 |
| Style | Windowed |
| Finish | Bronze |
| Construction | One-piece cast 356 aluminum, T6 heat treatment |
| Fitment | Universal Fit |
Vehicle fitment
The wheel is Universal Fit, so no particular make, model or year applies to it. Fit depends on the 6 on 130 pattern, the offset of 50 and the center bore of 84 suiting your hub, plus clearance to brakes and suspension.
Check the hub bore and lug seat type against your vehicle. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
An offset of 50 and backspacing of 6.2 change how the wheel sits in the fender, so measure clearance before mounting. Have a tire shop mount and balance the tire, then recheck lug torque after the first drive.
What’s included
This package covers the wheel itself.
Not included: Tires, lug nuts and valve stems are sourced separately.
