Overview

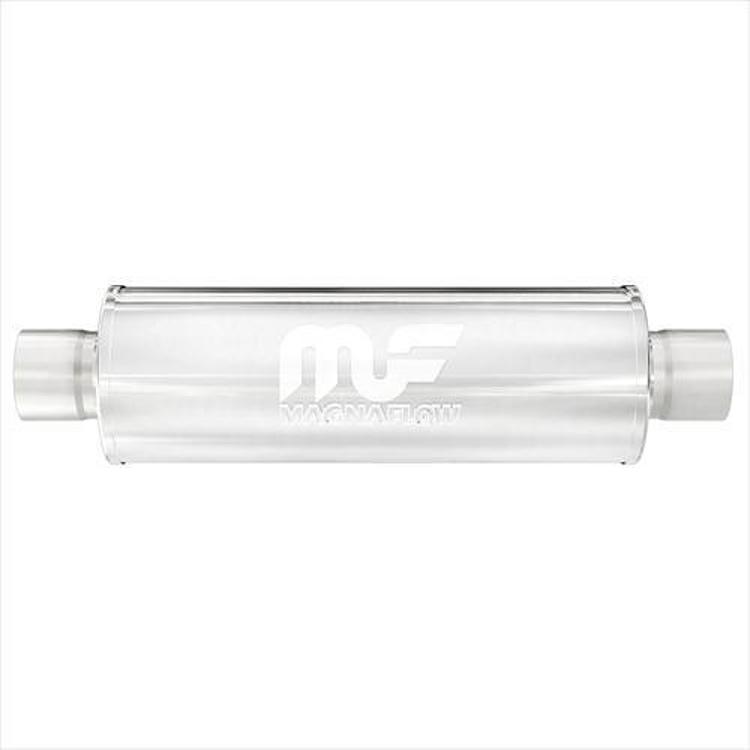

The MagnaFlow 10436 is a 2.5-inch straight-through muffler made from satin stainless steel. Its case is lap-joint welded, and MagnaFlow builds it for solid construction and reliability in demanding conditions.
A free-flowing core of perforated stainless steel carries exhaust through the center, with a stainless mesh wrap around it. MagnaFlow packs the acoustical fiber fill densely, which it says preserves a deep tone for the life of the muffler. The product carries a lifetime warranty.
Key features
- 2.5-inch inlet and outlet
- Lap-joint welded stainless steel case
- Free-flowing perforated core
- Stainless mesh wrap
- Densely packed acoustical fiber fill
- Lifetime warranty
Choosing the right muffler setup
A muffler is the last major restriction and noise control point in an exhaust system, so its inlet and outlet placement and tube diameter need to match the pipes feeding it. With a straight-through design, exhaust passes through a perforated core with a stainless mesh wrap and fiber packing, which shapes tone while keeping flow open. Before buying, measure the existing pipe diameter, the position of the inlet and outlet, and the distance to the frame and axle so the muffler sits clear of moving parts.
Over time, the most common wear points are the welds at the seams, the clamps and the hanger points, since road salt and heat work on them. Inspect the case for rust holes and check the packing if the tone changes or grows rough. Replacing the clamps and hangers at the same time as the muffler is a practical step, and re-checking the connections after the first few drives keeps leaks from developing.
Specifications
| Brand | MagnaFlow Exhaust |
|---|---|
| Part number | 10436 |
| UPC | 841380000149 |
| Muffler type | Straight through |
| Inlet location | Centered |
| Outlet location | Centered |
| Tube size (inlet/outlet) | 2.5 inches / 2.5 inches |
| Material | Stainless steel |
| Finish | Satin |
| Packing | Acoustical fiber fill |
Vehicle fitment
This is a universal fit muffler with 2.5-inch centered connections. Check that those tubes and positions suit your exhaust, and confirm fit for your vehicle’s year, model and trim before ordering.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
Check the package contents against your installation before starting.
