Low Range Offroad Engine Swap Adapter Kit with HD Motor Mounts – SEU-16SK-HDMM

Low Range Offroad

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Engine swap adapter kit for a 1.6L Sidekick, Tracker or Vitara engine in a Suzuki Samurai
  • Adapts to the Samurai 5 speed manual transmission
  • Includes all brackets needed for the Samurai frame, plus HD motor mounts
  • Part number SEU-16SK-HDMM, made in Orem, Utah

Description

Overview

The Low Range Offroad SEU-16SK-HDMM is an engine swap adapter kit that adapts a 1.6L Sidekick, Tracker or Vitara engine to the Suzuki Samurai 5 speed manual transmission. It includes HD motor mounts and all the brackets needed to mount the engine in the Samurai frame.

The kit is engineered, manufactured and tested in Orem, Utah, USA, and it fits 1986–1995 Suzuki Samurai models.

Key features

  • Adapts a 1.6L Sidekick, Tracker or Vitara engine to the Samurai
  • Matches the Samurai 5 speed manual transmission
  • Includes all brackets for the Samurai frame

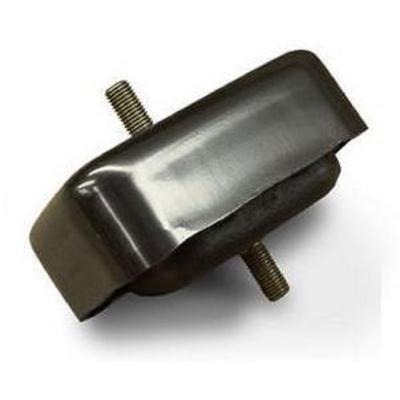

  • HD motor mounts included
  • No body lift needed for 1.6L 16V engines, with minor trimming

Engine swap considerations

Swapping a smaller engine into a Samurai changes weight distribution, cooling airflow, wiring and linkage at once, so plan the work before pulling the original engine. The clutch linkage, throttle cable, shifter position and exhaust routing all need checking against the new engine. Test the swap at low speed on a safe surface before taking it off road.

Cooling is a common problem after an engine swap, so check hose routing, radiator clearance and fan position before the first long drive. Wiring harnesses often need splicing, and a fuel system that matches the donor engine avoids poor running. Keep a record of removed wiring and brackets so reassembly is easier.

  • Check throttle cable routing before the first start
  • Inspect engine and transmission mounts after the first drive
  • Verify cooling and fan clearance with the engine warm

Specifications

Brand Low Range Offroad
Part number SEU-16SK-HDMM
Engine adapted 1.6L Sidekick, Tracker or Vitara engine (16V or 8V)
Transmission Suzuki Samurai 5 speed manual
Motor mounts HD (heavy duty)
Body lift None for 1.6L 16V; 1 inch for 1.6L 8V, or hood clearancing
Made in Orem, Utah, USA

Vehicle fitment

The manufacturer fitment list covers the 1986–1995 Suzuki Samurai in Base, JA, JL, JS, JX and JX SE trims.

Fits the 1986–1995 Suzuki Samurai in Base, JA, JL, JS, JX and JX SE trims. Confirm fit for your vehicle’s year, model and trim before ordering.

Installation notes

A 1.6L 16V engine needs only minor trimming of the throttle cable bracket and intake tube supports. A 1.6L 8V engine calls for a 1 inch body lift, minor hood clearancing, or the separate SEU-AIA intake adapter. Verify throttle cable and cooling clearance before the first drive.

What’s included

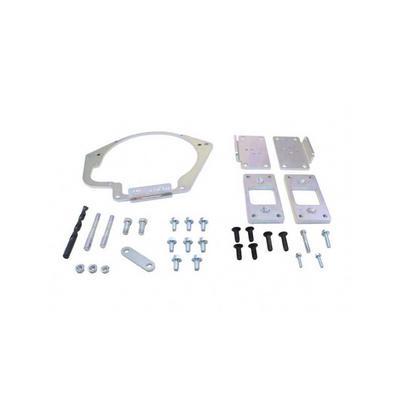

The kit includes all brackets needed to mount in the Samurai frame, along with HD motor mounts.

Not included: the 1.6L engine and transmission the kit adapts, and the SEU-AIA 1.3L carb to 1.6L 8V fuel injected air intake adapter, which is listed separately.

SKU: LROSEU-16SK-HDMM Categories: , ,

Fitment

VehicleYearsTrims
Suzuki Samurai1986–1995Base, JA, JL, JS, JX, JX SE

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does this kit fit a stock Suzuki Samurai?

Yes. It fits 1986–1995 Suzuki Samurai models in Base, JA, JL, JS, JX and JX SE trims. It is an engine swap adapter, so the Samurai's original engine is removed during installation.

Will a 1.6L 16V engine need a body lift?

No. A 1.6L 16V engine needs no body lift, only minor trimming of the throttle cable bracket and intake tube supports. A 1.6L 8V engine needs a 1 inch body lift, minor hood clearancing or the separate SEU-AIA adapter.

What does part number SEU-16SK-HDMM include?

It is the Low Range Offroad engine swap adapter kit with HD motor mounts, for a 1.6L Sidekick, Tracker or Vitara engine in a Samurai with a 5 speed manual. Confirm the kit's dimensions against your frame before ordering.

Is it worth replacing the Samurai's clutch and linkage during the swap?

Often yes. A worn clutch and linkage are easier to replace while the transmission is out. Check the clutch disc, pressure plate and throw-out bearing for wear, and confirm the linkage moves freely. Confirm the parts you need for your year, model and trim before ordering.
