Low Range Offroad Align-Correct HD Crossover High-Low Steering Kit – SST-ACCS-FK-RHD

Low Range Offroad

Shop Suzuki Samurai Steering Gear Box on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 1986–1995 Suzuki Samurai
  • Front steering kit built on Ackermann geometry
  • Uses FJ80 Land Cruiser tie rod ends and 1/4″ DOM tubing

Description

Overview

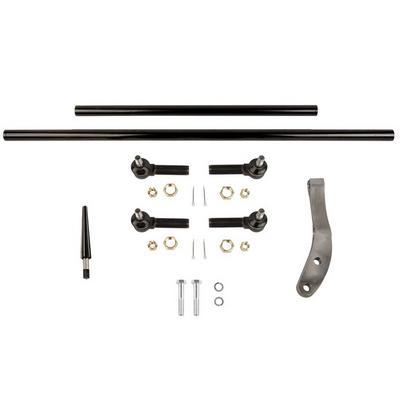

The Low Range Offroad Align-Correct HD Crossover High-Low Steering Kit SST-ACCS-FK-RHD is a front steering kit for the 1986–1995 Suzuki Samurai. Low Range Offroad designs it around Ackermann steering geometry and uses Toyota FJ80 Land Cruiser tie rod ends.

Low Range Off-Road spent about 3 years developing and testing this Samurai steering kit before releasing it publicly, starting work in 2010. Ackermann geometry turns the inside tire slightly sharper than the outside tire, so the tires do not slip or drag. That geometry reduces tire wear in sharp turns and improves off-road traction at full lock.

Key features

  • Uses the factory steering tie rod location to keep Ackermann steering geometry
  • FJ80 Land Cruiser tie rod ends with a 23mm thread
  • 1/4″ thick DOM steel tubing
  • Steering arm held by two M12 bolts, which Low Range says have a proof load rating over 24,000 lbs
  • Taper reamer for the factory arm, included in the Full Kit and Stage II Kit
  • Detailed instructions for reaming the pitman arm

Before you install

A steering kit changes how the front wheels are linked to the steering box, so it affects both on-road handling and what happens at full lock. On a solid axle Samurai, the tie rods, drag link and steering arm all carry load every time the wheel turns, and wear in any of those joints shows up as play in the wheel or a wandering steering feel. Before fitting any kit, inspect the existing joints, bushings and the pitman arm for looseness.

Tie rod ends are wear items and are often replaced at the same time as a steering kit. Check boots for tears, grease the joints as the design requires and look for play by hand with the wheels off the ground. Ackermann geometry only works as intended when the rest of the front end is in good shape, so alignment should follow any steering work.

  • Inspect the pitman arm and steering box for play
  • Replace worn ball joints and tie rod ends together
  • Check the steering stops at full lock
  • Plan for an alignment after installation

Specifications

Brand Low Range Offroad
Part number SST-ACCS-FK-RHD
Product Align-Correct HD Crossover High-Low Steering Kit
Location Front
Position Inner
Tie rod ends Toyota FJ80 Land Cruiser
Tie rod end thread 23mm
Tubing 1/4″ wall DOM steel
Steering arm bolts Two M12
Fitment type Direct fit

Vehicle fitment

It fits the 1986–1995 Suzuki Samurai.

The kit is built for the Samurai only, so other Suzuki and Toyota models are not covered. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The design keeps the factory tie rod location and uses a taper reamer to open up the factory steering arm so it accepts FJ80 tie rod ends. The Full Kit and Stage II Kit include that reamer, and detailed instructions show how to ream the pitman arm. Reaming the factory arm calls for the proper tools, and the steering should be aligned after installation.

What’s included

A taper reamer is included with the Full Kit and the Stage II Kit.

Fitment

VehicleYearsTrims
Suzuki Samurai1986–1995Base, JA, JL, JS, JX, JX SE

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What Suzuki does the Low Range SST-ACCS-FK-RHD steering kit fit?

It fits the 1986–1995 Suzuki Samurai. It is a front steering kit designed around the factory tie rod location, so the stock mounting points stay in use. Confirm fit for your vehicle's year, model and trim before ordering.

What is Ackermann steering geometry?

It is the geometry that lets the inside tire turn slightly sharper than the outside tire in a turn so the tires do not slip or drag. Low Range says its kit keeps this geometry by using the factory tie rod location.

What tie rod ends does this Samurai steering kit use?

The kit uses Toyota FJ80 Land Cruiser tie rod ends, which have a 23mm thread. A taper reamer opens the factory steering arm to accept them, and detailed instructions cover reaming the pitman arm.

How strong is the steering arm mounting?

The two M12 bolts that hold the steering arm have a proof load rating over 24,000 lbs. The arm is held in place by this two-bolt mounting, and the steering should be aligned after installation. Check the hardware before the first trail run.

How can I tell if the steering components need replacing?

Look for play at the steering wheel, a wandering feel on the highway and torn tie rod boots. Lift the front end and check each joint by hand for movement. Worn joints should be replaced before alignment, since a new kit will not correct a loose stock joint.
