Overview
The Kleinn 730 Onboard Air and Train Horn System, part number RAMHD-734, is a complete bolt-on onboard air kit and triple train horn for the 2014–2018 Ram 2500 and Ram 3500 HD trucks. It pairs a 150 PSI waterproof air compressor and 3-gallon air tank with a Model 730 Demon Black triple train horn, so one installed system can inflate tires, power air tools, supply air suspension and sound the horn.
Kleinn Train Horns designed this RAM HD Heavy Duty Onboard Air System for owners who want air and horn capability without fabricating their own mounting brackets. The compressor is rated at 100% duty cycle, and the horn produces 157.89 decibels. It fits 4-door short bed models.
Key features
- Custom designed bolt-on application that requires no drilling, welding or vehicle modification.
- 6350RC 150 PSI waterproof air compressor rated at 100% duty cycle.
- 3-gallon air tank for stored air supply.
- Model 730 Demon Black triple train horn producing 157.89 decibels.
- Remote mount quick connect tire inflator with a 30 ft. hose and storage bag.
- Powder coated mounting brackets.
- Made in the USA.
Choosing a horn and air setup
Heavy duty trucks often carry more weight and tow more, so the air supply on a 2500 or 3500 gets used for more than tires. Before buying, think about how you will use stored air. A tank that refills quickly helps when you air up after a trail run, power a tool, or run air suspension. Match the tire inflator hose length to the spots you reach most often around the truck.
After installation, inspect the airline where it crosses the frame and near the battery cables, since rubbing wears through jacket material. Check that the horn and compressor wiring is secured and protected from water, and reconnect the battery only after confirming every connection. Re-torque bracket bolts after the first few trips, because heavy trucks transmit more vibration to their mounts.
Specifications
| Brand | Kleinn Train Horns |
|---|---|
| Part number | RAMHD-734 |
| UPC | 819147011547 |
| Air compressor | 6350RC, 150 PSI maximum air pressure, waterproof |
| Duty cycle | 100% |
| Air tank volume | 3 gallon |
| Horn | Model 730 Demon Black triple train horn |
| Horn output | 157.89 decibels |
| Tire inflator | Remote mount quick connect |
| Inflator hose length | 30 ft. |
| Mounting brackets | Powder coated |
| Fitment type | Direct fit |
| Made in | USA |
Vehicle fitment
It fits the 2014–2018 Ram 2500 in Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Limited, Lone Star, Outdoorsman, Power Wagon, SLT and Tradesman trims. It also fits the 2014–2018 Ram 3500 in Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Limited, Lone Star, SLT and Tradesman trims.
Ram 3500 fit covers the trims above except Outdoorsman and Power Wagon. Confirm fit for your vehicle’s year, model and trim before ordering, particularly for earlier or later Ram generations and the Ram 1500.
Installation notes
The kit is a bolt-on installation with the included brackets, hardware, airline and wiring, so no drilling or welding is needed. Route the airline and wiring away from hot or moving parts, and follow the detailed instructions supplied with the kit. Disconnect the battery before running the horn and compressor wiring.
What’s included

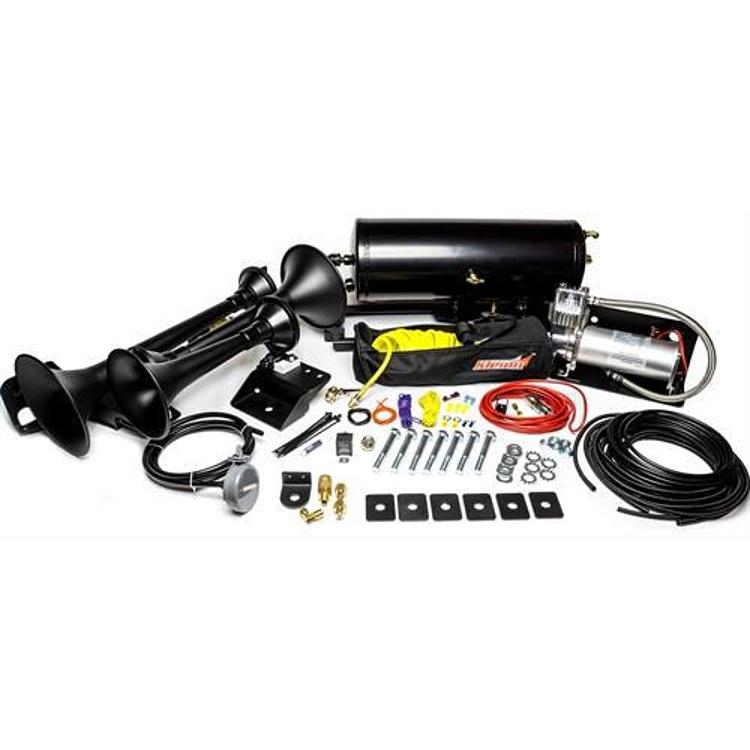

The kit includes the 6350RC 150 PSI waterproof air compressor, 3-gallon air tank, Model 730 Demon Black triple train horn, powder coated mounting brackets, remote mount quick connect tire inflator, 30 ft. hose, storage bag, all necessary hardware, airline, wiring and detailed instructions.
