Overview
The Kleinn RAM1500-230 is a bolt-on onboard air system that includes the Model 230 Beast triple train horn. The title and part number refer to the Ram 1500. Confirm fit for your vehicle’s year, model and trim before ordering.
Inside the kit is a 6350RC heavy-duty waterproof compressor rated at 150 PSI and 100% duty cycle, paired with a 3-gallon air tank that has a Cortec interior anti-corrosion coating. A remote quick connect tire inflator comes with a 30 foot hose, and Kleinn says everything needed arrives in one box.
Key features
- Model 230 Beast black high impact ABS triple train horn that produces a 154.3 dB blast
- 6350RC heavy-duty waterproof compressor at 150 PSI with 100% duty cycle
- 3-gallon air tank with Cortec interior anti-corrosion coating
- Remote quick connect tire inflator with 30 foot hose
- Custom powder coated mounting brackets and storage bag
Choosing a train horn air kit
A train horn kit combines a horn, an air compressor and a tank so the horn can sound from stored air. The horn is the loud part, but the compressor and tank decide how well the system holds pressure during repeated use. When comparing kits, look at how the tank, compressor and horn are matched and whether the brackets suit the cab style on your truck.
Mounting placement matters for airflow and noise. Keep the tank and compressor away from exhaust, hot components and moving suspension parts, and leave room around the compressor for air to move. Air lines should be secured along their run so they do not rub. Before first use, test the horn at low pressure and check every connection for leaks.
- Confirm the horn and compressor are sold as one matched kit
- Check bracket clearance around the cab and tank
- Route air lines away from heat and moving parts
- Test all connections for leaks before first use
Specifications
| Brand | Kleinn Train Horns |
|---|---|
| Part number | RAM1500-230 |
| UPC | 819147011516 |
| Horn | Model 230 Beast, black high impact ABS triple train horn |
| Horn output | 154.3 dB |
| Compressor | 6350RC, 150 PSI, waterproof, 100% duty cycle |
| Air tank | 3 gallon with Cortec interior anti-corrosion coating |
| Tire inflator | Remote quick connect, 30 foot hose |
| Mounting | Custom powder coated brackets, bolt-on |
Vehicle fitment
Confirm the year, model and trim against your truck before ordering.
Confirm which years and cab styles your mounting brackets suit before ordering.

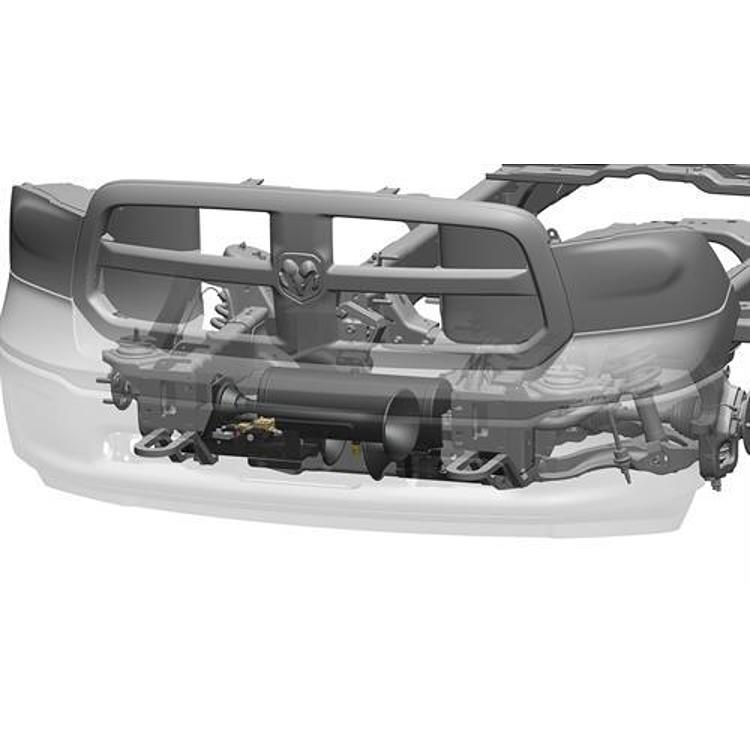

Installation notes
It bolts on with basic hand tools and needs no drilling. Route the air lines so they stay clear of hot or moving parts.

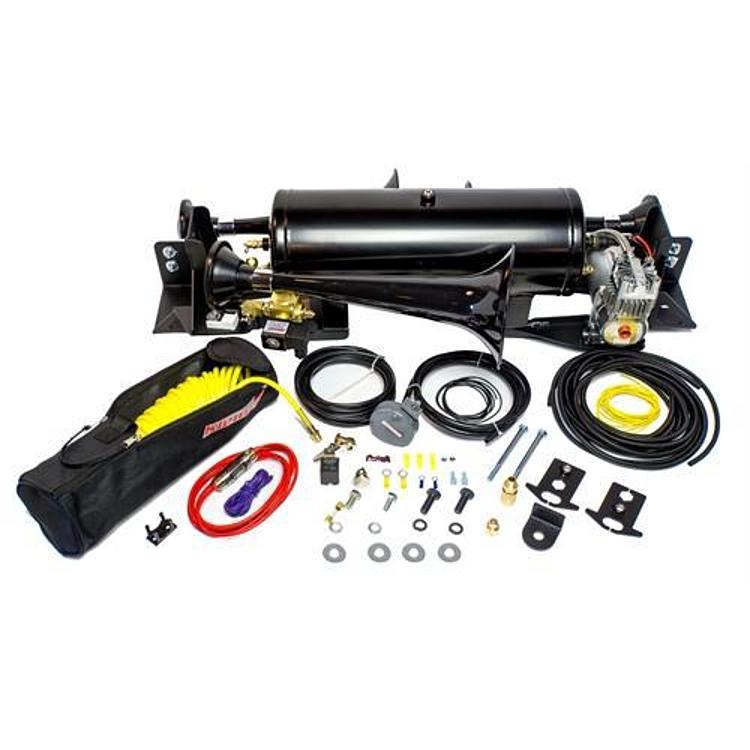

What’s included
Model 230 Beast triple train horn, 6350RC compressor, 3-gallon air tank, remote quick connect tire inflator with 30 foot hose, custom powder coated mounting brackets and a storage bag.
