Overview

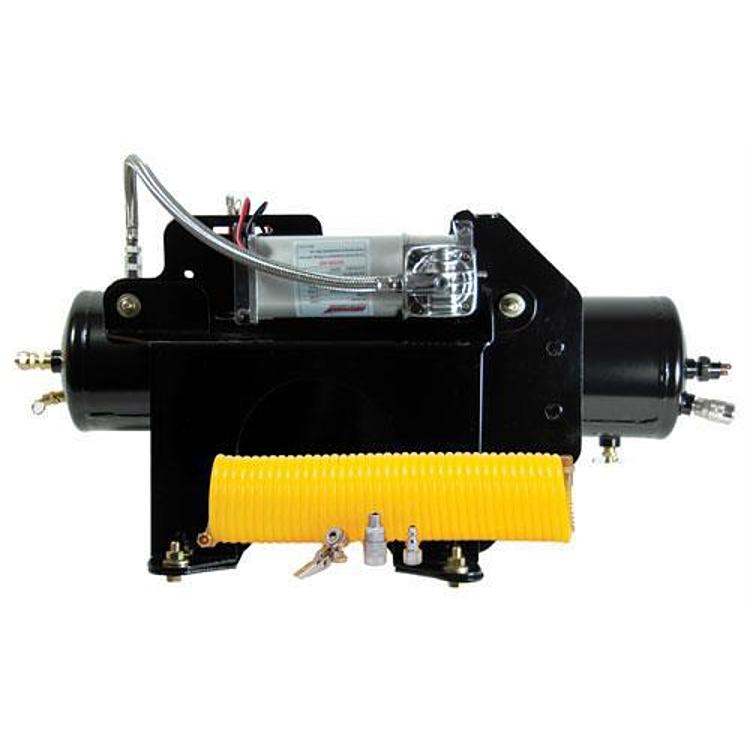

The Kleinn Train Horns HDOBA-6350 is a heavy-duty onboard air system for 2014 to 2016 Chevrolet Silverado 2500 HD and 3500 HD and GMC Sierra 2500 HD and 3500 HD trucks. It is built around a 150 PSI air compressor rated at 100% duty cycle and a 3.0 gallon air tank, and it is meant for tires up to 35 inches.
It is a 100% duty cycle compressor, inflator and monitoring system with a remote mount intake filter, a 110/145 PSI pressure switch, and a 35 foot tire inflator coil hose stored in a carrying case.
Key features
- Supports tires up to 35 inches
- 150 PSI air compressor with 100% duty cycle
- 3.0 gallon air tank
- 110/145 PSI pressure switch
- Remote mount intake filter
- 35 foot tire inflator coil hose with carrying case
- Mounting brackets and hardware included
Planning the air system install
An onboard air system adds a compressor, tank and filter to a heavy-duty truck, so placement matters as much as the parts themselves. Before mounting, pick a location that keeps the compressor and intake clear of mud, water and heat from the engine. Keep the air lines away from moving parts and sharp edges, and leave room to reach the tank drain and pressure switch for later checks.
After installation, check each fitting for leaks with soapy water and listen for air escaping at the connections. Inspect the intake filter regularly, especially on dusty trails, and replace it when it looks clogged. Hoses left coiled in a case should be checked for cracks before each trip, since a damaged hose loses pressure quickly.
- Keep the intake clear of mud, water and engine heat
- Check fittings for leaks after installation
- Inspect the intake filter on dusty trails
Specifications
| Brand | Kleinn Train Horns |
|---|---|
| Part number | HDOBA-6350 |
| UPC | 819147011134 |
| Tire size supported | Up to 35 inch |
| Compressor pressure | 150 PSI |
| Duty cycle | 100% |
| Air tank | 3.0 gallon |
| Pressure switch | 110/145 PSI |
| Intake | Remote mount intake filter |
| Tire inflator hose | 35 foot coil hose with carrying case |
| Included hardware | Mounting brackets and hardware |
Vehicle fitment
It fits 2014 to 2016 Chevrolet Silverado 2500 HD (High Country, LT, LTZ, WT) and 3500 HD (High Country, LT, LTZ, WT), and GMC Sierra 2500 HD (Base, Denali, SLE, SLT, WT) and 3500 HD (Base, Denali, SLE, SLT, WT).
Years from 2017 onward are not on this list, and the list covers HD models only. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Mounting brackets and hardware come with the system. Plan the compressor, tank and intake filter placement before mounting, and keep the air lines clear of hot or moving parts.
What’s included
The compressor, 3.0 gallon air tank, pressure switch, remote mount intake filter, 35 foot tire inflator coil hose with carrying case, mounting brackets and hardware.
Not included: A train horn is not part of this kit, which is an onboard air system only.
