G2 Ford 9 Inch 3.062 Inch Bore Nodular Iron 3rd Member Case – 66-2011BN

G2 Axle and Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • G2 Axle and Gear Ford 9 inch nodular iron 3rd member case, part number 66-2011BN
  • 3.062in. carrier bearing bore for factory and aftermarket differentials
  • Heavy duty nodular iron casting with support ribbing
  • Billet steel spanner nuts and improved pilot bearing support

Description

Overview

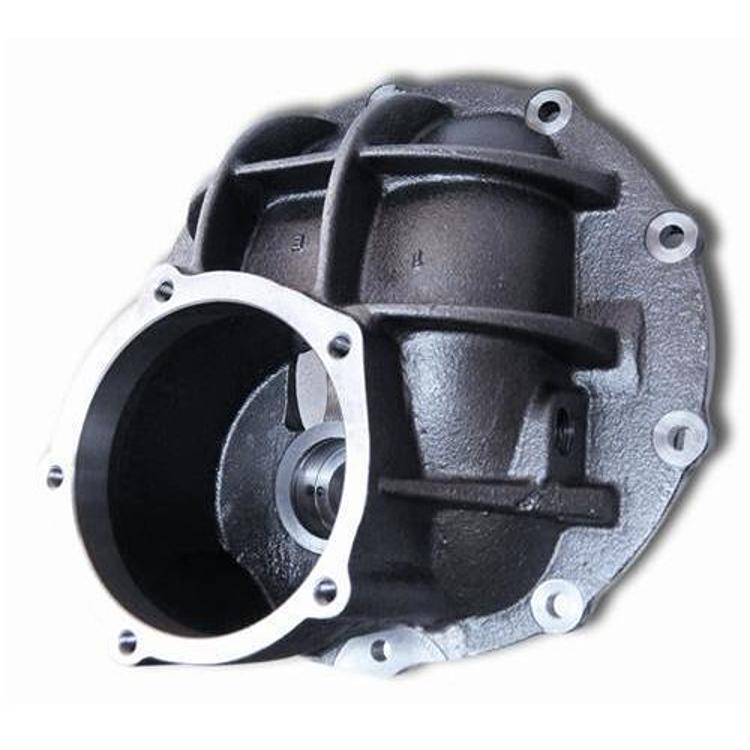

The G2 Axle and Gear 66-2011BN is a Ford 9 inch 3rd member case in nodular iron, with a 3.062in. carrier bearing bore. It is built to withstand high horsepower engines and large tires and is made for the rear housing type.

The nodular iron casting adds support ribbing and billet steel spanner nuts, and the pilot bearing support is improved. These features target the stress that high power and big tires place on a 3rd member.

Key features

  • Nodular iron casting for strength
  • 3.062in. carrier bearing bore for factory and aftermarket differentials
  • Support ribbing for added rigidity
  • Billet steel spanner nuts
  • Improved pilot bearing support

Setup and bearing considerations

The 3rd member case holds the carrier, ring gear and pinion. Its shape and bearing bores set how the gear set sits, so small errors in bore size or housing fit affect gear mesh and bearing life. Support ribbing helps the case resist flex under heavy loads, while spanner nuts hold the carrier bearings adjusted.

Setup is best handled by a gear shop. Pinion depth, bearing preload and ring gear backlash all need to be set together. Check the case for cracks around bolt bosses and for wear in the bearing bores before reusing it. A case that has spun a bearing cup should be inspected closely before it goes back into service.

  • Check the bore for wear before assembly
  • Look for cracks around bolt bosses
  • Set bearing preload with a gear shop

Specifications

Brand G2 Axle and Gear
Part number 66-2011BN
UPC 631410096521
Axle application Ford 9 inch
Housing type Rear
Material Nodular iron
Carrier bearing bore 3.062in.
Spanner nuts Billet steel
Pilot bearing support Improved

Vehicle fitment

It is sized for the Ford 9 inch rear housing. Match the 3.062in. bore and housing to your axle before fitting.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

This case houses the carrier, ring gear and pinion, so gear setup and bearing preload should be handled by a professional gear shop. Verify the bore size before assembling anything into the case.

What’s included

One G2 nodular iron 3rd member case. Not included: the carrier, ring and pinion, and bearings, which are not part of this case.

SKU: G/266-2011BN Category:

Specification

Shipping weight 30.00 lbs
Package dimensions 18.00 × 12.00 × 12.00 in
brands

Questions & Answers

What carrier bearing bore does the 66-2011BN have?

The bore is 3.062in. It is usable with factory and aftermarket differentials. Confirm the bore matches your carrier bearings before fitting.

Is this case nodular iron or aluminum?

Nodular iron. It is a heavy duty nodular iron casting with support ribbing, built for high horsepower engines and large tires. The design also has billet steel spanner nuts and improved pilot bearing support.

Is it a front or rear housing?

Rear. The Ford 9 inch housing type is rear, so this case is not a front housing unit. Check the housing type against your axle before fitting, and confirm the carrier fits the case.

Why does the carrier bearing bore size matter?

The bore holds the carrier bearing cups, and a mismatch leads to a loose or overtight fit. Measure the bearing cups and compare them with the bore before assembly, and have a gear shop verify the fit.
