Overview

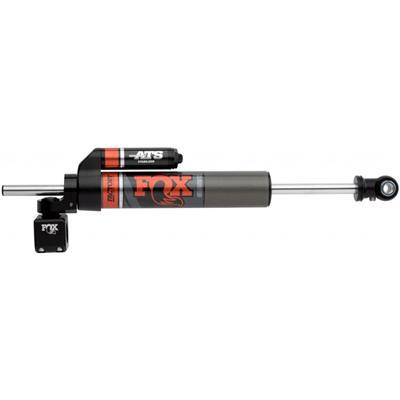

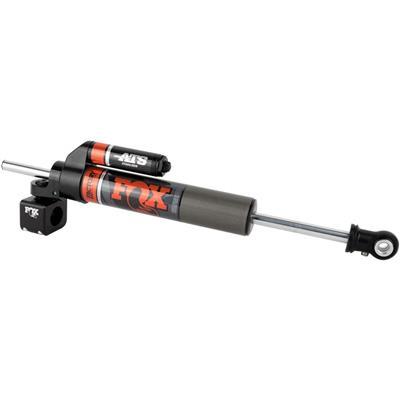

The FOX 983-02-145 is a Factory Race Series 2.0 ATS steering stabilizer for 2007–2018 Jeep Wrangler (JK) models, in two-door and Unlimited four-door body styles.
Conventional steering stabilizers build pressure as the shaft moves into the body, and that pressure creates a push or pull steering force the driver feels as the stabilizer returns to center. The ATS design uses an adjustable through shaft, which removes the fluid displacement across the stabilizer’s full travel in both directions.
The external piggyback reservoir adds fluid capacity. An internal floating piston separates the oil from the nitrogen gas charge, which FOX says eliminates cavitation. An external adjuster gives 24 clicks of adjustment, so the feel can be tuned to the driving style and vehicle setup.
It is a single bolt-on stabilizer, so it does not need the extra space that a dual opposing setup requires.
Key features
- Adjustable through shaft (ATS) design
- External piggyback reservoir for added fluid capacity
- Internal floating piston separates oil from the nitrogen charge
- External adjuster with 24 clicks
- Single bolt-on stabilizer
Tuning the damping feel
Adjustable stabilizers let the driver set how firmly the steering responds. With an external adjuster, changes can be made without removing the unit, so the feel can be matched to a daily commute, a trail run or a heavier tire setup. Start in the middle of the range and adjust in small steps, then drive the same road to compare. Firmer settings resist movement more, which can help with wander at speed but may be noticeable on tight trails.
The external reservoir keeps extra fluid on hand, which helps the stabilizer work through repeated movement. Inspect the reservoir hose and fittings for seepage during routine checks, and keep the unit clean so dirt does not reach the shaft seal. Stabilizer bushings and the steering box mount should be checked alongside it, since loose parts can mimic a stabilizer problem.
- Adjust in small steps
- Inspect the reservoir hose and fittings
- Keep the shaft clean and free of grit
Specifications
| Brand | FOX |
|---|---|
| Part number | FOX983-02-145 |
| Series | Factory Race Series 2.0 |
| Design | Adjustable through shaft (ATS) |
| Adjustment | External, 24 clicks |
| Reservoir | External piggyback |
| Configuration | Single, bolt-on |
Vehicle fitment
It fits 2007–2018 Jeep Wrangler (JK) models, in two-door and Unlimited four-door body styles.
The list does not include the Wrangler JL or Gladiator JT. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
This is a single bolt-on stabilizer, so it avoids the second mounting point that conventional dual opposing setups need. Those dual setups require extra mounting hardware and space.

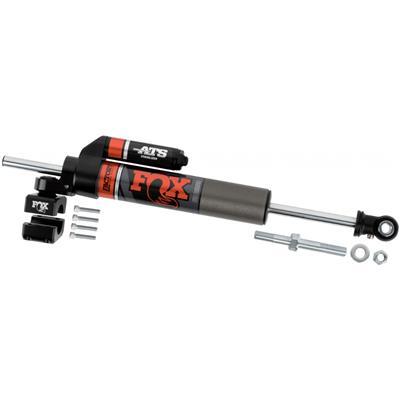

What’s included
The unit is the stabilizer with its external reservoir and adjuster. Check the package contents against your installation before starting, including any brackets or hardware you need.
