Overview

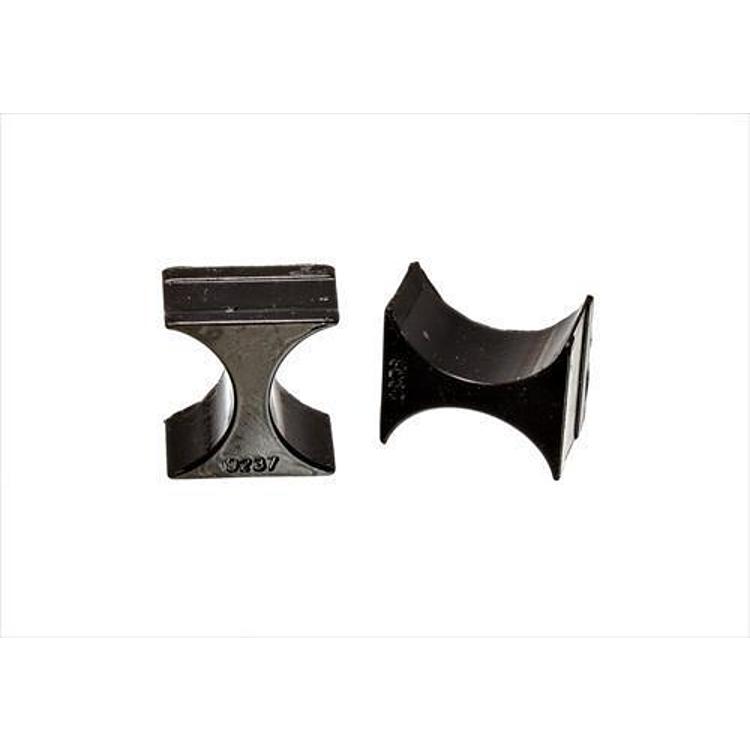

The 9.9161G is a shock reservoir isolator for mounting an external shock reservoir to the shock tube or a vehicle roll cage in harsh off-road conditions. It is a universal fit part, so it is not designed for one specific vehicle.
Energy Suspension offers this isolator in several diameter combinations, sold in sets of two. Its hose clamp channels on the sides are meant to make installation simpler, and the HYPER-FLEX polyurethane is intended to hold its shape and help prevent expensive shock damage.
Key features
- Hose clamp mounting channels on the sides
- HYPER-FLEX polyurethane construction
- Holds its shape in extreme off-road applications
- Several diameter combinations available
- Sold in sets of two
Diameter matching and clamp routing
Diameter matching is the first step for any reservoir isolator. The isolator must hold the reservoir snugly against the tube or cage without deforming, and a mismatch leaves the reservoir free to rattle or chafe. Measure the reservoir and the mounting point before choosing the combination, and plan the hose route so the reservoir sits clear of moving parts through full travel.
Route the hose clamps through the side channels so they sit flat and do not dig into the material. Tighten each clamp until the isolator holds firm, then recheck after the first few runs. Inspect the isolator at every service for cracks, flattening, or chafing, and replace it if the reservoir begins to shift. Keep hose clamps free of rust and replace any that show corrosion.
Specifications
| Brand | Energy Suspension |
|---|---|
| Part number | 9.9161G |
| UPC | 703639739418 |
| Type | Shock reservoir isolator |
| Material | HYPER-FLEX polyurethane |
| Diameter options | Several combinations |
| Quantity | Sets of two |
| Fitment | Universal fit |
Vehicle fitment
It is a universal fit part with no year, make or model tied to it. Pick the diameter combination that matches your reservoir and shock tube or roll cage before you order.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Route the hose clamps through the side channels to secure the isolator to the tube or cage. Check the fit against the reservoir before tightening the clamps.
What’s included
Sets of two isolators. Plan on sourcing hose clamps separately before installing.
