Overview

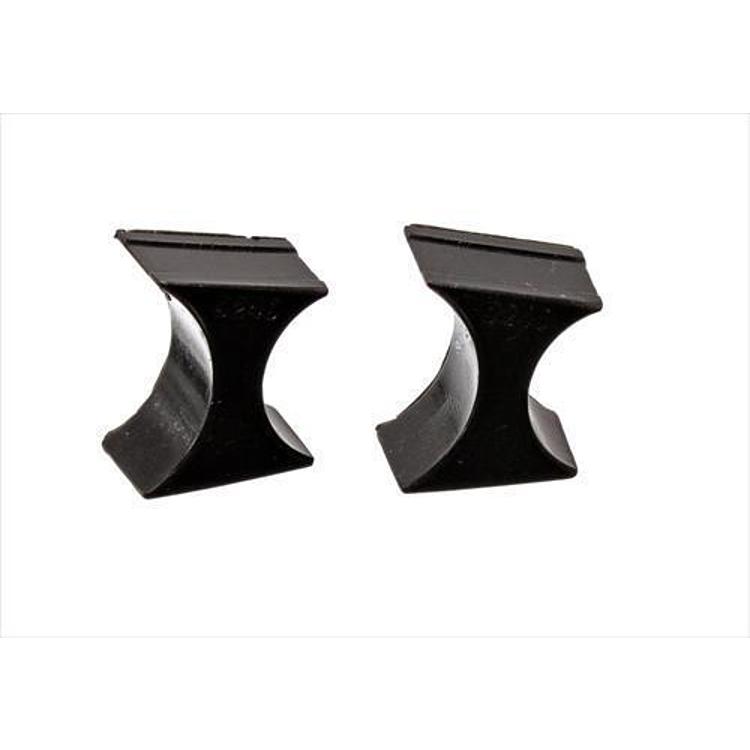

The Energy Suspension 9.9162G is a shock reservoir isolator for mounting external shock reservoirs to the shock tube or to a roll cage in extreme off-road use. Each isolator has a 2.5 inch outer diameter and a 1.5 inch inner diameter, and they are sold as a pair.
It is molded from HYPER-FLEX polyurethane, which is designed to hold its shape. The design is meant to help protect the shock from damage caused by a loose reservoir.
Key features
- Mounts external shock reservoirs to the shock tube or a roll cage
- Hose clamp mounting channels on the sides for easier installation
- HYPER-FLEX polyurethane body that holds its shape under load
- Available in several diameter combinations; this part is 2.5 inch outer by 1.5 inch inner
Reservoir movement and mounts
External reservoirs move constantly as the shock cycles, and that movement can wear the mounting point over time. A reservoir isolator separates the reservoir from a rigid tube or cage so impacts are absorbed rather than passed straight through the hardware. Choosing the right diameter pairing and keeping the mount tight help the setup stay quiet and steady on rough terrain.
Inspect the isolator every time the shock comes off for service. Look for cracks, flattening, or chafing where it contacts the reservoir and tube. Check the hose clamps for corrosion and sharp edges that can cut the material. If the reservoir has play in its mount, replace the isolator before it wears through, because loose reservoirs tend to rub the shock body and the nearby hose.
Specifications
| Brand | Energy Suspension |
|---|---|
| Part number | 9.9162G |
| UPC | 703639736257 |
| Type | Shock reservoir isolator |
| Outer diameter | 2.5 inch |
| Inner diameter | 1.5 inch |
| Material | Poly (HYPER-FLEX polyurethane) |
| Color | Black |
| Quantity | Sold as a pair (set of two) |
Vehicle fitment
It is not built for a specific vehicle. It mounts to the shock tube or roll cage, so compatibility depends on your reservoir and shock setup.
Measure your reservoir and mounting point before ordering. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The side channels accept hose clamps, which make installation simpler. Check that the 2.5 inch outer diameter suits your reservoir and the 1.5 inch inner diameter suits your shock or mount.
What’s included
A pair of shock reservoir isolators, sold as sets of two.
Not included: Plan on sourcing hose clamps separately before installing.
