Overview

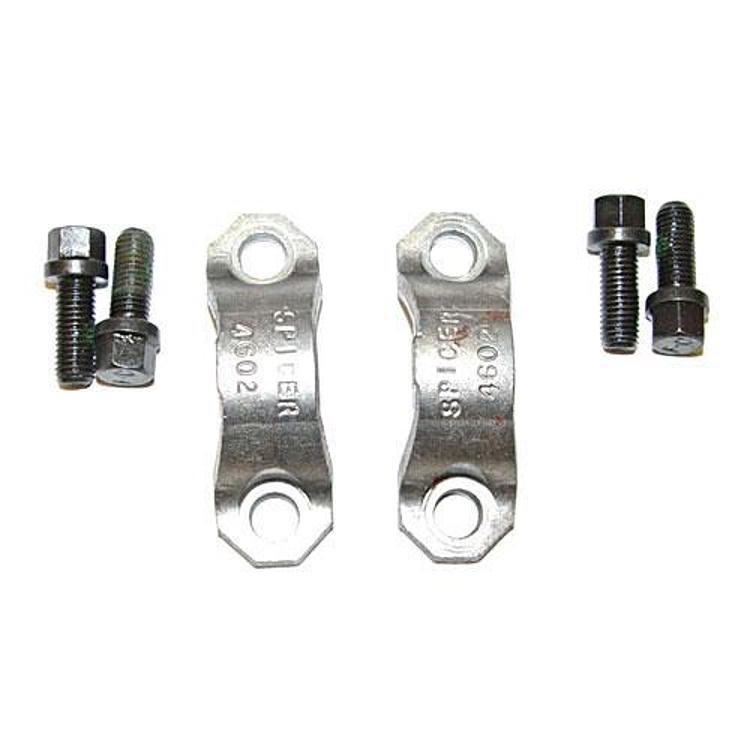

The Dana Spicer 1350/1410 U-Joint Strap Kit, part number 3-70-28X, is for Dana 1350 big cup and 1410 series strap and bolt style pinion yokes and transfer case yokes. It includes 2 straps and 4 bolts for retaining the U-joint.
The bolts are 5/16-24 fine thread grade 8, set 1.806 inches bolt center to center, and the kit fits a 1.187 inch bearing cap. It is a universal fit kit.
Key features
- Designed for Dana 1350 big cup and 1410 series yokes
- Grade 8 retaining bolts with 5/16-24 fine threads
- 1.806 inch bolt center to center
- Includes 2 straps and 4 bolts
Securing the U-joint cap
Strap-style retention holds the U-joint cups in the yoke ears, so the strap and bolt set carries the load that would otherwise push a cup out. A 1350 big cup or 1410 pinion yoke sees high torque in heavy use, so the retention hardware needs to seat square and be tightened properly. Clean the yoke ear and cup surfaces before fitting.
Bolt centers and cap size control how the strap seats, so measure the cup bore and yoke ear spacing before tightening. Worn yokes can allow a cup to walk out of position under load, which shows as clunking when shifting. Replacing a worn joint and its straps together gives a cleaner fit than reusing old hardware.
- Clean cup and strap contact surfaces
- Seat straps square to the yoke ears
- Use a torque wrench on grade 8 bolts
- Replace straps if the bolts were stretched
Specifications
| Brand | Dana Spicer |
|---|---|
| Part number | 3-70-28X |
| UPC | 23913123086 |
| Yoke compatibility | Dana 1350 big cup and 1410 series pinion and transfer case yokes |
| Bearing cap fit | 1.187 inches |
| Bolt center to center | 1.806 inches |
| Bolts | 5/16-24 fine thread, grade 8 |
| Included | 2 straps and 4 bolts |
Vehicle fitment
This kit is universal fit and is not vehicle-specific. Fit is by yoke type, not by vehicle model.
Check the yoke type and bearing cap size before ordering. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Confirm that the bearing cap measures 1.187 inches and that the yoke is a 1350 big cup or 1410 series design before installing the kit.
What’s included
2 straps and 4 grade 8 bolts.
