Overview
The Curt OEM puck system 2-5/16 inch gooseneck kit (part number CRT60639) adds a gooseneck ball and safety chain loops to a pickup truck that already has the factory gooseneck hitch puck system. It is for Chevy, GMC, Ford or Nissan trucks with the 5th wheel gooseneck hitch prep package. The ball is rated for 38,000 lbs. GTW, which means gross trailer weight.
The ball drops into the center puck and locks with a simple quarter-turn of its lever. The components come in a durable carrying case, so the ball and safety chain anchors can be stored when the truck is not towing.
Key features

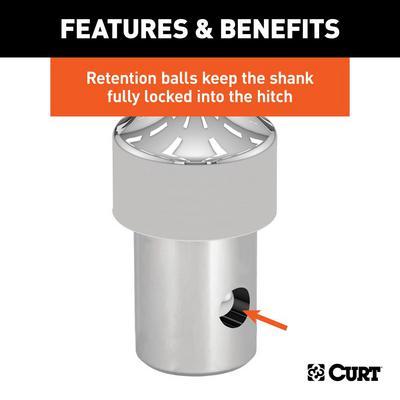

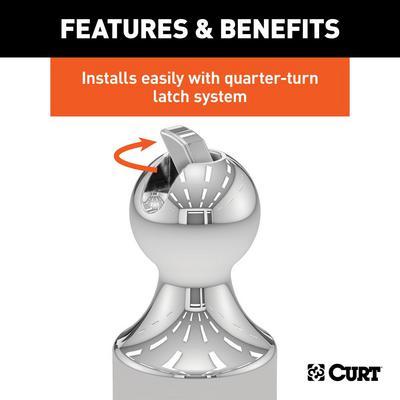

- Patented lever and retainer ball design locks into the center puck with a quarter-turn
- Forged and machined steel alloy gooseneck ball with polished chrome plating
- Ball is rated for 38,000 lbs. GTW and 9,500 lbs. vertical load
- Rubber hole cover with a friction-fit installation keeps the ball hole protected
- Durable storage case for the ball and safety chain anchors
Keeping the puck system in service
The puck system takes the load of a gooseneck trailer, so the ball, lever and retainer balls all need to be in good condition. Look for wear on the ball surface, bent or loose retainer balls and any play in the lever before each tow. A ball with a worn or pitted surface should be replaced rather than used with heavy loads.

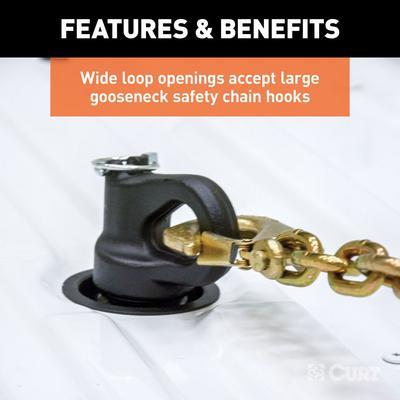

Storage matters too. When the ball is off, keep the rubber hole cover fitted so the puck opening stays clean, and store the ball and safety chain anchors in the carrying case. Check the safety chain loops for corrosion, since they are the backup connection if the ball fails.
- Check the lever locks fully before every tow
- Look for wear on the ball surface and retainer balls
- Inspect the safety chain loops for corrosion

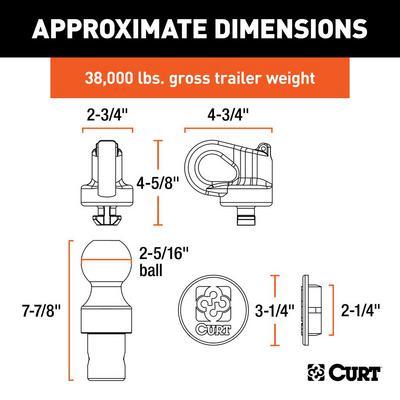

Specifications
| Brand | Curt Manufacturing |
|---|---|
| Part number | CRT60639 |
| Ball diameter | 2-5/16″ |
| Gooseneck ball rating | 38,000 lbs. GTW |
| Vertical load rating | 9,500 lbs. |
| Ball material | Forged and machined steel alloy |
| Ball finish | Polished chrome plating |
| Testing | U.S. VESC V-19 specifications |
| Locking | Lever with retainer balls, quarter-turn lock |
Vehicle fitment
It is for Chevy, GMC, Ford and Nissan pickups with the 5th wheel gooseneck hitch prep package. Confirm that your truck has the factory gooseneck puck system before installing.
Trucks without the factory gooseneck OEM puck system are not covered by this kit. Confirm your vehicle’s year, model and trim before ordering.
Installation notes

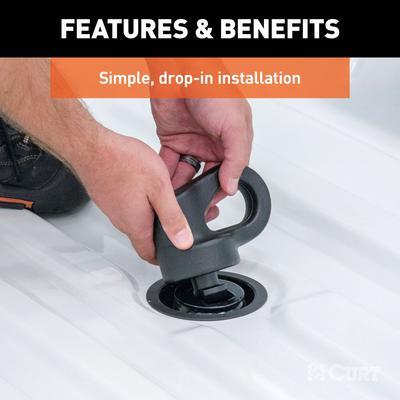

The factory gooseneck OEM puck system must already be installed in the truck, because the ball drops into its center puck. Seat the ball fully, turn the lever a quarter-turn to lock it, and fit the rubber hole cover with its friction fit when the ball is removed. Check that the lever has locked before every tow.
What’s included

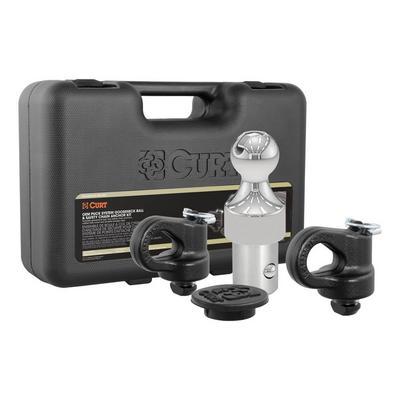

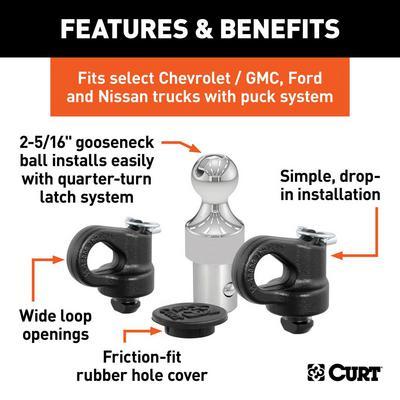

The kit includes the gooseneck ball, gooseneck safety chain loops, a rubber hole cover and a durable carrying case for storage.
Not included: the factory gooseneck OEM puck system, which the installation requires, and the trailer’s gooseneck coupler.
