Overview

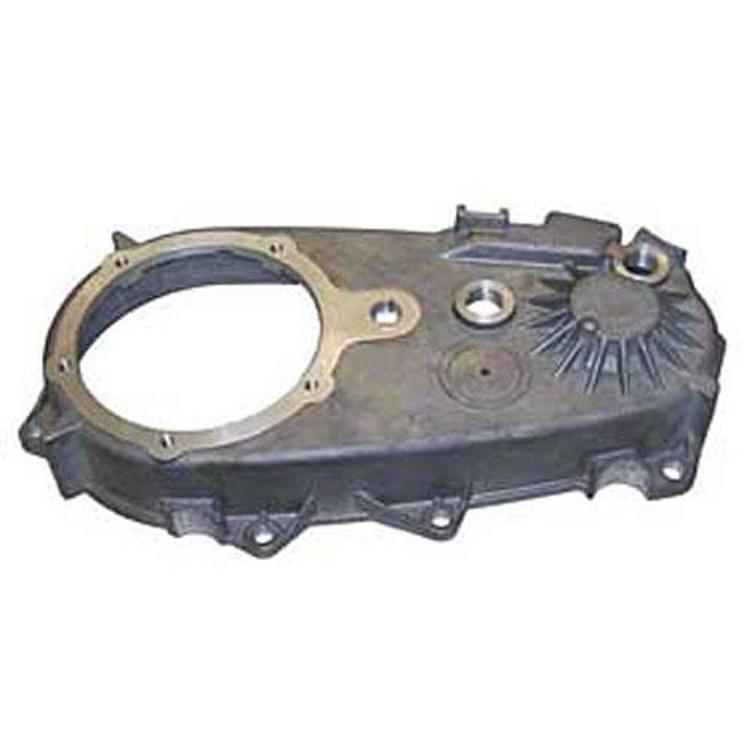

The Crown Automotive NP231 rear case half, part 83503153, is a replacement rear housing for the NP231 transfer case. The rear output shaft bearing comes preloaded, and the front output shaft rear (inner) bearing is already installed, so both bearings are in the case. It fits the 1987–1996 Jeep Cherokee (XJ) and the 1987–1995 Jeep Wrangler (YJ).
The ID tag from the old rear case can be moved onto this one. The shift rail bushing and the two case dowels can be transferred from the old case or bought separately, giving owners of XJ and YJ models a clear swap path.
Key features
- Rear output shaft bearing comes preloaded in the case
- Front output shaft rear (inner) bearing already installed under part 4269189
- Case has a provision for the ID tag to be moved from the old rear case
- Shift rail bushing and case dowels can be transferred from the old case or purchased separately
Swapping parts between cases
When a rear case half is replaced, the parts that locate the case and carry the shift action are often moved from the old unit. The shift rail bushing and case dowels are small, but they position the case accurately, so clean their bores and check for wear before installing them. A loose dowel can throw off alignment and make the case bind when bolted to the front half.
Owners of XJ and YJ transfer cases should also check the shift linkage and the output shaft seals while the rear half is off, since those are commonly replaced in the same job. Wipe away old sealant completely, apply fresh sealant where the case halves meet, and tighten the bolts in a crisscross pattern so the case seats evenly.
- Clean dowel and bushing bores before fitting
- Inspect shift linkage while the case is open
- Use fresh sealant at the case joint
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | 83503153 |
| UPC | 848399025279 |
| Transfer case | NP231 |
| Component | Rear case half |
| Bearings | Rear output shaft bearing preloaded; front output shaft rear (inner) bearing already installed, part 4269189 |
| Case dowels | 2, transferable from the old case, or part 4116310 |
| Shift rail bushing | Transferable from the old case, or part 4338945 |
Vehicle fitment
It fits the 1987–1996 Jeep Cherokee (XJ) in Base, Briarwood, Chief, Classic, Country, Laredo, Limited, Pioneer, SE and Sport trims, and the 1987–1995 Jeep Wrangler (YJ) in Base, Islander, Laredo, Renegade, Rio Grande, S, SE, Sahara and Sport trims.
Wrangler TJ (1997–2006) and Wrangler JK (2007–2018) models fall outside the years this case covers. Check your year, model and trim before ordering.
Installation notes
Move the shift rail bushing and the two case dowels from the old case into this one, or order them as parts 4338945 and 4116310. The dowels may instead be installed into the front case half, in which case they are left alone during this swap. Transfer the ID tag from the old rear case before reassembly.
What’s included
One NP231 rear case half with the rear output shaft bearing preloaded and the front output shaft rear (inner) bearing already installed under part 4269189. The case includes the provision for the ID tag.
Not included: the shift rail bushing (part 4338945) and the case dowels (part 4116310), which must come from the old case or be purchased separately.
