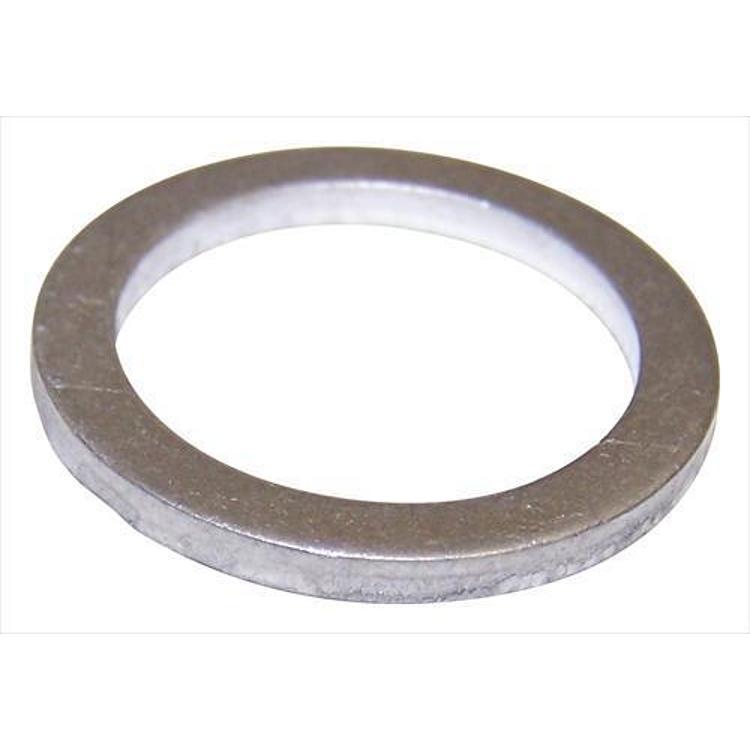

Crown Automotive Filler/Drain Plug Gasket – 83500513

Crown Automotive

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Filler and drain plug gasket for AX4, AX5 and A15 manual transmissions
  • Part number 83500513, direct fit per the manufacturer
  • Fitment lists Dodge Dakota, Cherokee XJ, Comanche, Wrangler TJ and YJ
  • UPC 848399023459

Description

Overview

The Crown Automotive 83500513 is a filler and drain plug gasket for AX4, AX5 and A15 manual transmissions. It fits several Jeep and Dodge trucks and SUVs from the 1980s through early 2000s.

A gasket seals the plug against the case, so it is normally replaced whenever the plug comes out. Compare your vehicle’s year and model before ordering, since the fit varies by model and year.

Key features

  • Filler and drain plug gasket
  • Fits AX4, AX5 and A15 transmissions
  • Direct fit per the manufacturer
  • Part number 83500513 from Crown Automotive

Gasket replacement and sealing

A filler and drain plug gasket works by compressing between the plug and the transmission case. Once compressed, the material takes a set and no longer seals as well, so a gasket that has been removed should not be counted on for a second use. Typical leak sites are the rim of the drain opening and the filler opening, where oil collects at the low side of the case.

Before fitting a new gasket, clean both the plug face and the case surface so no old material or grit sits between them. Check that the threads are clean and undamaged, and seat the gasket flat before tightening. Tightening should be even and to the specification for your transmission. A fresh gasket paired with a clean case is the most reliable way to avoid seepage after a fluid change.

Specifications

Brand Crown Automotive
Part number 83500513
UPC 848399023459
Component Filler and drain plug gasket
Transmissions AX4, AX5 and A15
Fitment type Direct fit

Vehicle fitment

It fits the Dodge Dakota (1994-1999), Cherokee XJ (1984-1998), Comanche (1986-1992), Wrangler TJ (1997-2002) and Wrangler YJ (1987-1995).

Confirm fit for your vehicle’s year, model and trim before ordering, particularly for Wrangler JK, Grand Cherokee and Wagoneer models.

Installation notes

Fit a new gasket each time the plug is removed, because a compressed old gasket may not seal the filler or drain opening.

What’s included

The item is the gasket only. Plan to have the drain plug on hand, and check the package contents against your installation before starting.

SKU: CRO83500513 Category:

Specification

Shipping weight 1.00 lbs
Package dimensions 1.00 × 1.00 × 0.30 in
brands

Fitment

VehicleYearsTrims
Dodge Dakota1994–1999Base, SLT, Sport, WS
Jeep Cherokee (XJ)1984–1998Base, Briarwood, Chief, Classic, Country, Laredo, Limited, Pioneer, SE, Sport
Jeep Comanche1986–1992Base, Chief, Custom, Eliminator, Laredo, Pioneer, X, XLS
Jeep Wrangler (TJ)1997–2002SE, Sahara, Sport, X
Jeep Wrangler (YJ)1987–1995Base, Islander, Laredo, Renegade, Rio Grande, S, SE, Sahara, Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Which transmissions does the 83500513 gasket fit?

It fits AX4, AX5 and A15 manual transmissions. The part number is 83500513 for this filler and drain plug gasket.

Does the 83500513 fit a Dodge Dakota?

Yes. The manufacturer fitment list includes the Dakota from 1994 to 1999 with Base, SLT, Sport and WS trims. Confirm your year and trim before ordering.

Is the drain plug included with this gasket?

The item is a gasket only, so the drain plug is supplied separately. Check the package contents against your installation before starting.

Can an old gasket be reused?

Usually not. Compressed gaskets lose their sealing ability after removal, and reusing one can allow leaks at the filler or drain opening. Clean the mating surfaces and fit the new gasket flat before tightening.
