Overview

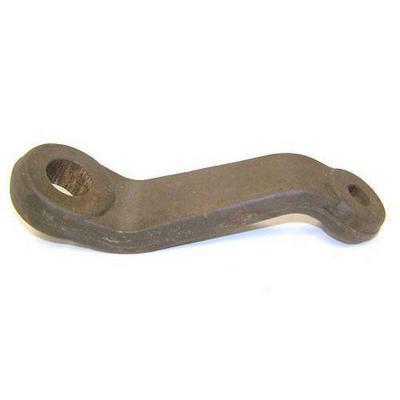

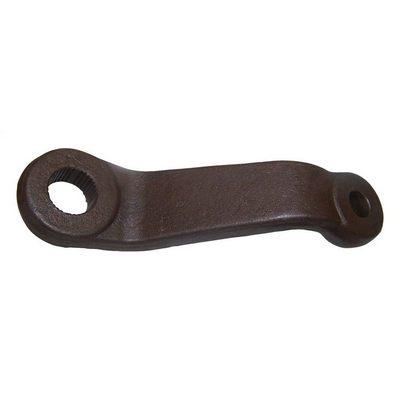

The Crown Automotive manual steering pitman arm, part number CRO52000616, is a stock replacement arm for manual steering Jeep Cherokee XJ models. The pitman arm connects the steering gearbox to the rest of the steering linkage.
This is a stock replacement drop rather than a drop-style arm. It is intended for manual steering setups without power steering.
Key features
- Designed for manual steering models without power steering
- Stock replacement drop
- Direct fit for the listed Cherokee XJ applications
- Cherokee XJ 84-93 and Comanche MJ 86-92 applications
Steering geometry after a swap
The pitman arm connects the steering gearbox output to the drag link, so it carries steering effort through the whole front end. Because it is a stock replacement drop, it is meant to keep the original steering geometry. Wear in the drag link, tie rods or ball joints can change how the steering feels even when the arm itself is sound.
Removing the arm usually requires a puller, so plan for the tool before starting. After the new arm is installed, have the steering and alignment checked. Work on the steering linkage should be done with the vehicle safely supported and the steering wheel centered.
- Check for play where the arm meets the sector shaft
- Inspect the drag link and tie rods at the same time
- Have alignment checked after the arm is replaced
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | CRO52000616 |
| Steering type | Manual steering |
| Drop | Stock replacement |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 1984–1988 Jeep Cherokee (XJ) in Base, Chief, Laredo, Limited and Pioneer trims. Confirm fit for your vehicle’s year, model and trim before ordering.
Not covered: power steering models, and other Jeep models outside the listed years. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Pitman arms are typically removed with a puller, so have that tool ready before starting. Steering geometry changes when this arm is replaced, so have the steering checked after installation.
What’s included
The package is the pitman arm itself. Check the contents against your installation before starting.
