Overview

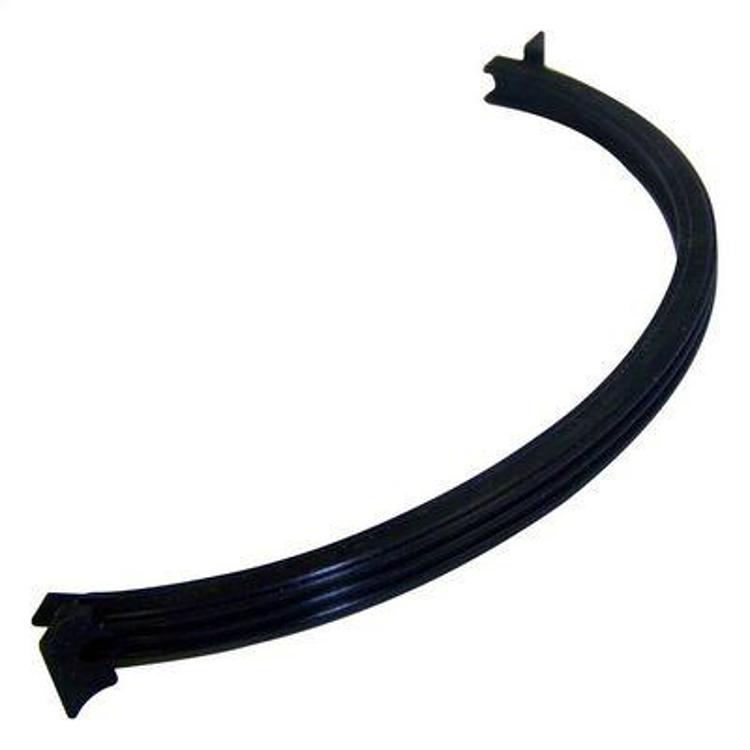

The Crown Automotive 33004732 is a rear engine oil pan seal for 2.5L engines that use a 4-piece oil pan gasket. It fits 1991-1993 Jeep Cherokee XJ, Comanche and Wrangler YJ models.
It is a rear oil pan gasket meant for vehicles that use a 4-piece oil pan gasket design. Crown Automotive shows Direct Fit fitment for these models.
Key features
- Rear oil pan seal for 4-piece oil pan gasket designs
- Built for the 2.5L engine
- Direct Fit fitment shown by the manufacturer
- Part number 33004732 with UPC 848399011937
Replacing a rear pan seal
A rear oil pan seal usually leaks at the back edge where the pan meets the block and transmission housing. Oil can run down and collect near the bellhousing, so a wet spot there is often the first sign. Before replacing it, clean the mating surfaces thoroughly and check for warped flanges, because a seal cannot seal against a damaged surface.
Tighten pan bolts evenly and avoid overtightening, which can crush a gasket or distort the pan. Refill with fresh oil and run the engine to check for leaks at the rear of the pan once it has warmed up.
- Clean the pan and block surfaces with a plastic scraper
- Inspect the old seal for cracks or hardened sections
- Torque the pan bolts in a crisscross pattern
- Recheck for leaks after a short drive
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | 33004732 |
| UPC | 848399011937 |
| Part type | Rear oil pan seal |
| Engine | 2.5L |
| Pan gasket design | 4-piece |
| Fitment type | Direct Fit |
Vehicle fitment
The manufacturer fitment list for this seal includes:
- 1991-1993 Jeep Cherokee (XJ), Base
- 1991-1992 Jeep Comanche, Base and Pioneer
- 1991-1993 Jeep Wrangler (YJ), Base, Islander, S and Sahara
Years outside 1991 to 1993 are not on the list, and Wrangler TJ models are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Because this seal is meant for a 4-piece pan gasket layout, compare the old rear seal with the new part before installing it.
What’s included
One rear seal is supplied. Check the package contents against your installation before starting.
