Overview

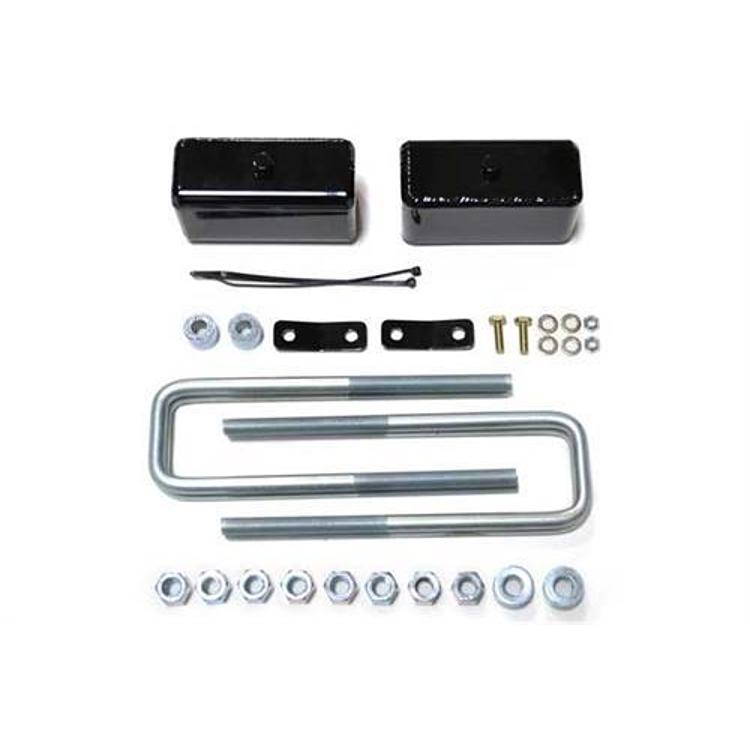

The California Super Trucks 4 inch lift block kit, part number CSS-T14-5, raises the rear of a leaf spring vehicle by 4 inches. Extended U-bolts are needed with this kit.
It is a direct fit kit for rear leaf springs. Confirm your truck uses leaf springs before fitting the kit.
Key features
- 4 inch lift for rear leaf springs
- Extended U-bolts required
- Designed for leaf spring rear suspension
- Direct fit kit
Driveline and axle checks
Raising the rear of a leaf spring truck changes the angle between the transmission output and the pinion, which can cause driveline vibration if it moves too far from its original position. Check the driveshaft angle after the lift is installed, and look for any signs of shudder at highway speeds. Driveline work is often easier to plan when the truck is already off the ground.
Leaf spring lifts also shift the axle position, which affects the brake lines, the rear shock geometry and the bump stop clearance. Extended U-bolts need to hold the axle firmly without pinching the spring pack, so check their length and thread engagement before tightening. Recheck torque after the first few drives, as new hardware can settle.
- Measure driveshaft angle after the lift
- Check brake line length and routing
- Inspect U-bolt thread engagement
- Recheck torque after early driving
Specifications
| Brand | California Super Trucks |
|---|---|
| Part number | CSS-T14-5 |
| UPC | 70000678333 |
| Lift height | 4 inches |
| Position | Rear |
| Suspension type | Leaf spring |
| Fitment | Direct fit |
Vehicle fitment
The stated fit is direct fit, and no vehicles are named. A 4 inch lift changes rear suspension geometry, so the match depends on your truck’s own setup.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Extended U-bolts are needed, so confirm their length before the block goes in. After raising the rear by 4 inches, check driveline angles.
What’s included
Not included: Extended U-bolts, which must be obtained separately.
