Overview

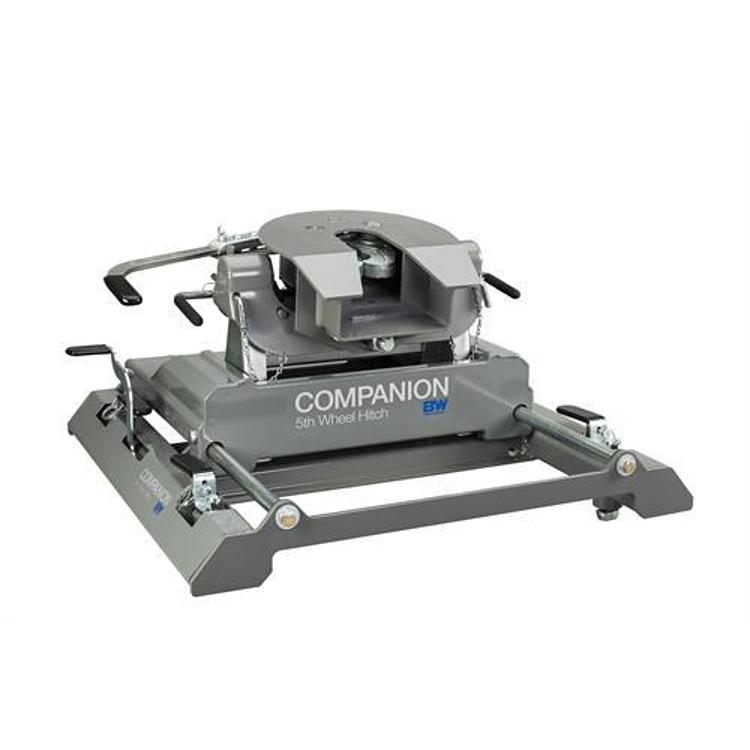

The B&W RVK3770 is a 20K Companion OEM 5th wheel slider hitch kit for towing a fifth-wheel trailer from a short bed truck. It is designed for 16-19 Chevrolet and GMC 2500 and 3500 trucks with a GM factory-installed prep package.
The slider gives twelve inches of slide, which adds room to maneuver a fifth-wheel trailer in a short bed. The two-piece kit has no mounting rails, so it installs and removes without leaving hardware in the bed. Cam action latching, a fully articulating head and 1-inch thick wrap-around jaws are the main working parts. Confirm fit before ordering.
Key features
- Rated for 20,000 lbs trailer weight and 5,000 lbs tongue weight.
- Twelve inches of slide for extra room to maneuver a fifth-wheel trailer.
- Fully articulating head pivots front to back and side to side.
- Cam action latching handle releases easily, including when parked on unlevel sites.
- Removable design with no mounting rails, so the truck bed stays usable for other loads.
- Polyurethane bushings for a quiet, rattle free towing experience.
- Release handles let the bed convert to a level surface.
Setup and removal for a slider
A slider head rides on the rails and locks in place with a cam latch, so smooth latching and full seating matter for every tow. Before hooking up, confirm the head is fully engaged and the latch is closed. Because the design has no mounting rails, the bed is free for other loads when the slider is removed.
Removable sliders need regular care. Keep the latch and pivot points clean, check the polyurethane bushings for cracks or flattening, and lubricate moving parts lightly. Worn bushings can allow rattling and play, which reduces control on rough roads. Inspect the jaws and head for wear every few tows.
- Confirm latch is fully closed before towing
- Clean latch and pivot points regularly
- Inspect polyurethane bushings for wear
Specifications
| Brand | B&W Hitch |
|---|---|
| Part number | RVK3770 |
| UPC | 700008419381 |
| Trailer weight rating | 20,000 lbs |
| Tongue weight rating | 5,000 lbs |
| Slide travel | Twelve inches |
| Vertical adjustment | Three positions from 17″ to 19″ |
| Front to back adjustment | 2″ with two coupler positions |
| Jaw thickness | 1″ |
| Head | Fully articulating |
| Latching | Cam action handle |
| Bushings | Polyurethane |
| Prep package | GM factory-installed prep package |
| Mounting | Two-piece design, no mounting rails |
| Warranty | Limited Lifetime Warranty |
Vehicle fitment
Fit is for 16-19 Chevrolet and GMC 2500 and 3500 trucks with a GM factory-installed prep package. Check your exact truck’s year, model and trim against this before buying.
Confirm the truck’s year, model and trim before buying, and do not assume coverage for any Ram model.
Installation notes
The two-piece design installs and removes without mounting rails, so setup differs from a fixed slider. Confirm the truck has a GM factory-installed prep package before planning the install. Confirm the 20,000 lbs trailer and 5,000 lbs tongue ratings are within your truck’s towing capacity before hooking up.
What’s included
The kit is a two-piece design. Check the individual parts against your installation before starting.
Not included: The GM factory-installed prep package must already be on the truck; it is not part of this kit, and the fifth-wheel trailer is not included.
