Overview
The Brandmotion SummitView Adjustable Rear Vision System with Infrared Camera, part number SUTV-8858, is a backup camera kit for the Jeep Wrangler JK and JL when the vehicle has an aftermarket display. The kit is built to connect to an aftermarket navigation radio or another video monitor.
The camera uses infrared lighting, which Brandmotion describes as the feature that helps with backing up at night. The kit is designed for Wranglers with virtually any wheel, including the spare tire, and it works with both automatic and manual transmission vehicles. Optional parking gridlines are part of the setup.
The kit has a composite (RCA) video connection for the monitor. It also includes an RCA to factory 22-pin connector for customers who want a dealer to program the vehicle. For a factory display, additional parts are needed or the vehicle must be programmed at a dealer, so this version is not a plug-in fit for the factory radio.
Key features
- Infrared camera with lighting for backing up at night
- Designed for virtually any wheel, including the spare tire
- Composite RCA video connection to an aftermarket display
- RCA to factory 22-pin connector for dealer programming
- Optional parking gridlines
- Works with automatic and manual transmissions
Choosing a rear camera setup
A rear camera is most useful when it is matched to the screen it feeds. With an aftermarket display, the monitor’s video input and its mounting position determine how the view is set up, so check those before planning the install. A camera mounted low on the tailgate or spare carrier will show a different angle than one placed higher, and the mounting position affects how much of the trail behind the vehicle is visible.
Trail use adds a few practical concerns. Mud and water can cover the lens quickly, so the camera location should allow for easy cleaning. Routing the cable away from moving parts and sharp edges helps prevent chafing over time. Before drilling or cutting anything, confirm the wiring path and clearance around the spare and rear bumper.
- Confirm the monitor’s video input type before running cable
- Choose a mounting spot that keeps the lens clear of mud
- Route cable away from moving and heat-producing parts
Specifications
| Brand | Brandmotion |
|---|---|
| Part number | SUTV-8858 |
| Camera | Infrared |
| Display type | Aftermarket display with RCA composite input |
| Connector | RCA to factory 22-pin |
| Mounting | Stainless steel Jeep bracket |
| Transmission | Automatic and manual |
| Gridlines | Optional parking gridlines |
Vehicle fitment
It fits Jeep Wrangler JK (2007-2018) and Wrangler JL (2018-2026) models with an aftermarket display.
A factory display needs additional parts or dealer programming, so this kit is not the factory-display version. Brandmotion’s SUTV-8857 is the factory display kit for the Wrangler JK. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The kit connects to the aftermarket monitor through its RCA video input. If a factory display is involved, the RCA to factory 22-pin connector is required and the vehicle must then be programmed at a dealer.
What’s included

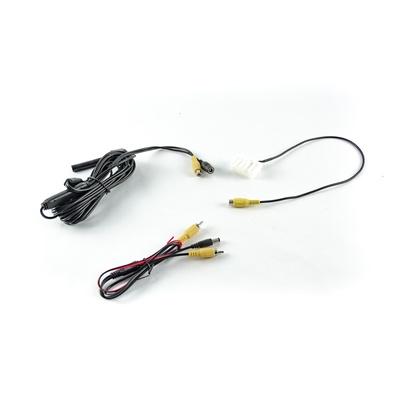

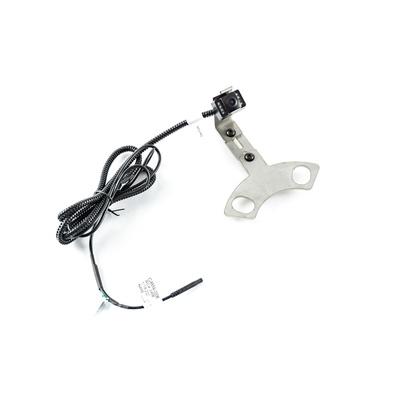

The infrared rear vision camera kit with its stainless steel Jeep bracket, the RCA video connection and the RCA to factory 22-pin connector.
Not included: an aftermarket display monitor, and any additional parts that a factory display requires.
