Overview
The Brandmotion SummitView Adjustable Rear Vision System with Infrared Camera, part number SUTV-8857, is the infrared version of the Brandmotion Wrangler JK backup kit. It is built for the Jeep Wrangler JK with the factory display radio and the factory 6.1-inch display.

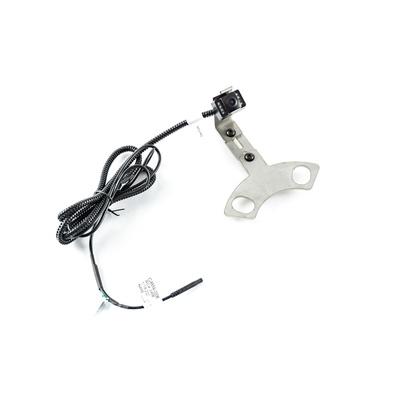

The camera has infrared lighting, which shows the area behind the vehicle at night. A stainless steel bracket holds the camera in place, and the design works with virtually any wheel, including the spare tire. The programming module plugs temporarily into the OBD-II port to flash the radio, and the kit works with automatic and manual transmissions.
Key features
- Infrared camera with lighting for backing up at night
- Stainless steel bracket for the Wrangler JK
- Works with virtually any wheel, including the spare
- Programming module flashes the radio through the OBD-II port
- Works with MyGig navigation and non-navigation radios
- Compatible with automatic and manual transmissions
- Works with optional parking gridlines
Night use and camera care
Infrared lighting helps the camera show the area behind the vehicle when there is little ambient light. Its image is usually black and white, so objects are judged by shape and distance more than color. Use the view as a check rather than a substitute for turning around, especially in unfamiliar lots or on trails with low obstacles.
Keep the lens and the infrared emitter clean, since dust or film can scatter the light and reduce the image. Route the camera cable away from heat and moving parts, and recheck the camera angle if the bracket is bumped. Dry the area around the lens after car washes so moisture does not cloud the view.
- Clean the lens and lighting area regularly
- Check aim after bracket contact
- Watch for glare from nearby lights
Specifications
| Brand | Brandmotion |
|---|---|
| Part number | SUTV-8857 |
| Camera | Infrared |
| Display | Factory 6.1-inch display |
| Radio | MyGig, navigation and non-navigation |
| Programming | Module plugs into the OBD-II port |
| Transmission | Automatic and manual |
| Bracket | Stainless steel |
Vehicle fitment
The kit is made for the Jeep Wrangler JK with the factory display radio, which covers the 2007-2018 Wrangler (JK).
The kit is written for the Wrangler JK and its factory display, so other generations are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes

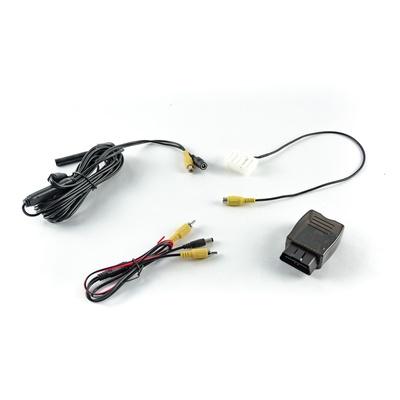

The programming module plugs temporarily into the OBD-II port to flash the radio. No dealer activation is required. The infrared lighting is part of the camera kit.
What’s included

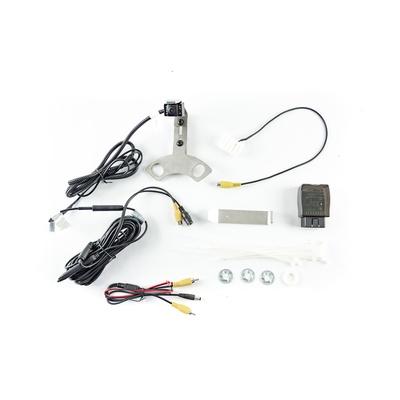

The infrared rear vision camera kit with its stainless steel bracket and programming module.
