Overview

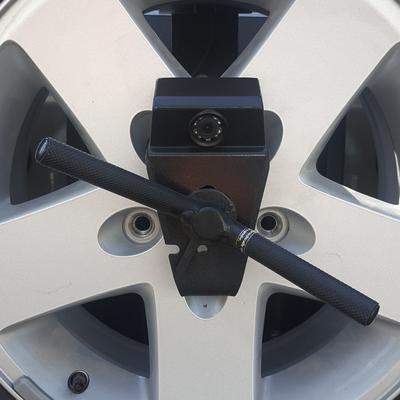

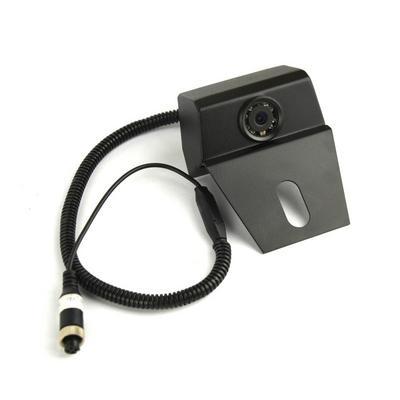

The Brandmotion SummitView Oversized Tire Carrier Camera, part number 9002-8808, is a rear vision camera for Jeep Wrangler tire carriers, designed for use with the Smittybilt Oversize Tire Mount (part number 2743) or a similar aftermarket tire mount. It uses a Sony infrared camera with CCD technology.
The kit is designed for vehicles with an aftermarket display, such as an aftermarket navigation radio or other display monitor. The 9002-6115 Jeep factory display flash programmer can be added for factory display integration.
Check the cable length, resolution and power needs against your installation before starting.
Key features
- Sony infrared camera with CCD technology
- Made to work with the Smittybilt Oversize Tire Mount (2743) or similar aftermarket tire mount
- Designed for vehicles with an aftermarket display
- Optional 9002-6115 flash programmer for factory display integration
- Part of Brandmotion’s Jeep Wrangler Rear Vision System line
Rear camera setup tips

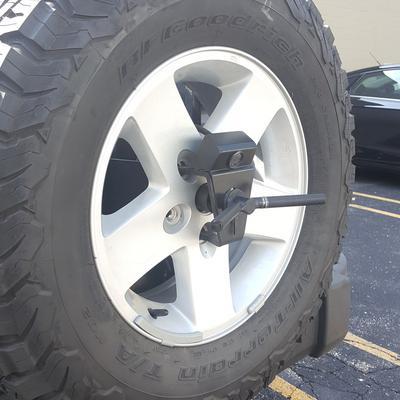

A tire on a rear carrier sits in the middle of the camera view, so placement and angle matter. Set the camera so the tire blocks as little of the picture as possible while still showing the area behind the vehicle. Tire size, carrier position and spare tire weight can change the angle over time, so review the view after any change.

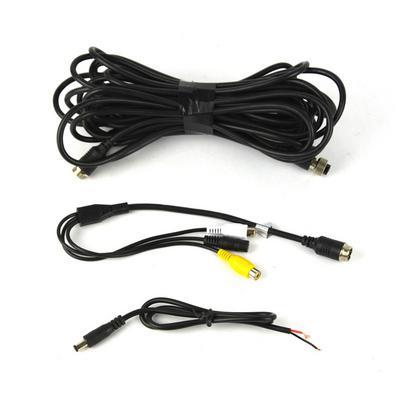

Route the video cable along existing wiring paths, secure it away from hinges and moving parts, and protect the connections from water. Mount the display where it is easy to see from the driver seat, and confirm it works with the camera before finishing the install. Clean the lens when mud or road spray builds up.
- Check the view after changing tire size
- Secure cable runs away from hinges
- Mount the display within easy sight from the driver seat
Specifications
| Brand | Brandmotion |
|---|---|
| Part number | 9002-8808 (also written BRA9002-8808) |
| Product | SummitView Oversized Tire Carrier Camera |
| Camera | Sony infrared, CCD technology |
| Designed for | Smittybilt Oversize Tire Mount (2743) or similar |
| Display | Aftermarket display; optional 9002-6115 programmer for factory display |
| Fit type | Universal Fit |
Vehicle fitment
It is a universal fit for Jeep Wrangler rear vision systems used with a Smittybilt-style tire mount. Confirm your Wrangler’s year, model and trim before ordering.
The Smittybilt carrier attaches to the factory tailgate and holds a tire up to 37 inch and up to 195 lbs. Confirm your tire mount and display before ordering.
Installation notes
Route the camera wiring away from heat and moving parts, and protect the circuit with a correctly rated fuse. Make sure the tire or carrier does not block the camera view, and test the camera before driving.

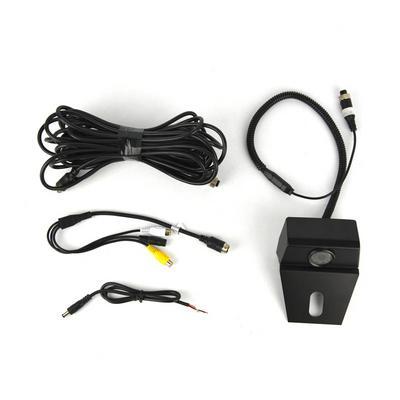

What’s included
Not included: the tire carrier, the aftermarket display and the 9002-6115 flash programmer, which are sold as separate items.
