Overview
The Brandmotion 9002-7611 is a universal dual mount backup camera with infrared night vision and parking gridlines. It mounts either behind a license plate or on a flat vehicle surface. It is universal fit, which means it is not built for one make, model or year.
This is a camera only. It outputs through a standard RCA plug, so it needs a compatible display, either aftermarket or factory. Some factory displays need an interface before the camera will work with them. The infrared lights on both sides of the lens are meant to give the camera strong night vision, and the gridlines help with parking alignment.
Key features

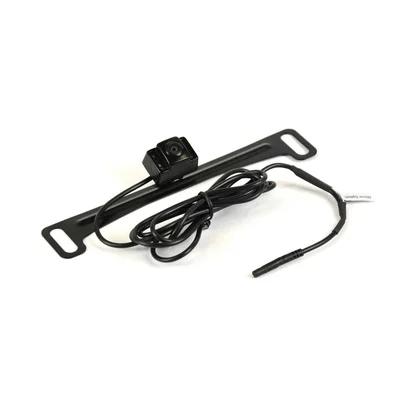

- Dual mounting with a license plate bracket or a lip mount bracket

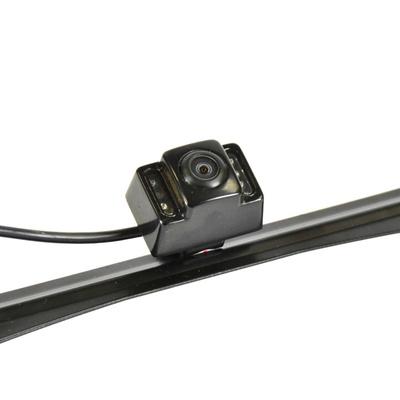

- Infrared lights on both sides of the camera for night vision
- Parking gridlines that can be turned off during installation

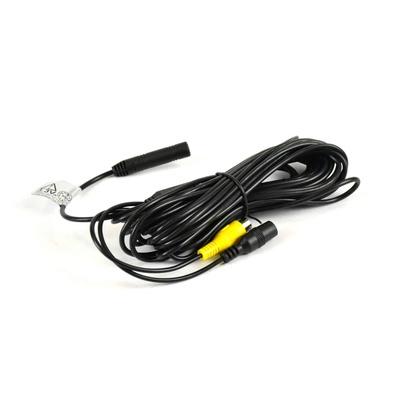

- Standard RCA output for connecting to a display
- Lip mount needs a flat surface at least 1.5 inches wide by 0.75 inches deep
Mounting and wiring tips

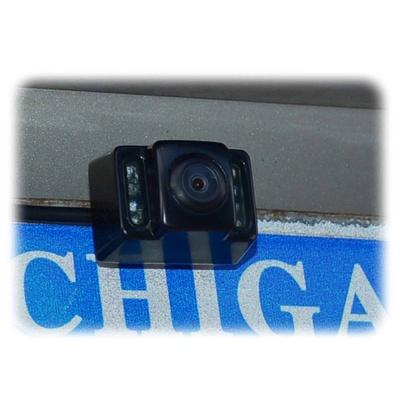

A rear camera’s picture depends heavily on where it sits. Center it on the vehicle so the gridlines line up with the width of the vehicle, and keep the lens clear of plate frames or bumper trim that could block the view. A slightly tilted mount can make the gridlines look off even when the camera works properly.
Night viewing relies on the infrared lights, which work best when the lens is clean. Dust, road spray and salt can cloud the lens over time, so wipe it when you wash the vehicle. If the image looks washed out, check the lights and the lens before adjusting the display settings.
- Mount on the centerline before setting the gridlines
- Clean the lens and infrared lights with a soft cloth
- Route the wiring away from moving parts and sharp edges
Specifications
| Brand | Brandmotion |
|---|---|
| Part number | 9002-7611 |
| Mounting options | License plate bracket; lip mount bracket |
| Lip mount surface | Minimum 1.5 inches wide by 0.75 inches deep |
| Night vision | Infrared lights on both sides of the camera |
| Parking lines | Gridlines, can be turned off during installation |
| Video output | Standard RCA plug |
| Fitment | Universal fit |
Vehicle fitment
The camera is universal fit, so it is not tied to specific years, makes, models or trims. Any vehicle with a license plate can use the license plate bracket. Vehicles without a usable plate position need a flat surface that meets the lip mount’s minimum size of 1.5 inches wide by 0.75 inches deep.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
If you plan to use the parking gridlines, mount the camera on the vehicle’s centerline so the lines match the width of the vehicle. The gridlines can be switched off during installation if you want to set the mount position first. Check that your display has a standard RCA input and that a factory display does not need an interface. Disconnect the vehicle battery before wiring to avoid short circuits.

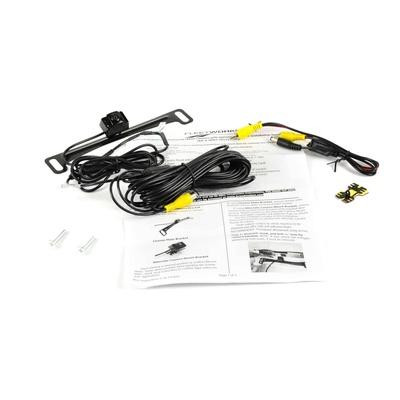

What’s included
The kit includes the camera with infrared lights and the parking gridline function. Its two mounting options are the license plate bracket and the lip mount bracket.
Not included: A display monitor. The camera needs an aftermarket or factory display. Check the harness reach against your mounting position before installing.
