Overview

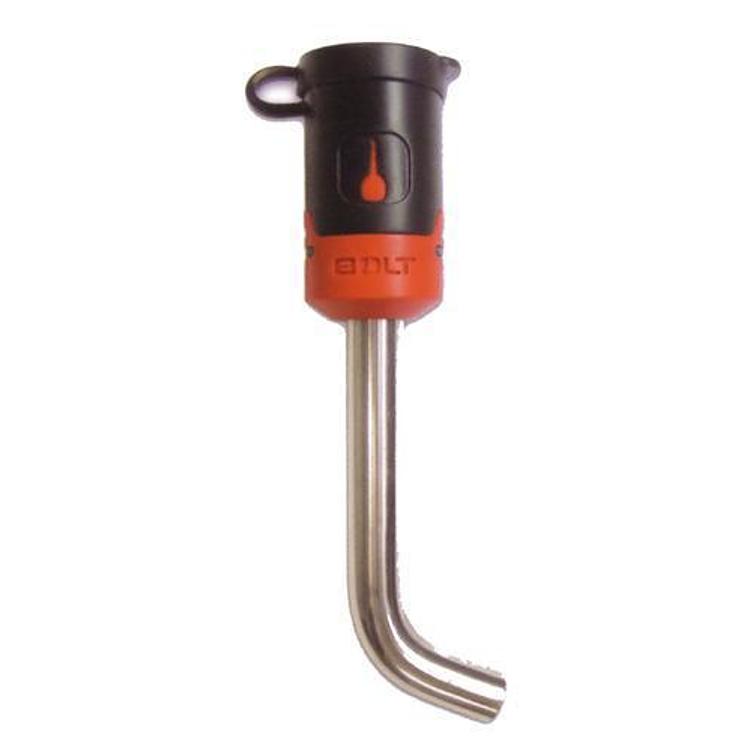

The BOLT Lock 5/8 inch receiver lock, part 7018446, is a hitch pin lock cut in the GM Wide Groove Double Cut profile. It opens with a late model GM key, so it suits owners of late model GM vehicles who want to protect a trailer or hitch accessory.
Its 5/8 inch stainless steel shaft fits class 3 and class 4 hitch receivers. The lock uses a solid zinc core, an automotive grade cylinder and a rugged jacket and cap. It is made in the USA and carries a limited lifetime warranty.
Key features
- Opens with a late model GM key, per the manufacturer

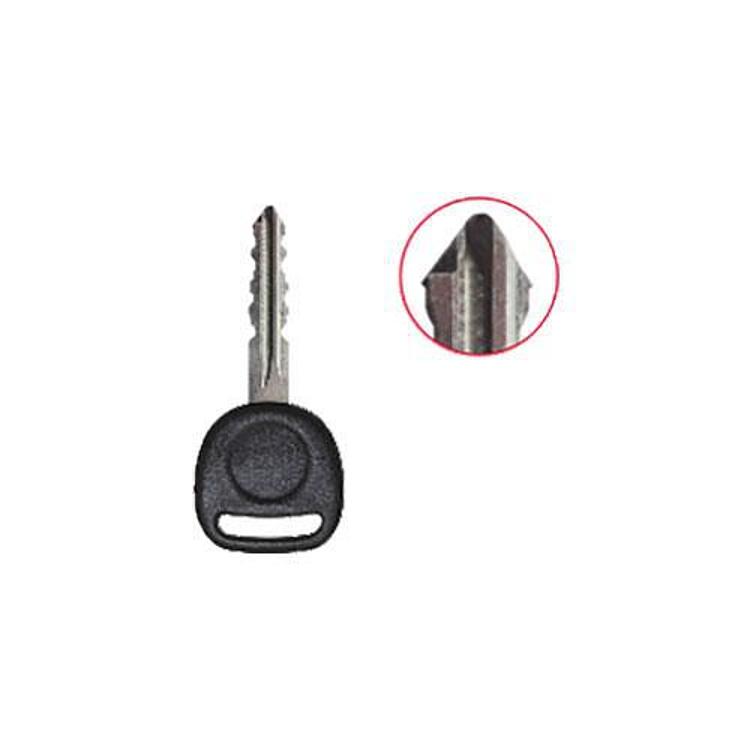

- Wide Groove Double Cut key profile
- 6 plate-tumbler sidebar that resists picking and bumping
- Stainless steel shutter keeps dirt and moisture out
- Rugged jacket and cap
- 5/8 inch shaft for class 3 and class 4 receivers
Protecting a hitch accessory
Hitch accessories such as cargo carriers, bike racks and ball mounts are common targets for theft because they slide in and out easily. A pin lock holds the accessory in place, so it works best when the pin is fully seated in the receiver. Check that the pin head sits flush against the accessory and that the pin does not wobble before you leave the vehicle.
Keys cut to a specific profile can wear over time, so a worn key may not turn smoothly. Store the key separately from the lock and keep a backup in a safe place. If the lock becomes hard to turn, clean it with a dry brush and use dry graphite, not oil that attracts grit.
Specifications
| Brand | BOLT Lock |
|---|---|
| Part number | 7018446 |
| UPC | 652732112362 |
| Key profile | GM Wide Groove Double Cut |
| Key type | Late model GM |
| Shaft diameter | 5/8 inch, stainless steel |
| Hitch fit | Class 3 and class 4 receivers |
| Core | Solid zinc |
| Made in | USA |
| Warranty | Limited lifetime |
Vehicle fitment
The lock is tied to a late model GM key rather than to specific vehicle years or models. Confirm the receiver is class 3 or class 4 before use.
Confirm your vehicle’s year, model and trim before ordering. Match your key to the Wide Groove Double Cut profile before use.
Installation notes
The receiver must be class 3 or class 4 and accept a 5/8 inch pin. The key must match the Wide Groove Double Cut profile.
What’s included
The 5/8 inch BOLT receiver lock in the Wide Groove Double Cut profile.
