Overview

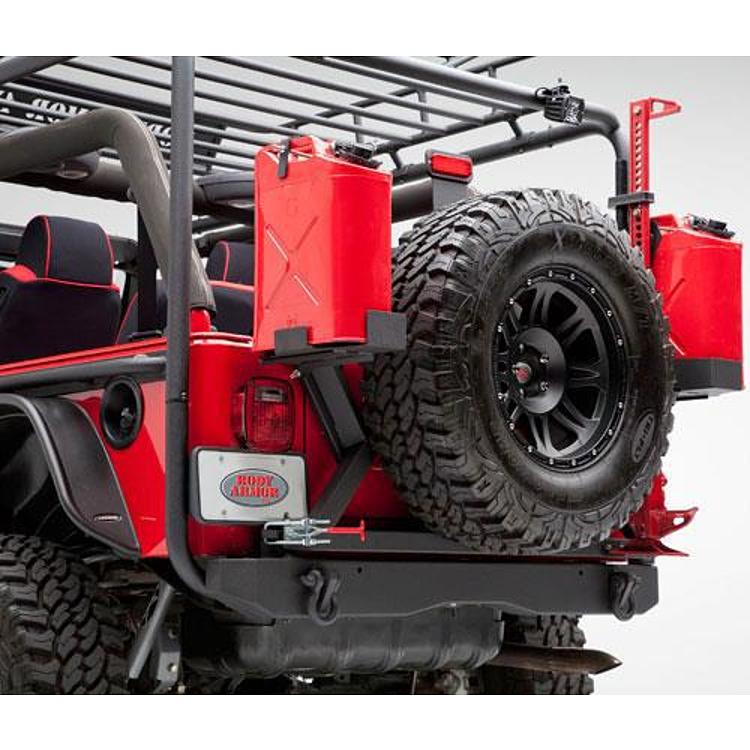

The Body Armor TJ-2994 is a formed rear bumper in black powder coat for the TJ and YJ Jeep Wranglers.
The bumper is a formed rear unit with a notch for the factory hitch, a large step area and a dual process powder coat for corrosion resistance. It is made from 3/16-inch steel plate with reinforced corners for trail use. It pairs with the 5294 swing arm, which uses a dual wheel bearing pivot design and carries a tire up to 37 inches tall.
Key features
- Formed 3/16″ steel plate construction
- Reinforced corners for the trail
- Notched for the OEM hitch
- Large step area
- Bolt-on installation
- Accepts swing arm 5294 with a dual wheel bearing pivot design
- Dual process powder coat for corrosion resistance
- D-ring mount included
Choosing a tire carrier setup
A rear bumper with a swing arm changes the weight and leverage on the back of the vehicle. The carrier moves the spare outward, which affects departure clearance and how the rear suspension moves on rough ground. Plan the tire size and weight before mounting, and check that the spare clears the rear bumper, the tailgate and the trail obstacles you expect to cross.
The swing arm mounts to the bumper pivot, so inspect pivot bushings, bearings and the bumper mount points before adding a tire. Recheck the bolts after the first few trail runs, since a loaded carrier can loosen hardware over time. Keep the hitch area clear if you tow, and remember that the carrier can block access to a trailer hitch ball.
- Plan tire size and weight before mounting
- Check departure clearance with the spare in place
- Inspect pivot bearings and bushings periodically
- Re-check bolts after the first trail runs
Specifications
| Brand | Body Armor 4×4 |
|---|---|
| Part number | TJ-2994 |
| UPC | 859909002307 |
| Product type | Formed rear bumper |
| Position | Rear |
| Material | Formed steel plate, 3/16″ thick |
| Finish | Black dual process powder coat |
| Fitment type | Direct fit, bolt on |
| Swing arm | Accepts 5294 |
| Maximum tire height with swing arm | 37″ |
| D-ring mount | Included |
| Receiver hitch | Notched for the OEM hitch |
Vehicle fitment
The TJ-2994 is made for the 1997–2006 Wrangler TJ and the 1987–1995 Wrangler YJ.
It does not apply to the LJ, JK or JL Wrangler. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Installation is bolt-on. The YJ requires drilling of 2 holes in the vehicle cross member.
The bumper mates to the 5294 swing arm using a dual wheel bearing pivot design, and the swing arm is a separate item. The bumper is notched for the OEM hitch, so the original hitch stays in use.
What’s included
- Formed rear bumper
- D-ring mount
Not included: the 5294 swing arm tire carrier.
