Overview
The Bilstein 6112 Series kit is a front suspension lift with two 60mm shocks, two cold wound springs and two billet spring seats. The manufacturer fitment list covers the 2010-2014 Toyota FJ Cruiser base model.
The kit reuses the factory top mounts and spring isolators. The spring seat is adjustable, which allows vehicle leveling, larger tires and more ground clearance. The 60mm digressive piston increases damping control on and off road.
Key features
- 60mm digressive piston shocks for damping control
- Cold wound springs
- Adjustable billet spring seats for leveling
- Zinc plated dampers and black springs
- Reuses the OEM top mount and spring isolators
Spring seats and rear lift choices
The adjustable billet spring seat is the main setup point on this front kit. Setting the seat height changes the ride height at the front, so check alignment and front bump stop clearance after adjusting. The reused top mounts and spring isolators keep the stock upper structure in place, which helps the install stay close to factory.
A front-only lift leaves the rear at factory height, so the vehicle can sit uneven if the rear is not addressed. Many owners consider a rear shock or matching rear setup when the front is raised, to keep the stance level and the handling balanced. Check the dampers for leaks and listen for unusual noise during routine service.
- Check front alignment after adjusting the spring seats
- Confirm bump stop clearance at full compression
- Inspect top mounts and isolators for cracks or wear
- Plan the rear setup before raising the front
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 46-227294 |
| UPC | 651860714172 |
| Position | Front |
| Suspension type | Strut |
| Shock size | 60mm |
| Finish | Zinc plated dampers, black springs |
| Shocks | Two included |
| Rear lift method | None |
Vehicle fitment
It fits the 2010-2014 Toyota FJ Cruiser base model. It is a direct bolt-on for late-model half-ton trucks and SUVs with factory coilover suspension.
Bilstein recommends a 5160 Series remote reservoir shock for the rear, which is not part of this kit. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The kit reuses the factory top mounts and spring isolators. Set the adjustable spring seat to the height you want.
What’s included

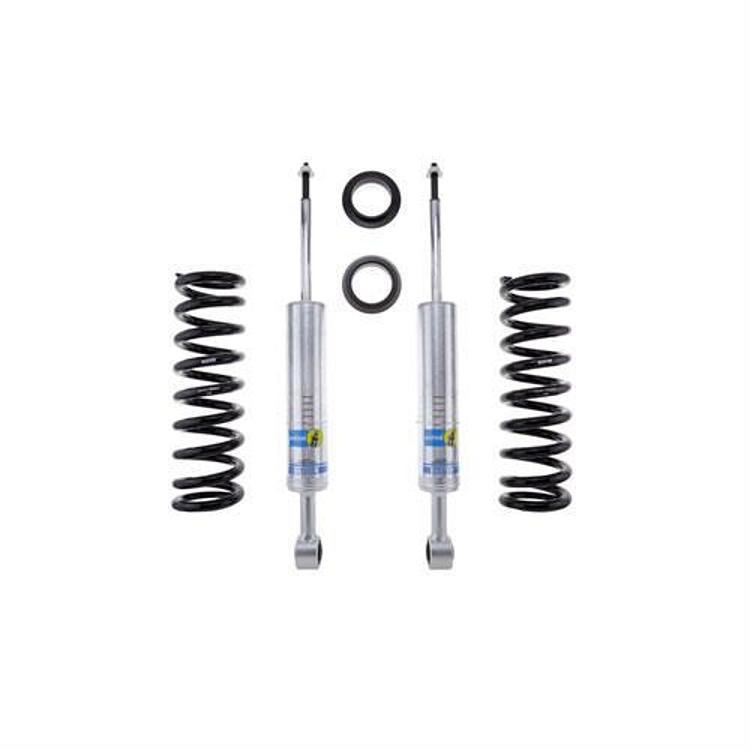

Two 60mm shocks, two cold wound springs and two billet spring seats.
Not included: the rear remote reservoir shock that Bilstein recommends for the rear.
