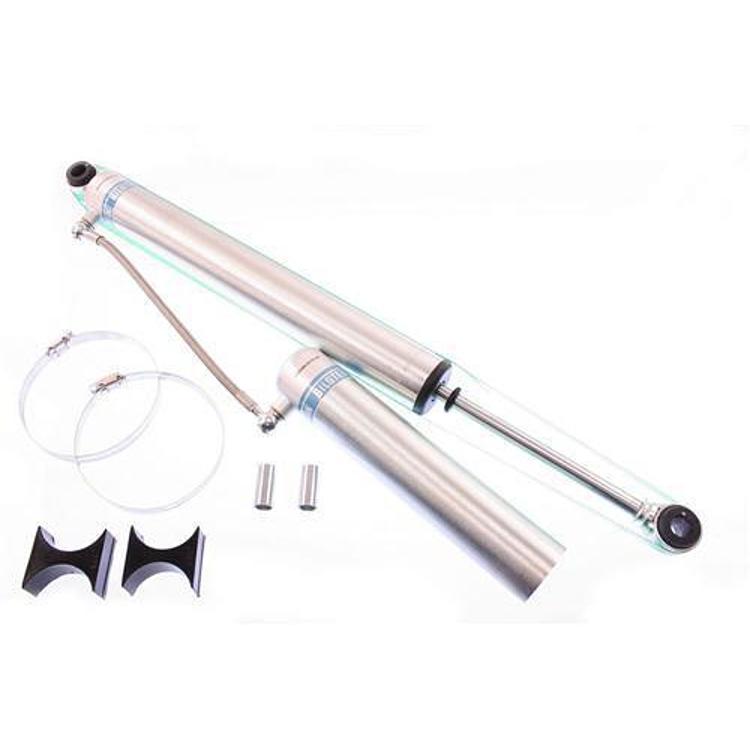

Bilstein 5165 Series Reservoir Shock Absorber – 25-187731

Bilstein

Shop Bilstein Shock Absorbers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Bilstein 5165 Series reservoir shock, part number 25-187731
  • Gas-charged monotube with floating piston inside the reservoir
  • Universal fit design, not tied to one vehicle.
  • Includes reservoir mounting kit and detailed instructions

Description

Overview

The Bilstein 5165 Series reservoir shock, part 25-187731, pairs a gas-charged monotube body with a remote reservoir for trucks and SUVs running custom lift setups. It carries a Universal Fit designation and is not sold for one named vehicle.

Remote reservoir shocks carry more oil away from the damper body, which Bilstein credits with better cooling and damping sensitivity. A floating dividing piston sits in the reservoir, and that layout is meant to permit greater shaft movement.

Key features

  • Monotube construction from Bilstein’s design line
  • Digressive valving for immediate full damping
  • Larger shock oil volume through the remote reservoir
  • Floating piston housed in the reservoir for greater shaft movement
  • Triple-C Technology finish, easy to maintain

Before you install a reservoir shock

A reservoir shock keeps its oil reserve in a separate canister joined to the damper by a hose. That layout helps the damper body stay cooler during repeated trail runs, but only if the reservoir is placed well. Choose a mounting spot where the hose cannot rub against the frame, axle or tires through full suspension travel, and leave room for a smooth bend in the line.

Shocks like this are often changed alongside other lift parts. When suspension height changes, check brake lines, driveshaft angles and bump stops, since longer travel can alter how the shock sits. After the first few drives, inspect the reservoir and hose for scrapes, seepage or loose clamps.

  • Route the hose clear of moving parts
  • Recheck clearance after any suspension change
  • Inspect the body and reservoir for leaks

Specifications

Brand Bilstein
Part number 25-187731
UPC 651860649689
Shock series 5165 Series
Charge Gas charged
Fitment Universal fit
Finish Triple-C Technology

Vehicle fitment

Universal fit is the designation for this shock, so it is not sold for one named vehicle. Being built for lifted trucks and SUVs, it calls for a check of mounting positions and travel against your own suspension before installation.

No single vehicle is named for this shock, so confirm its mounting positions and travel against your own truck or SUV before ordering.

Installation notes

The reservoir mounting kit and the detailed instructions come with the shock. Use the kit to position the reservoir as the instructions describe.

What’s included

Reservoir mounting kit and detailed instructions.

SKU: BIL25-187731 Category:

Specification

Shipping weight 4.62 lbs
Package dimensions 26.80 × 4.20 × 4.20 in
brands

Questions & Answers

Does part 25-187731 use a gas charge or a hydraulic charge?

Gas charged. The shock is gas charged, a detail Bilstein lists in the product specifications, and the reservoir is remote from the body.

What is the Bilstein 5165 Series reservoir shock good for?

It is designed for custom lifted trucks and SUVs that need extra shock oil capacity and wheel travel. The remote reservoir and floating dividing piston are the features Bilstein highlights for those builds.

Is part 25-187731 vehicle specific?

No vehicle is named. Bilstein gives universal fit for this shock, so confirm that its mounting and travel suit your truck or SUV before ordering.

How can I tell if this shock needs replacing?

Look for oil seeping from the damper body or reservoir, a ride that keeps bouncing after bumps, or uneven tire wear. Any of these signs suggests the shock is worn and should be inspected before more off-road use.
