Overview

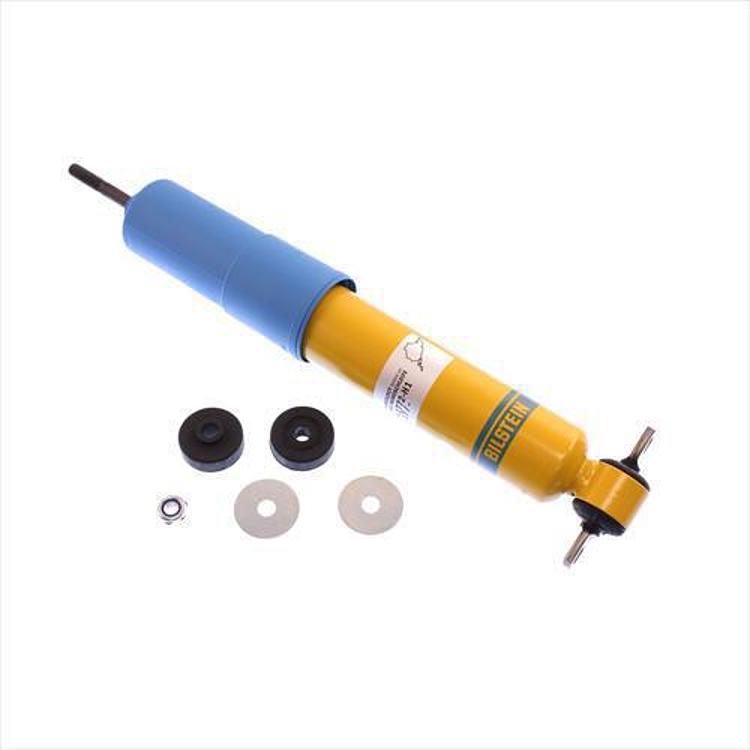

The Bilstein 24-184830 is a front heavy duty 46mm monotube gas-charged shock absorber from the 4600 Series, finished in yellow. It is a direct fit front shock, but no vehicle years, makes or models are confirmed for it, so verify the application against your front suspension before choosing it.
Each shock in this line uses one main tube with a gas charge and a dividing piston that keeps oil and gas apart. The monotube body moves heat out of the oil through the shock body, and the piston lets the oil expand as heat builds, which resists aeration and viscosity loss. Two earlier Bilstein numbers, BILF4-B46-1772-H0 and BILF4-B46-1772-H1, are old part numbers for this shock and help when matching an older unit.
Key features
- Heavy duty construction with a 46mm monotube body
- Patented monotube gas-charged design that transfers heat through the shock body
- Dividing piston allows the oil to expand as temperatures rise
- Seamless monotube tube with a specially extruded wall for consistent thickness and tight tolerances
- Piston head tunes compression and rebound damping separately for ride comfort
- Fewer parts than conventional twin tube shocks
- Yellow finish
Before you buy a front shock
Front shocks control body motion over bumps and during braking, so wear shows up as wallowing, bouncing after dips, or uneven tire edges. A monotube gas-charged design keeps damping steadier as the oil heats on long drives, which matters on steep grades and rough trails. Before buying, match the body size and mounting style to the unit you remove, and check that the front position suits your build.
New front shocks are often installed in pairs so both sides damp the same way. Bushings, mounting nuts and dust boots should be inspected at the same time, since a worn bushing can make a new shock feel loose. Pressurized shocks should never be heated or punctured, and a worn unit should be replaced rather than opened.
- Look for fluid on the outside of the body
- Inspect upper and lower mounting bushings
- Tighten fasteners to the vehicle’s service values
- Keep the old unit until the new one is confirmed to fit
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-184830 |
| UPC | 651860612447 |
| Shock series | 4600 Series |
| Position | Front |
| Type | Monotube, 46mm, heavy duty |
| Charge | Gas charged |
| Finish | Yellow |
| Old part numbers | BILF4-B46-1772-H0; BILF4-B46-1772-H1 |
| Lift height | w/0 in. Lift/Drop |
| Fitment type | Direct Fit |
Vehicle fitment
No make, model or year range is confirmed for part number 24-184830. It is a Direct Fit front shock, so match the year, model and trim to your vehicle before buying.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Compare the old part numbers printed on the removed shock with BILF4-B46-1772-H0 and BILF4-B46-1772-H1 to confirm the match before installing. Gas-charged shocks are pressurized, so have a qualified technician handle any service rather than opening the body.
What’s included
Check the package contents against your installation before starting.
