Overview

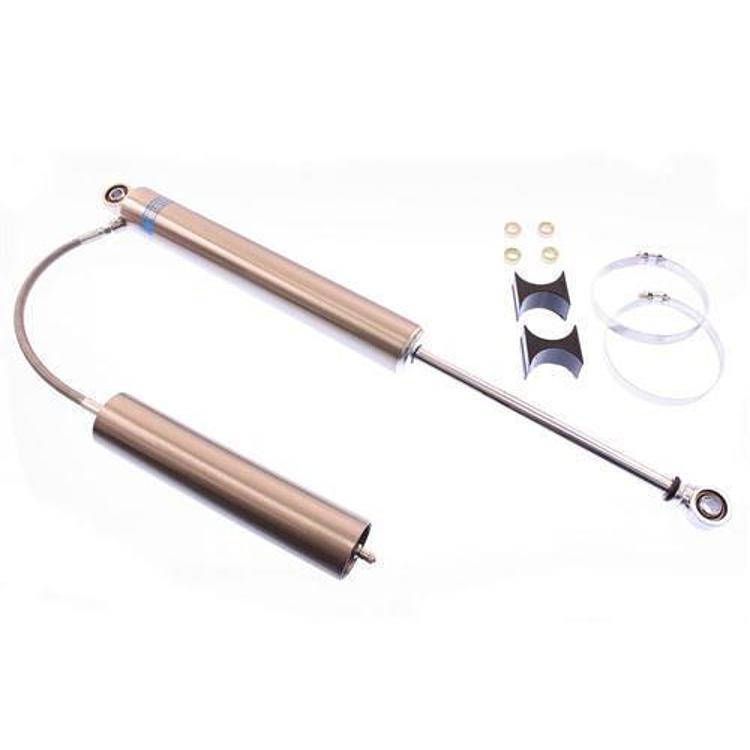

The Bilstein AK7112R04 is a 7100 Series reservoir shock absorber with a gas charged monotube body. Bilstein designed the 7100 for stock trucks, prerunner trucks, limited race buggy applications, sand buggies and other recreational off-road vehicles.
A Schrader valve with dividing piston and a high-flow piston make up the internals. The shock can be completely rebuilt by its owner, so the body can be serviced over time.
Key features
- Gas charged monotube construction
- Self-adjusting deflecting disc valving
- High-flow piston that reduces harshness
- Choice of valvings
- Schrader valve with dividing piston
- Owner rebuildable for a long service life
- Remote reservoir version
Setting up a remote reservoir
A remote reservoir gives the gas charge more room to work, which helps the shock resist fade on long runs. Give it a mounting position that keeps it away from tires, brackets and the exhaust, and make sure it can be reached for a quick check. The hose should run with gentle bends so it does not kink when the suspension compresses.
Pick clamps and brackets made for the reservoir body rather than improvised fittings. After the first few trail runs, re-check every fastener and clamp, then recheck after each hard session. Keep the reservoir off the ground where rocks and brush can strike it, and plan for a different hose route if the setup changes.
- Clear space from tires and exhaust
- Gentle bends in the hose
- Recheck fasteners after early runs
Specifications
| Brand | Bilstein |
|---|---|
| Part number | AK7112R04 |
| UPC | 790832511002 |
| Shock series | 7100 Series |
| Shock body diameter | 2 in |
| Series travel options | 8 in, 10 in, 12 in, 14 in |
| Charge | Gas charged |
| Reservoir | Remote reservoir (named in title) |
Vehicle fitment
The part carries a universal fit label. Shock absorbers are matched to specific vehicles by travel length and mounting points, so check both against your vehicle before installing this part.
Each 7100 Series part number may be made for a different travel length, so compare the exact part number with your application. Confirm your vehicle’s year, model and trim before ordering.
What’s included
Mounting hardware, mounts and reservoir hoses should be checked against your installation before starting.
