Overview

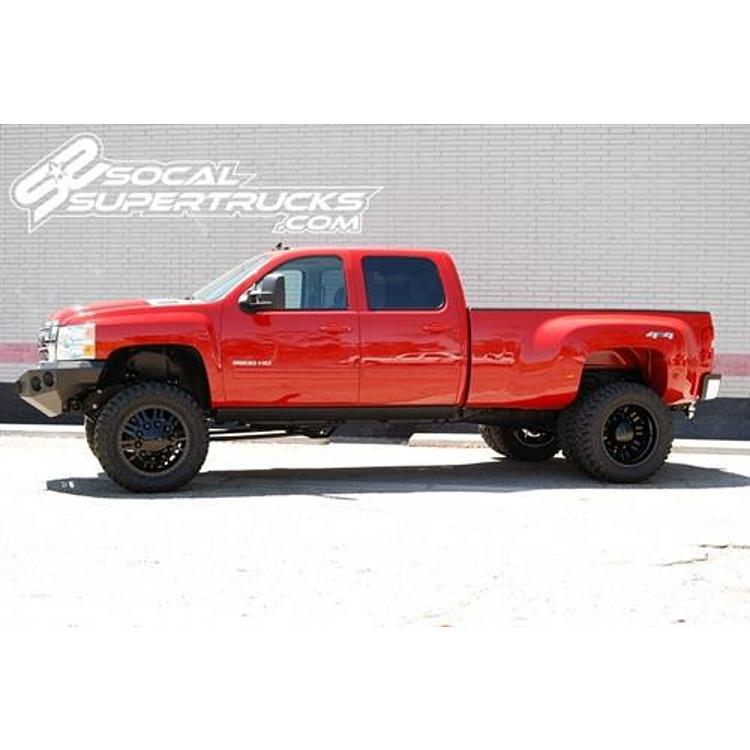

The California Super Trucks CSK-C3-15-1 is a 6 to 8-inch bolt-on lift kit with knuckle suspension at the front and lift blocks and U-bolts at the rear. The manufacturer fitment list covers the 2011-2015 Chevrolet Silverado 2500 HD, the 2011-2013 Silverado 3500 HD, the 2011-2015 GMC Sierra 2500 HD and the 2011-2013 Sierra 3500 HD, in the models shown.
The kit uses knuckle suspension at the front and lift blocks with U-bolts at the rear. It is designed for durability and gives a lift height range of 7 inches and up. Shocks are not included.
Key features
- 6 to 8-inch lift
- Knuckle suspension design at the front
- Lift blocks and U-bolts at the rear
- Bolt-on installation
Choosing the right shocks
A lift of this size changes how the suspension loads and rebounds, so the shocks on a lifted truck do more work than stock units. Shocks are a separate purchase with this kit, so choosing them is part of planning the build. Pick a shock length that suits the finished ride height, since a shock that is too short can bind at full droop and one that is too long can run out of stroke.
Rear lift blocks and U-bolts raise the axle, which changes driveshaft angle and pinion angle. Owners often also look at the rear brake lines, the sway bar links and the driveshaft once the truck is up, because stock parts may not have enough length. Make these checks before the first highway drive.
- Measure shock length at full extension and compression
- Recheck U-bolt torque after the first few drives
- Inspect ball joints and tie rod ends at regular service
- Confirm the brake hose has slack at full suspension travel
Specifications
| Brand | California Super Trucks |
|---|---|
| Part number | CSK-C3-15-1 |
| UPC | 70000678317 |
| Lift height range | 7 inches and up |
| Suspension type | Knuckle |
| Rear lift method | Lift blocks and U-bolts |
| Shocks | Not included |
Vehicle fitment
The manufacturer fitment list covers the 2011-2015 Chevrolet Silverado 2500 HD and Sierra 2500 HD, and the 2011-2013 Silverado 3500 HD and Sierra 3500 HD, in the models shown on the list.
It fits the listed 2500 HD and 3500 HD models. Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
A lift of this size changes the caster, the driveline angles and the brake line length, so the alignment and driveline should be checked after installation.
What’s included

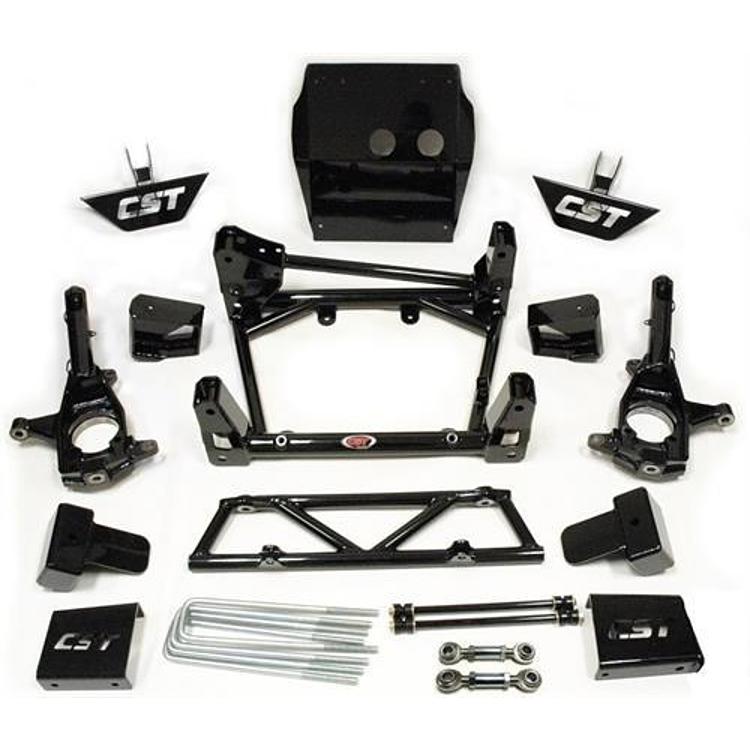

The knuckle suspension components and the rear lift blocks and U-bolts for the listed trucks.
Not included: shock absorbers.
