Bilstein 5100 vs Fox 2.0 Performance is the shock question most owners of a lifted truck or Jeep end up asking, because both lines do the same job: a direct-fit, gas-charged monotube valved for a 2 to 6 in. lift that still rides well on pavement. One is a zinc-plated 46 mm steel monotube with a 14 mm shaft and no reservoir; the other is a 2.0 in. aluminum body with a 5/8 in. hard-chrome shaft and, on about a third of its part numbers, an external reservoir. The figures below come from the specification tables and fitment of 174 Bilstein 5100 and 243 Fox 2.0 Performance shock listings in this catalog.
Key takeaways
- Both are gas-charged monotubes: the Bilstein 5100 in a 46 mm zinc-plated steel body with a 14 mm shaft, the Fox 2.0 Performance in a 2.0 in. aluminum body with a 5/8 in. shaft.
- No listed Bilstein 5100 has a reservoir. 89 of the 243 Fox listings do, which is the main reason to choose Fox for long, fast or hot trail days.
- Travel is close: median 9.0 in. for the Bilstein, 9.6 in. for the Fox, and both lines top out near 14 in.
- Lift ratings are stated on 128 of 174 Bilstein listings but only 42 of 243 Fox listings, so with Fox you often match lengths yourself.
What the two shock lines are
Bilstein 5100 Series
The Bilstein 5100 is a 46 mm monotube in a zinc-plated steel body with a 14 mm shaft (11 mm on five part numbers). The rows describe a smooth, non-coilover body, and 92 listings say a boot is included. 28 of the 174 are the ride height adjustable version: snap-ring grooves let the factory coil seat higher, which lifts the front of an independent-front-suspension truck without a spacer, 0 to 2.5 in. on the 2009 to 2013 F-150 front. The lift rating is printed on most part numbers, from “0 to 1 in.” up to 6 to 8 in. fronts for the Ram 2500 and 3500.
Fox 2.0 Performance Series
The Fox Racing Shox 2.0 Performance Series is the entry point of Fox’s off-road range: a 2.0 in. aluminum body, a 5/8 in. hard-chrome shaft and a black and aluminum finish. The basic version is the IFP shock, where an internal floating piston separates the oil from a nitrogen charge inside the body. 89 of the 243 listings are reservoir shocks, with that nitrogen chamber in a second cylinder on a hose or piggyback mount, and five of those add a CD or DSC compression adjuster. Fox also lists 24 snap-ring coil-overs such as the 2005 to 2015 Tacoma front. No listing mentions a boot.
Bilstein 5100 vs Fox 2.0 Performance: specifications side by side
The table reads straight from the Specifications rows on the product pages. Length and travel figures are the range eight out of ten listings fall into, with the median in parentheses.
| Specification | Bilstein 5100 Series | Fox 2.0 Performance Series |
|---|---|---|
| Body | 46 mm steel monotube, zinc plated, smooth body | 2.0 in. aluminum smooth body, black and aluminum finish |
| Shaft | 14 mm (11 mm on five part numbers) | 5/8 in. hard chrome |
| Gas chamber | Inside the monotube; no reservoir on any listing | IFP with nitrogen chamber, or an external or remote reservoir (89 of 243 listings) |
| Adjustment | Ride height only: snap-ring fronts (28 listings), typically 0 to 2.5 in. | Snap-ring coil-over fronts (24 listings); CD or DSC compression adjuster on five reservoir listings |
| Upper mount | Stem (47 listings), eye or bar pin | Stem top or eyelet |
| Lower mount | Eye 12 to 20 mm, bar pin or clevis | Eyelet (one bar pin) |
| Boot | Included on 92 listings | Not listed |
| Collapsed length | 12.8 to 18.3 in. (15.6) | 13.7 to 19.7 in. (15.7) |
| Extended length | 18.9 to 28.8 in. (24.6) | 20.8 to 30.5 in. (25.2) |
| Travel | 5.4 to 11.2 in. (9.0); longest 14.15 in. | 5.4 to 11.6 in. (9.6); longest 14.1 in. |
| Lift rating stated | 128 of 174 listings, 0 to 1 in. up to 6 to 8 in. | 42 of 243 listings, 0 to 1 in. up to 6.5 to 8 in.; the rest vary by part number |
The product data states neither valving curve nor oil volume, so confirm ride-quality claims for your exact part number.
What the differences mean on the trail

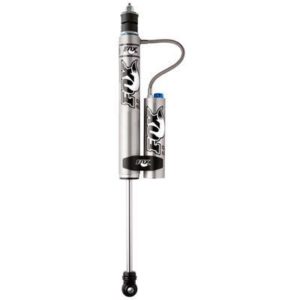

Heat is the real separator. A shock turns wheel movement into heat in its oil, and once the oil thins, damping fades. The Bilstein 5100 keeps all of its oil and gas in one 46 mm steel tube, which is fine for a day of rock crawling or a graded forest road. The Fox reservoir models, such as the 985-24-039 front for a 2.5 to 4 in. lifted Wrangler JK or the 985-24-150 rear for the 2017 and newer Super Duty, carry more oil and move the nitrogen chamber out of the body. On washboard, whoops and long fast dirt, that is where the two lines pull apart.
Travel is not the separator. For a 4 in. lifted Wrangler TJ, the Bilstein 24-187190 front runs 16.51 to 26.5 in. with 9.99 in. of travel; the Fox IFP for the same Jeeps at 3 to 5 in., the 985-24-087, runs 16.65 to 27.25 in. with 10.6 in. On rocks, the 5100 has a boot over the shaft; the Fox shaft is exposed and a remote reservoir hose has to be clamped away from the tire.
What the differences mean on the highway
Both lines are sold as direct-fit shocks for trucks that still commute, and the mounts prove it: stem tops, OEM-size eyes and bar pins, not rod ends. On pavement the 5100 asks for less attention, because the boot keeps grit off the shaft seal and the plated steel body shrugs off road salt. For a truck lifted 2 in. or less, the 5100 lineup is deeper: 18 listings cover the Ford F-150 alone against 7 from Fox. The reverse holds for the newest Jeeps: 12 Fox listings each for the Wrangler JL and Gladiator against 5 and 3 from Bilstein, including matched front sets by lift height.
Vehicles both shock lines cover
The catalog holds vehicle fitment for 117 of the Bilstein 5100 shocks and 94 of the Fox 2.0 Performance shocks. These are the eight make and model pairs with the most part numbers from both brands.
| Vehicle | Model years on file | Bilstein 5100 part numbers | Fox 2.0 Performance part numbers |
|---|---|---|---|
| Ford F-250 Super Duty | 1999 to 2022 | 11 | 18 |
| Ford F-350 Super Duty | 1999 to 2022 | 11 | 18 |
| Ford F-150 | 1980 to 2022 | 18 | 7 |
| Jeep Wrangler JL | 2018 to 2022 | 5 | 12 |
| Chevrolet Silverado 2500 HD | 2001 to 2022 | 5 | 10 |
| Jeep Gladiator | 2020 to 2022 | 3 | 12 |
| Chevrolet Silverado 3500 HD | 2007 to 2022 | 5 | 10 |
| GMC Sierra 1500 | 1999 to 2022 | 9 | 6 |
Just below them sit the GMC Sierra HD trucks, the Ram 2500, the Wrangler TJ and JK, the Grand Cherokee ZJ and WJ and the Toyota Tacoma. Bilstein covers 112 make and model pairs in all, Fox 65. Pick your vehicle in the selector bar and the shock absorbers category narrows to the part numbers listed for it.
How to pick by lift height
Buy the shock for the lift you have. Too short and it tops out before the axle does, which breaks mounts; too long and it bottoms before the bump stop does, which destroys the shock. Use the stated lift rating where there is one and the lengths where there is not.
Stock to 2 in.: leveling kits and small spacer lifts
This is the home ground of the Bilstein 5100. Dozens of part numbers are rated “0 to 1 in.” or “0 to 2 in.”, and the ride height adjustable fronts replace the factory strut and add up to 2.5 in. with the stock coil. The Fox answer is an IFP shock rated 0 to 1 or 0 to 1.5 in., or the snap-ring coil-over on Tacoma, 4Runner and GM 1500 fronts, listed at 1 to 2 in.
2 to 4 in.: the typical suspension lift
Here both lines are strong and the decision is heat versus simplicity. For a Wrangler JK at 3.5 to 5 in., Bilstein lists the 24-186872 front at 16.41 to 27.56 in. with 11.15 in. of travel; Fox lists the 985-24-039 reservoir front for 2.5 to 4 in. at 15.70 to 25.80 in. with 10.10 in. of stroke. Match the lengths to the shock chart of your lift; a complete lift kit often ships with its own shocks to compare against.
4 in. and up
Above 4 in. the stated ratings thin out on both sides and the lengths do the talking. Bilstein lists fronts for the F-250 and F-350 Super Duty at 6 in. of lift, for the 1980 to 1996 F-150 and Bronco at 4 in. and for the Ram HD trucks at 6 to 8 in.; Fox lists rears for the 2017 and newer Super Duty at 4 to 6 in. with 13.6 in. of stroke and Wrangler JK reservoir shocks rated 6.5 to 8 in. with up to 14.1 in. of travel. At these heights a reservoir earns its keep, because a tall truck on big tires works its shocks harder. The coil springs or leaf packs set the height and the shock is bought to suit them; brake lines and the steering stabilizer follow the same rule.
Common mistakes
- Buying by brand and lift height only. Two part numbers for the same truck and lift can differ by 2 in. in extended length. Check the lengths against the shock chart of your lift kit.
- Ordering a reservoir shock for a mount with no room for the reservoir. Measure the clearance to the tire and frame first.
- Treating the ride height adjustable 5100 as a lift kit. It reseats the stock coil; pair it with a matching rear block or add-a-leaf.
- Skipping the boot. Most 5100s include one; the Fox listings do not mention one, so a shock boot is a separate decision on a rig that sees mud.
Frequently asked questions
Is the Bilstein 5100 or the Fox 2.0 Performance better for a lifted truck?
Neither wins across the board. The Bilstein 5100 is a 46 mm zinc-plated steel monotube with a 14 mm shaft, a boot on most part numbers and a stated lift rating on 128 of 174 listings: the easy choice for a leveled or 2 to 4 in. lifted truck at moderate trail speeds. The Fox 2.0 Performance is a 2.0 in. aluminum shock with a 5/8 in. shaft, and 89 of its 243 listings carry a reservoir that keeps damping consistent on long, fast or hot runs.
Does the Bilstein 5100 have a remote reservoir?
No. Every Bilstein 5100 listing that fills in the reservoir field says “No” or “None”; the oil and gas charge stay inside the 46 mm monotube body. The Fox 2.0 Performance Series lists reservoir versions on 89 of its 243 part numbers, five of them with a CD or DSC compression adjuster.
How much travel do the Bilstein 5100 and Fox 2.0 shocks have?
About the same. Eight out of ten Bilstein 5100 listings fall between 5.4 and 11.2 in. of travel (median 9.0 in., longest 14.15 in.); eight out of ten Fox 2.0 Performance listings fall between 5.4 and 11.6 in. (median 9.6 in., longest 14.1 in.). Travel varies by part number, so compare collapsed and extended lengths for your vehicle and lift.
Which vehicles do both Bilstein 5100 and Fox 2.0 Performance shocks fit?
The biggest overlap is the Ford F-250 and F-350 Super Duty (11 Bilstein and 18 Fox part numbers each), the Ford F-150 (18 and 7), the Jeep Wrangler JL (5 and 12), the Chevrolet Silverado 2500 HD and 3500 HD (5 and 10 each), the Jeep Gladiator (3 and 12) and the GMC Sierra 1500 (9 and 6). The Wrangler TJ and JK, Grand Cherokee ZJ and WJ, Ram 2500 and Toyota Tacoma follow.
Start with your vehicle in the selector bar, then compare part numbers in the shock absorbers category, the Bilstein brand page and the Fox Racing Shox brand page. If the lift is still to come, the lift kits, suspension and shocks department groups the kits, springs and shocks that have to agree on length.
