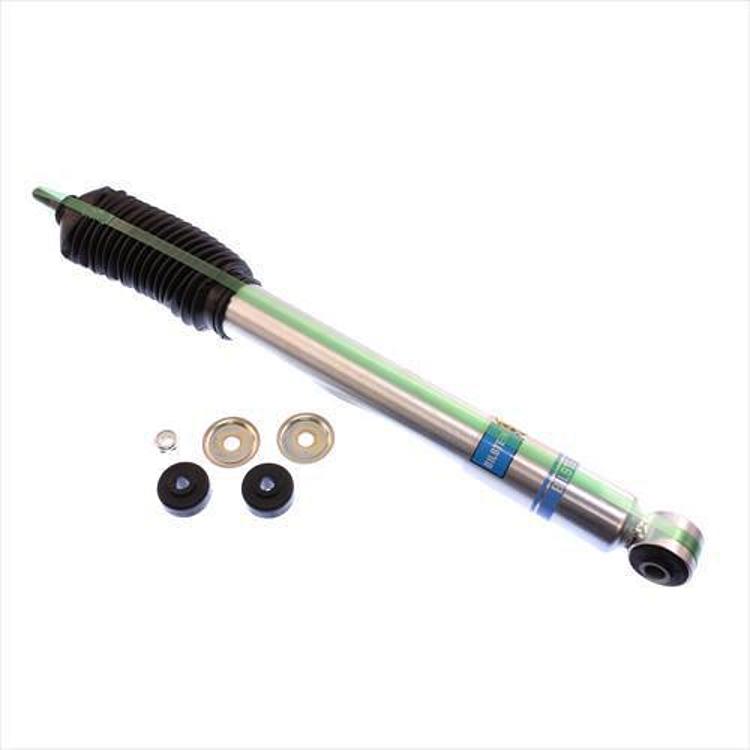

Bilstein 5100 Series Shock Absorber – 24-186681

Bilstein

$104.47In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 17, 2026 4:50 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Front 5100 Series monotube gas charged shock, part 24-186681
  • Fits 2005–2016 Ford F-250 and F-350 Super Duty in many trims
  • Lift rating w/6 in. lift
  • Lower 14.4mm eye mount, upper stem mount, 10.28 in. travel

Description

Overview

The Bilstein 24-186681 is a front 5100 Series monotube gas charged shock absorber with a 10.28 in. travel length and a rated lift of w/6 in. lift. It fits 2005 to 2016 Ford F-250 Super Duty and F-350 Super Duty trucks and is built for lifted heavy-duty applications.

The 5100 Series is built for lifted trucks, Jeeps and prerunners. Bilstein describes its single tube, high gas pressure body as delivering consistent, fade-free damping and long life, and the non-coilover body uses the stock OEM mounting configuration of the lift kits it was designed for.

Key features

  • Monotube gas pressure construction
  • Self-adjusting deflecting disc valving
  • High-flow piston designed to reduce harshness.
  • Independent rebound and compression tuning
  • Larger working piston area for damping control
  • Superior control for large diameter tires, per the brand
  • Boot included

Heavy-duty considerations

Super Duty trucks carry heavier front axles and larger tires, so the front shock carries more load on every bump and braking event. A monotube gas charged body keeps the damping oil under pressure, which supports steady control when the truck is loaded or towing. Because these trucks often run aftermarket wheels and tires, verify that the shock’s travel and mounting angle leave enough room for the new setup.

Front shocks on heavy trucks should be checked along with the steering and suspension joints, since worn ball joints and tie rod ends make the front end feel loose even with new shocks. Inspect the eye and stem mounts for cracks, and keep the boot clean so dirt does not work into the seal. Swap front shocks in pairs so both sides damp the same way.

  • Check the upper stem mount and lower eye for wear
  • Inspect steering joints before installing new shocks
  • Confirm lift height with the truck’s suspension before ordering

Specifications

Brand Bilstein
Part number 24-186681
UPC 651860492988
Series 5100 Series
Position Front
Collapsed length 16.33 in.
Extended length 26.61 in.
Travel length 10.28 in.
Lower mount Eye, 14.4mm
Upper mount Stem
Shaft diameter 14mm
Body design 46mm ID smooth body, non-coilover
Internal design Monotube
Gas charged Yes
Reservoir No
Finish Zinc plated
Boot Included
Lift height rating w/6 in. lift
Fitment type Direct fit

Vehicle fitment

It fits the 2005 to 2016 Ford F-250 Super Duty and F-350 Super Duty in the Cabela’s, FX4, Harley-Davidson Edition, King Ranch, Lariat, Platinum, XL and XLT trims.

The F-150 and the 1980 to 1996 Bronco are not on this list, and neither are model years outside 2005 to 2016. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The rated lift is w/6 in. lift, so check that your truck’s suspension height falls in that range before fitting this front shock. Support the front end on stands and do not rely on a jack alone.

What’s included

One Bilstein 5100 Series front shock absorber with its boot.

SKU: BIL24-186681 Category:

Specification

Shipping weight 4.63 lbs
Package dimensions 26.80 × 3.00 × 3.00 in
brands

Fitment

VehicleYearsTrims
Ford F-250 Super Duty2005–2016Cabela's, FX4, Harley-Davidson Edition, King Ranch, Lariat, Platinum, XL, XLT
Ford F-350 Super Duty2005–2016Cabela's, FX4, Harley-Davidson Edition, King Ranch, Lariat, Platinum, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Bilstein 24-186681 fit a Ford F-250 Super Duty?

Yes. It fits the 2005 to 2016 Ford F-250 Super Duty in several trims, including XL, XLT, Lariat and King Ranch. Confirm your year, model and trim before ordering.

What lift rating is this front shock for?

The rated lift is w/6 in. lift. Compare that with your truck's current suspension height before fitting it, since this is the only lift rating for the shock.

What is the travel length of the 24-186681?

The travel length is 10.28 in., with a collapsed length of 16.33 in. and an extended length of 26.61 in. The lower mount is a 14.4mm eye and the upper mount is a stem.

How long do front shocks typically last?

Service life depends on mileage, terrain and load. Heavy towing and rough roads shorten it, while mostly paved use stretches it. Replace a shock when it leaks, feels bouncy, or shows uneven tire wear.
